Component Locations - Lancer: Grounding

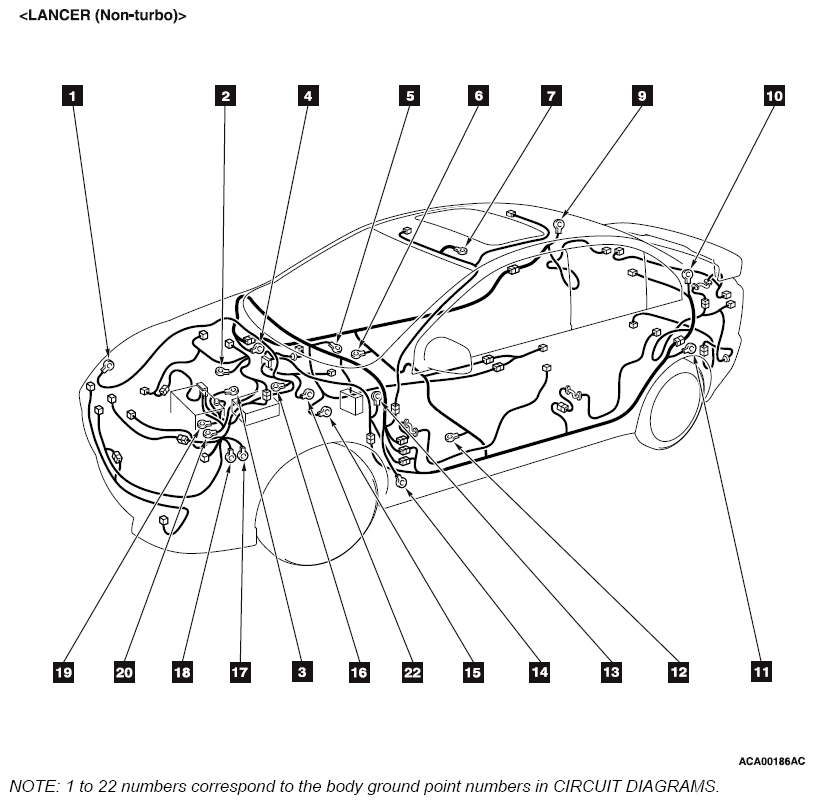

Fig 1: Identifying Grounding Components - Lancer (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

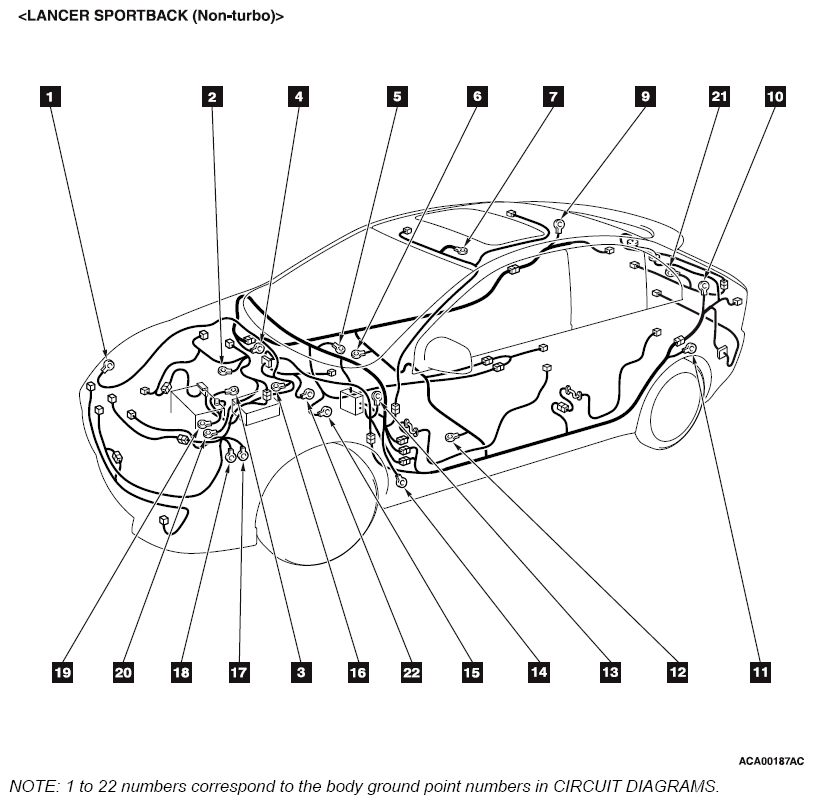

Fig 2: Identifying Grounding Components - Lancer Sportback (Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

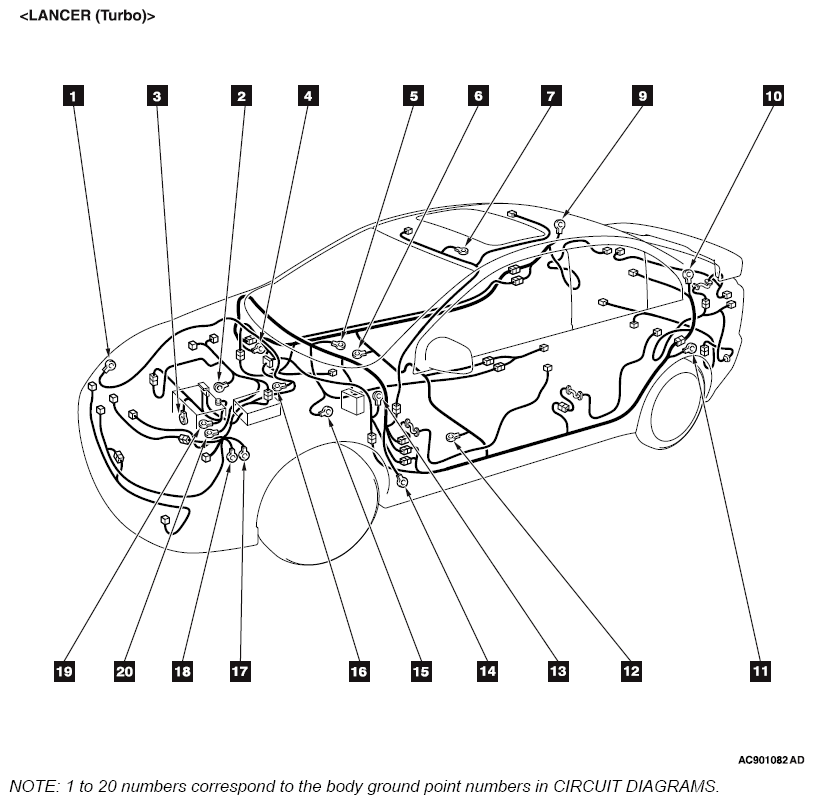

Fig 3: Identifying Grounding Components - Lancer (Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

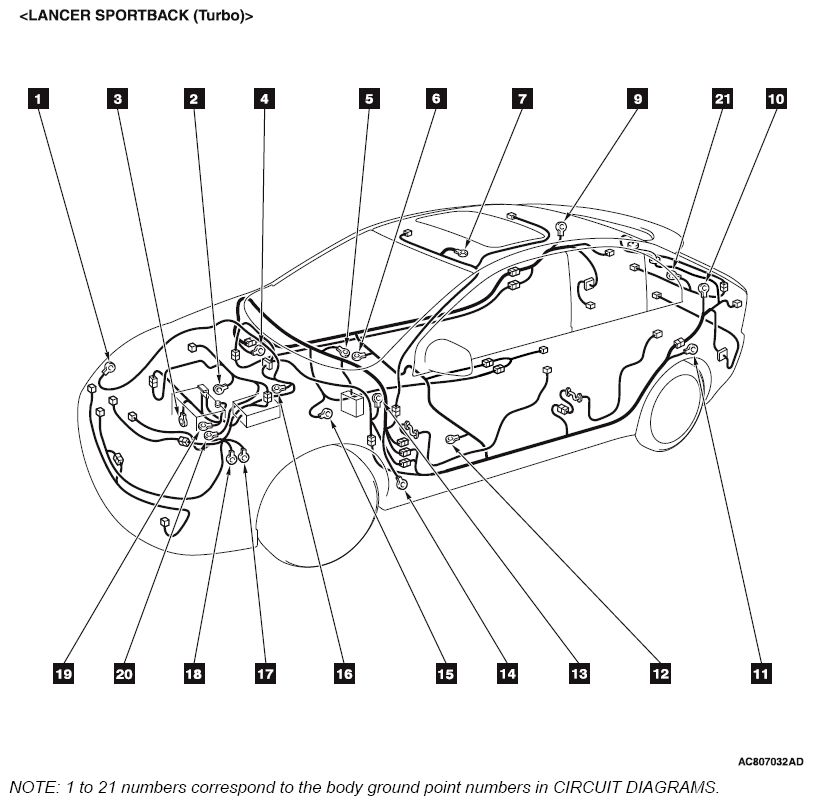

Fig 4: Identifying Grounding Components - Lancer Sportback (Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

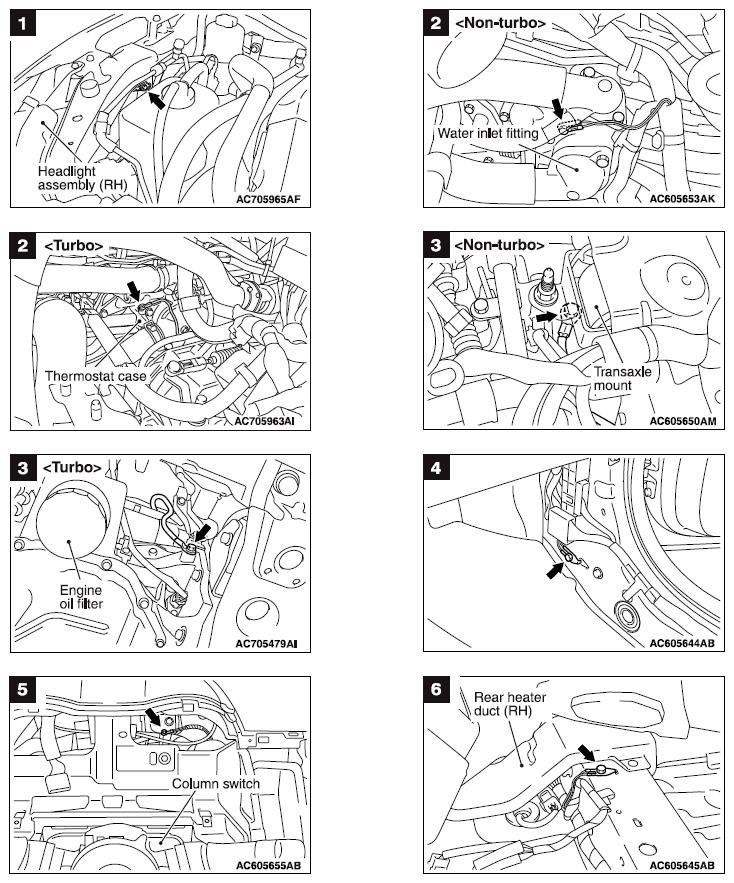

Fig 5: Grounding Components Location (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

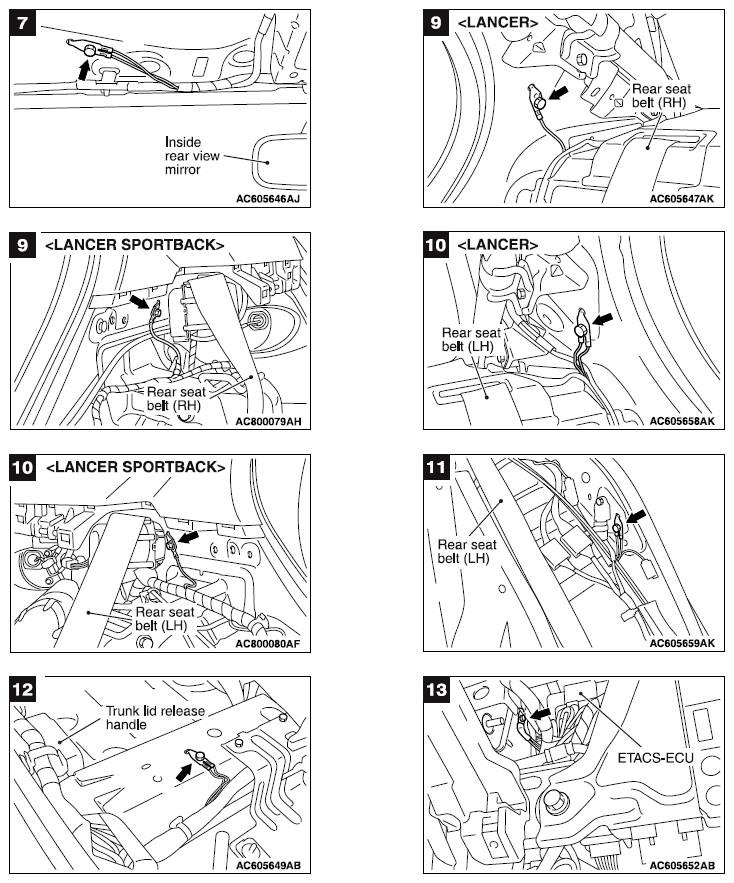

Fig 6: Grounding Components Location (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

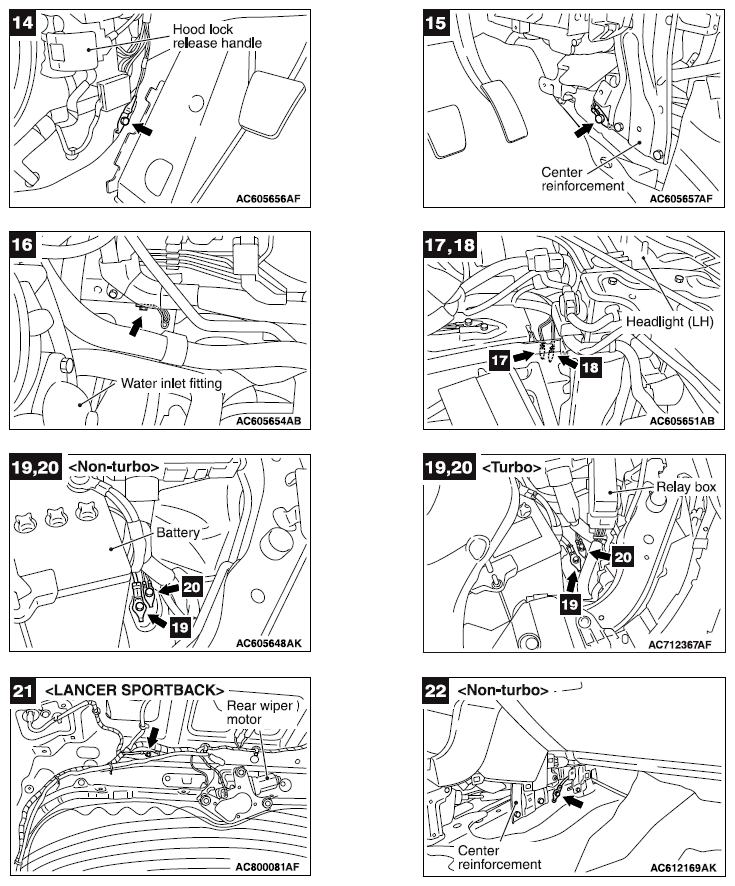

Fig 7: Grounding Components Location (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
