Component Locations - Lancer: Relay

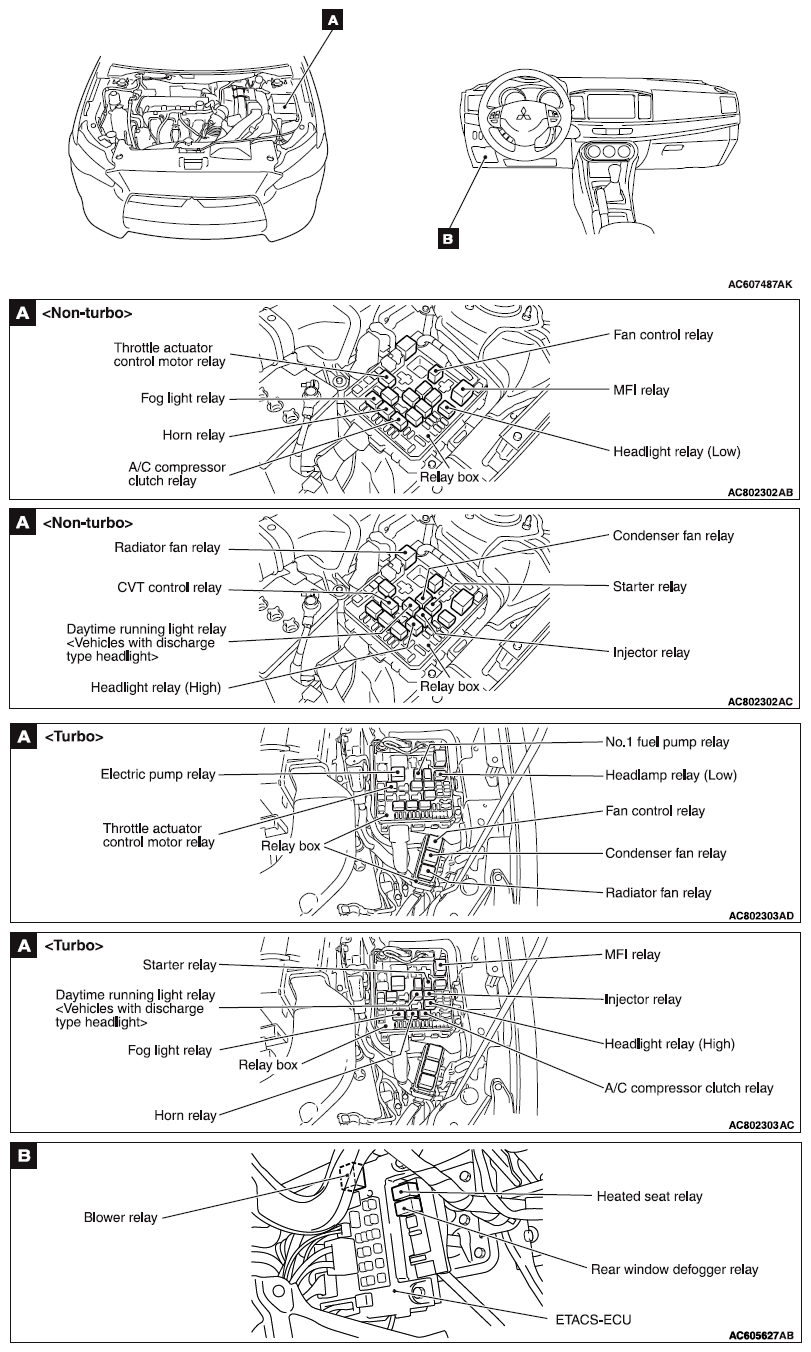

RELAY IDENTIFICATION
| Name | Symbol |
|---|---|
| A/C compressor clutch relay | A |
| Blower relay | B |
| Condenser fan relay | A |
| CVT control relay | A |
| Daytime running light relay < Vehicles with discharge type headlight > | A |
| Electric pump relay < Turbo > | A |
| Fan control relay | A |
| Fog light relay | A |
| Headlight relay (High) | A |
| Headlight relay (Low) | A |
| Heated seat relay | B |
| Horn relay | A |
| Injector relay | A |
| MFI relay | A |
| No. 1 fuel pump relay < Turbo > | A |
| Radiator fan relay | A |
| Rear window defogger relay | B |
| Starter relay | A |
| Throttle actuator control motor relay | A |
