Removal And Installation

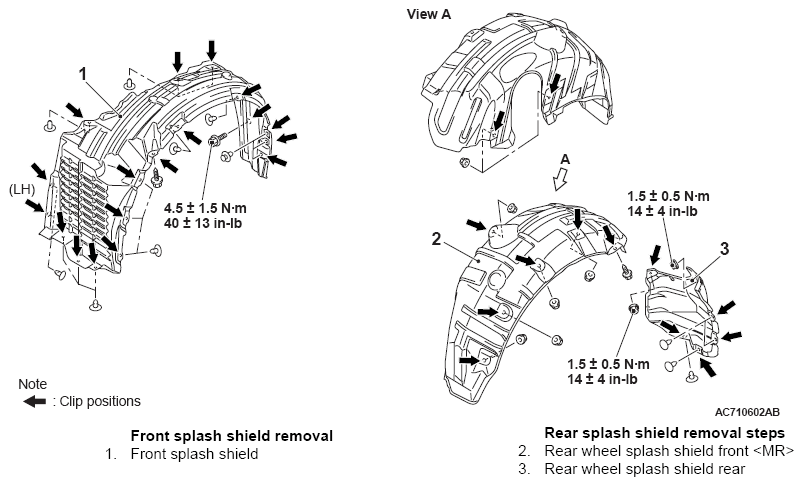

Fig 1: Removing/Installing Splash Shield With Torque Specification
G09651046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
