Ignition Switch Continuity Check

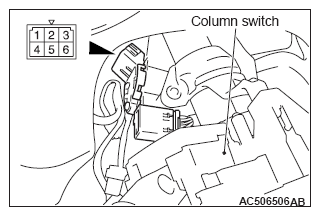

With the ignition switch mounted to the vehicle, disconnect and check the ignition switch connection connector.
| Ignition key position | Terminal number | Normal condition |
|---|---|---|
| LOCK | 1 - 2, 1 - 4, 1 - 5, 1 - 6 | No continuity |
| ACC | 1 - 6 | Continuity exists (Less than 2 ohms) |
| ON | 1 - 2 - 4 - 6 | Continuity exists (Less than 2 ohms) |
| START | 1 - 2 - 5 | Continuity exists (Less than 2 ohms) |
