Key Reminder Switch Inspection

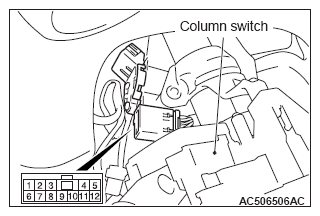

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
| Key status |
Terminal number |
Normal condition |
| Key removed |
2 - 3 |
Continuity exists (Less than 2 ohms) |
| Key inserted |
2 - 3 |
No continuity |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
