Removal And Installation: Notes

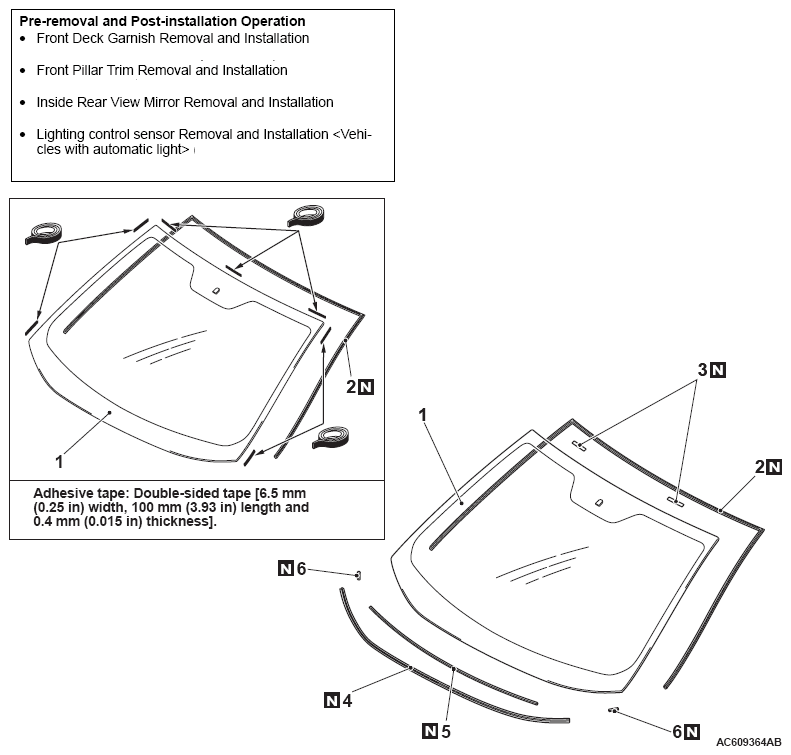

Fig 1: Window Glass Adhesive Tape Applying Area (1 Of 2)
G09651051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Window Glass Adhesive Tape Applying Area (2 Of 2)
G09651052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
