Removal And Installation: Notes

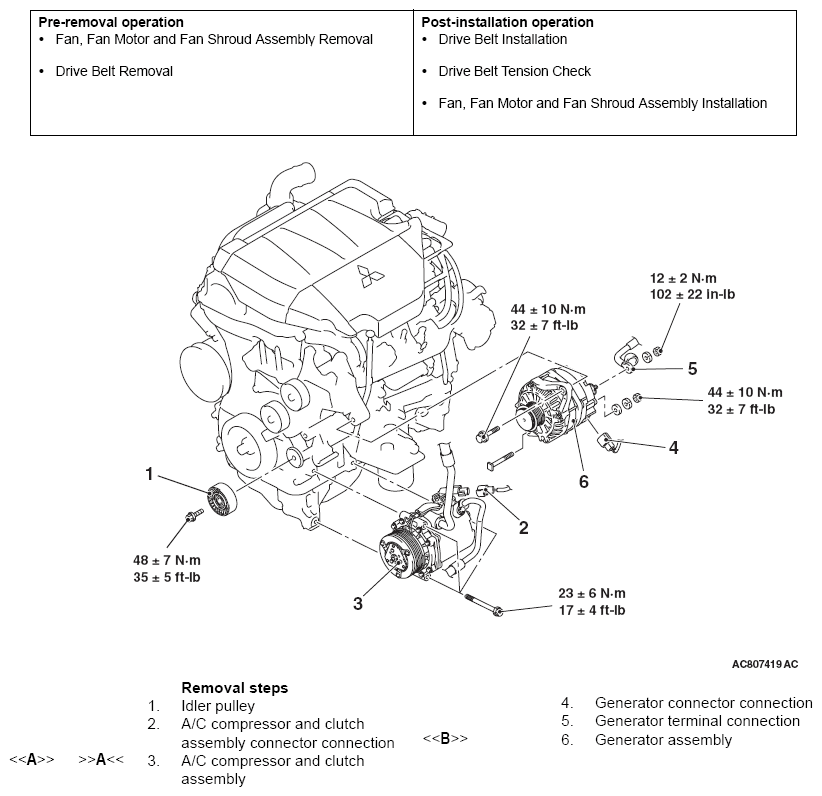

Fig 1: Removing/Installing Generator Assembly With Torque Specifications
G09640986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
