Measurement Method

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

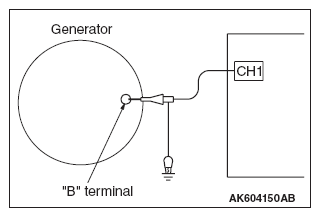

Fig 1: Checking Charging System Wave Pattern
G09640979Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
