Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

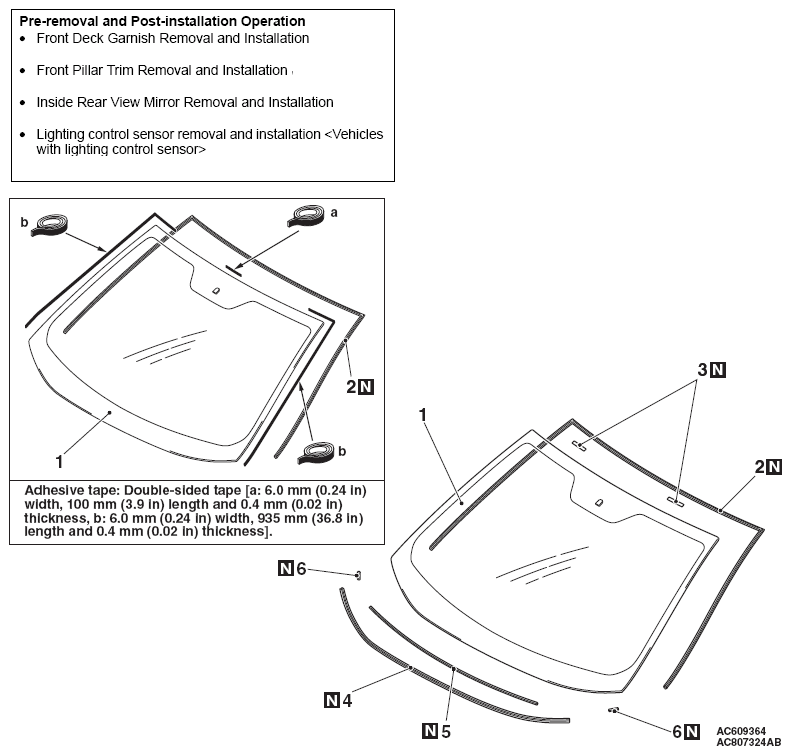

Fig 1: Removing/Installing Windshield Adhesive Tape Applying Area (1 Of 2)
G09627515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

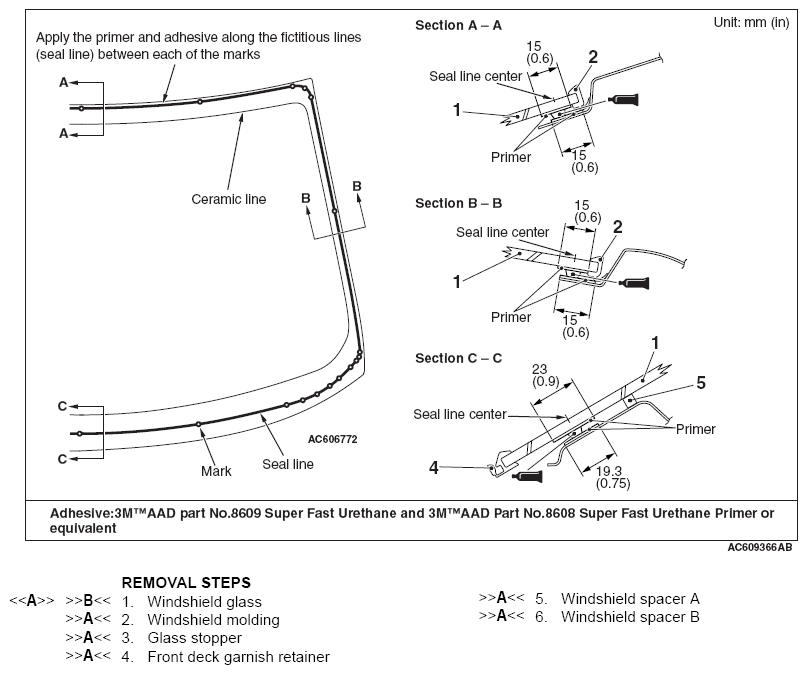

Fig 2: Removing/Installing Windshield Adhesive Tape Applying Area (2 Of 2)
G09627516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
