Clip Position

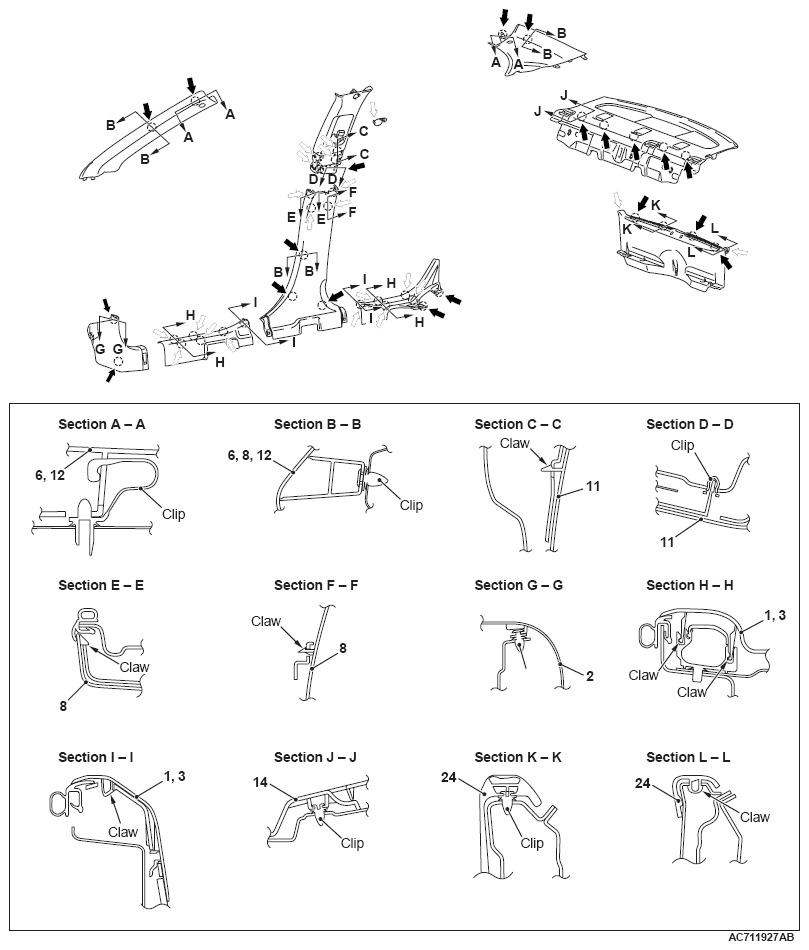

Fig 1: Clip Installation Positions
G09651710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Each number in the illustration indicates a part number.
