Disassembly And Assembly

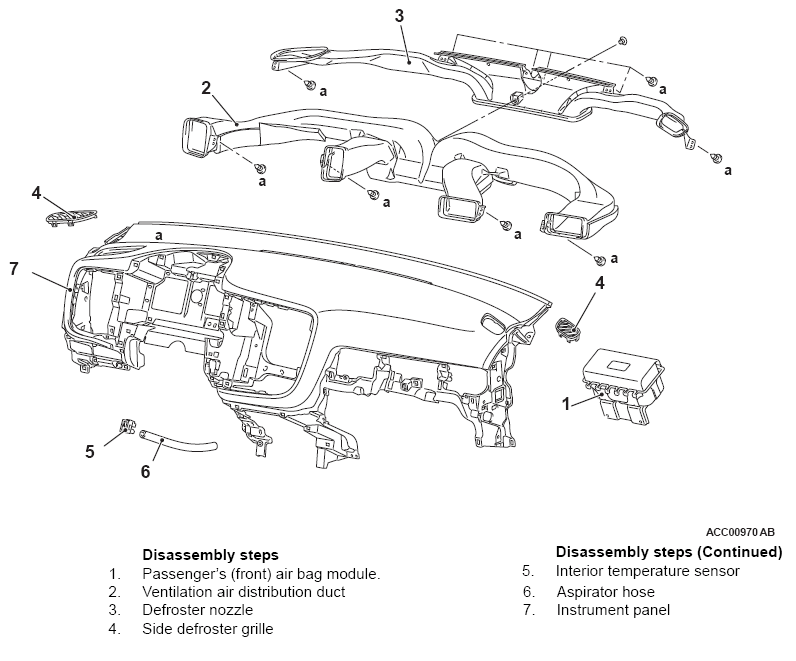

Fig 1: Disassembling/Assembling Instrument Panel Assembly Components
G10224967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
