Inspection Terminal
Name
Symbol
Data link connector
B
Spare connector (for rear display)
C
Spare connector (for switch box)
D
Spare connector (for trailer harness)
A

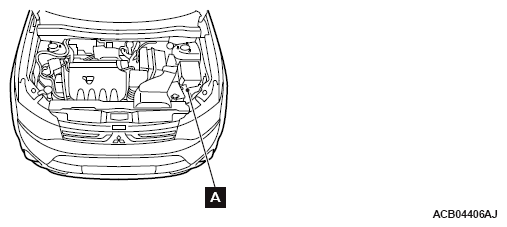

Fig 1: Inspection Terminal Components Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

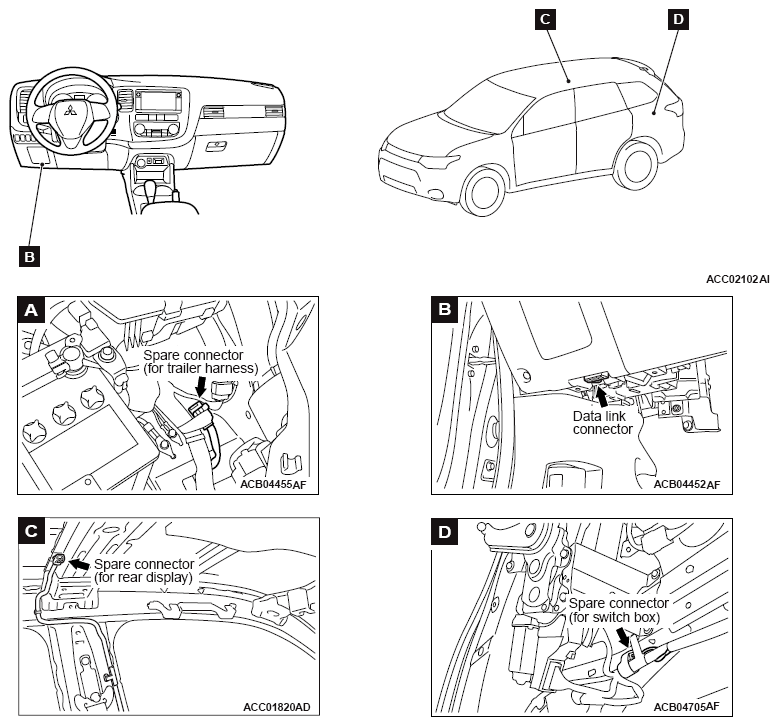

Fig 2: Inspection Terminal Components Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
