Control Unit

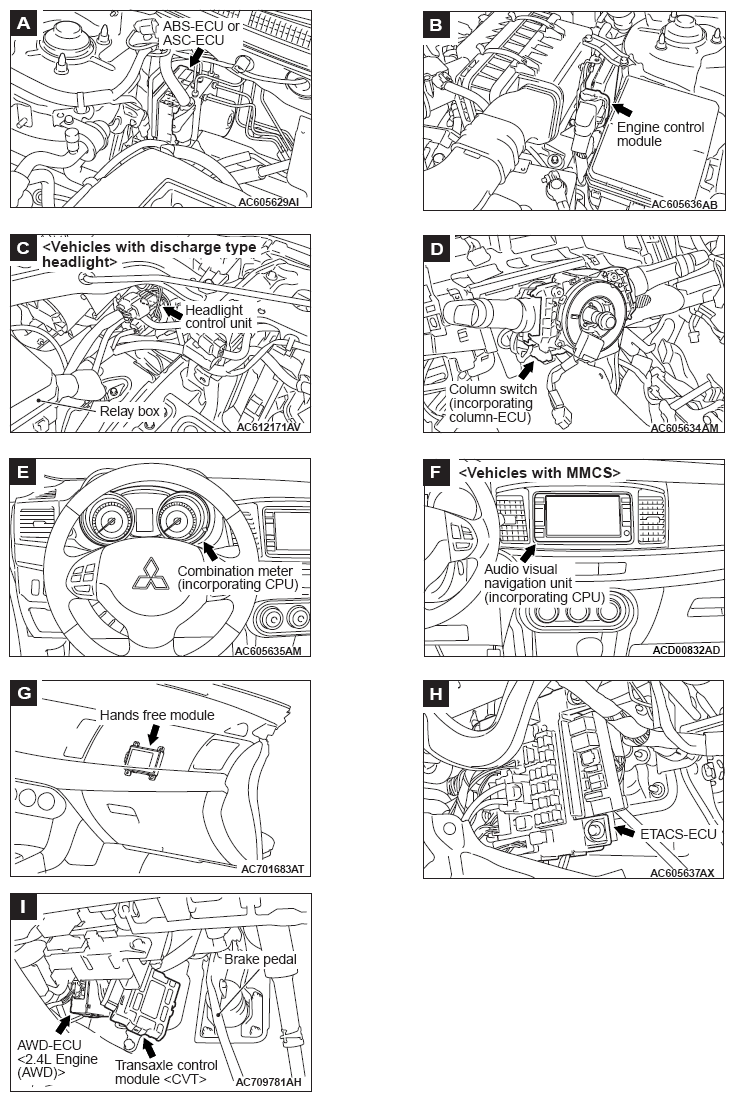

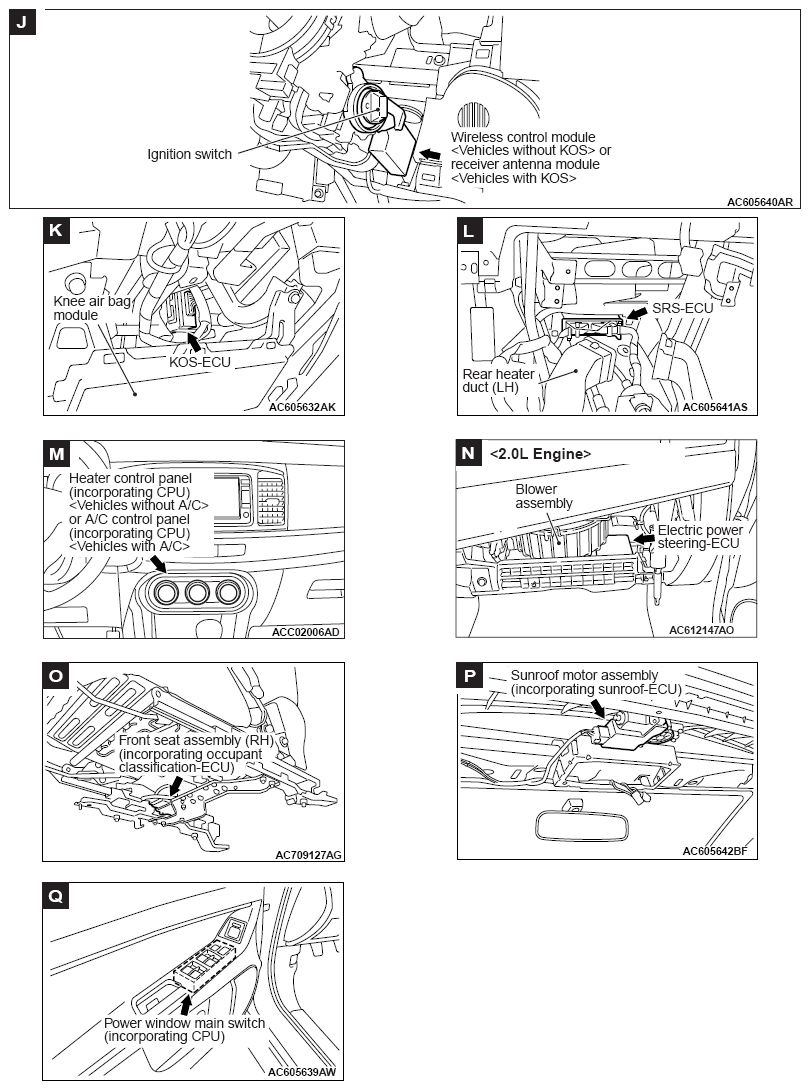

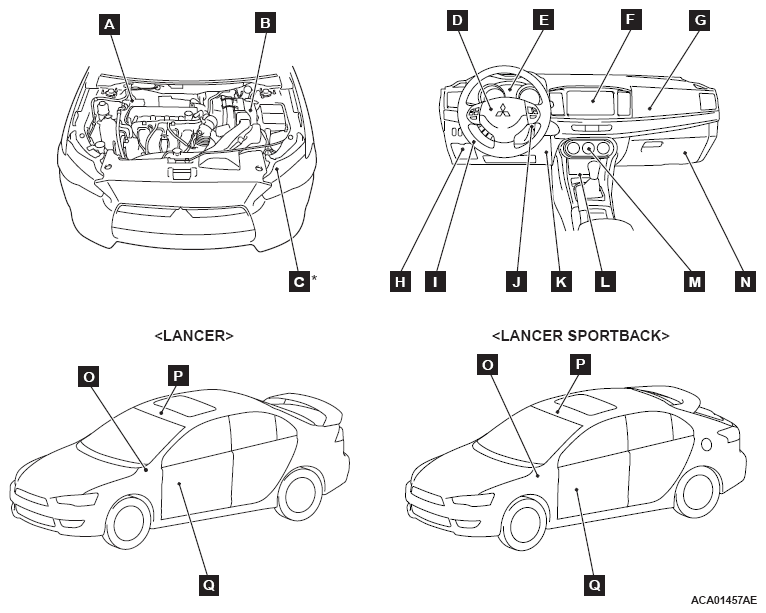

| Name | Symbol |
|---|---|
| A/C control panel (incorporating CPU) <Vehicles with A/C> | M |
| ABS-ECU | A |
| ASC-ECU | A |
| Audio visual navigation unit (incorporating CPU) <Vehicles with MMCS> | F |
| AWD-ECU <2.4L Engine (AWD)> | I |
| Column switch (incorporating column-ECU) | D |
| Combination meter (incorporating CPU) | E |
| Electric power steering-ECU <Non-turbo (2.0L Engine)> | N |
| Engine control module | B |
| ETACS-ECU | H |
| Front seat assembly (RH) (incorporating occupant classification-ECU) | O |
| Hands free module | G |
| Headlight control unit <Vehicles with discharge type headlight> | C |
| Heater control panel (incorporating CPU) <Vehicles without A/C> | M |
| KOS-ECU | K |
| Power window main switch (incorporating CPU) | Q |
| Receiver antenna module <Vehicles with KOS> | J |
| SRS-ECU | L |
| Sunroof motor assembly (incorporating CPU) | P |
| Transaxle control module <CVT> | I |
| Wireless control module <Vehicles without KOS> | J |
NOTE:
The * symbols indicate equipped at the right side.
