Component Locations: Grounding

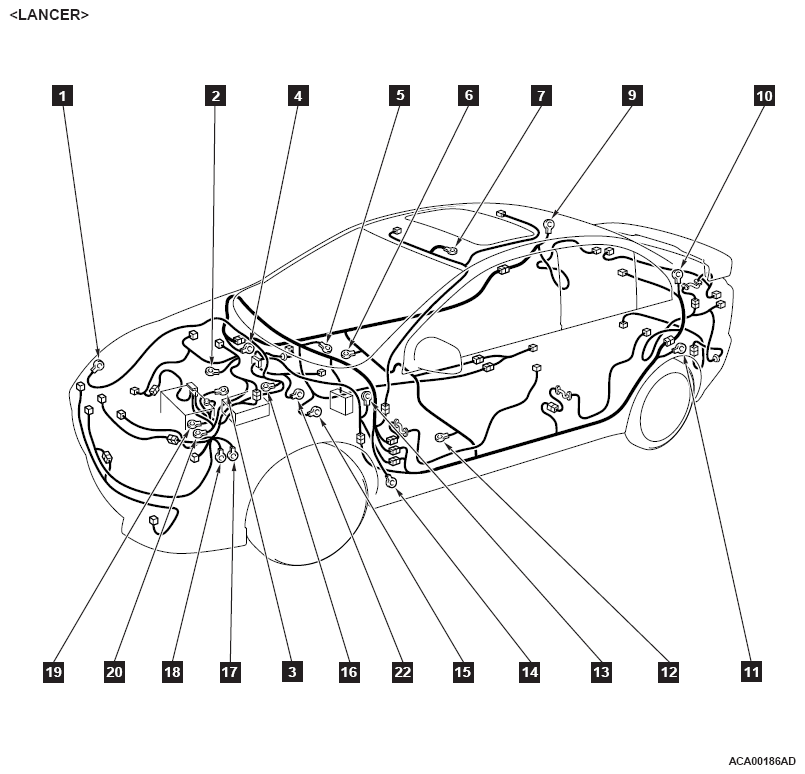

Fig 1: Grounding Cable Locations Of Vehicle - Lancer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

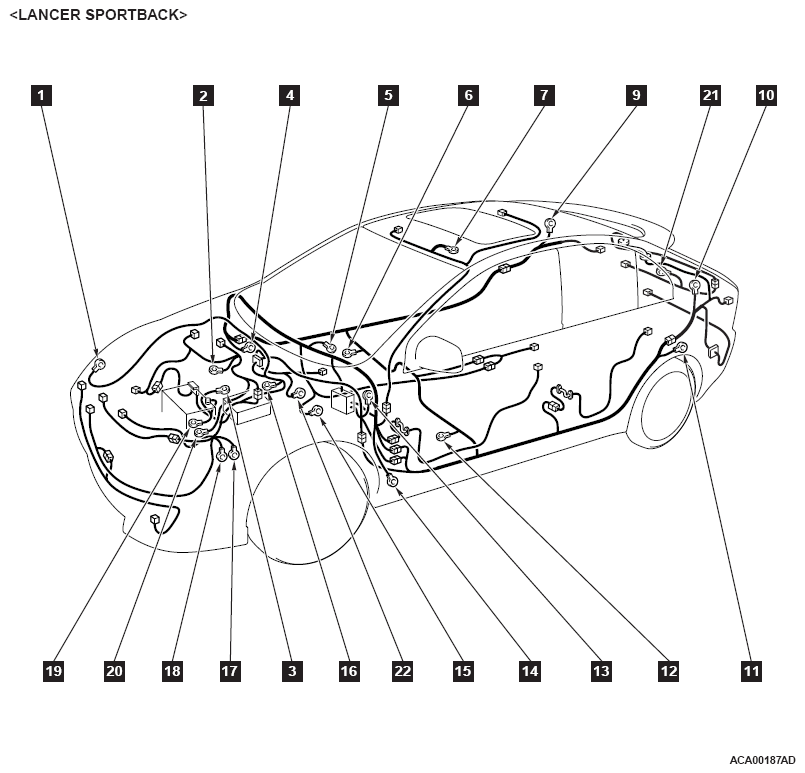

Fig 2: Grounding Cable Locations Of Vehicle - Lancer Sportback

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: 1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

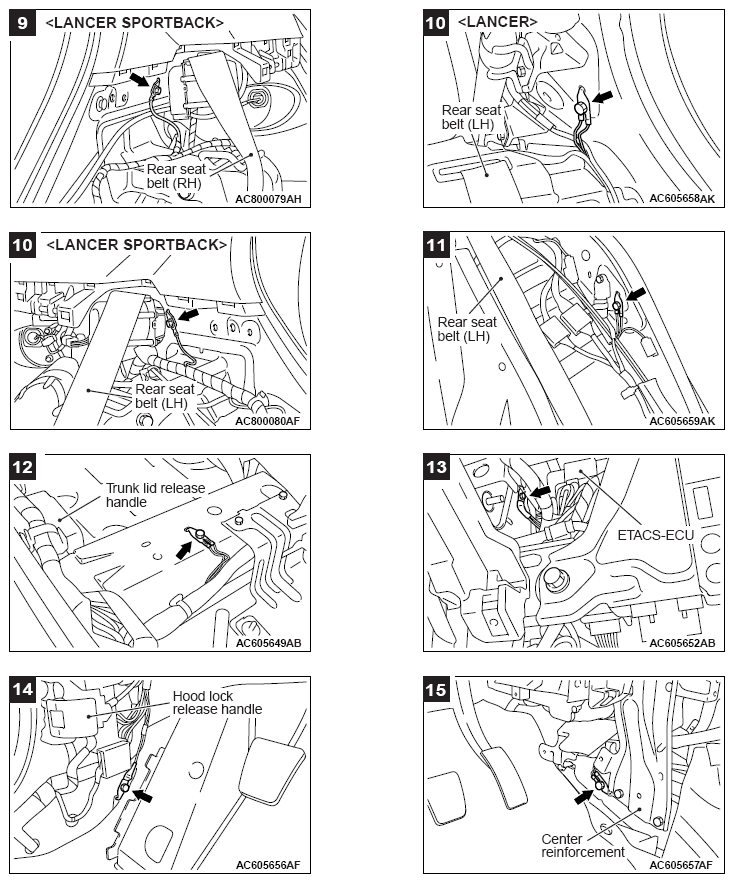

Fig 3: Grounding Cable Locations Of Vehicle (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

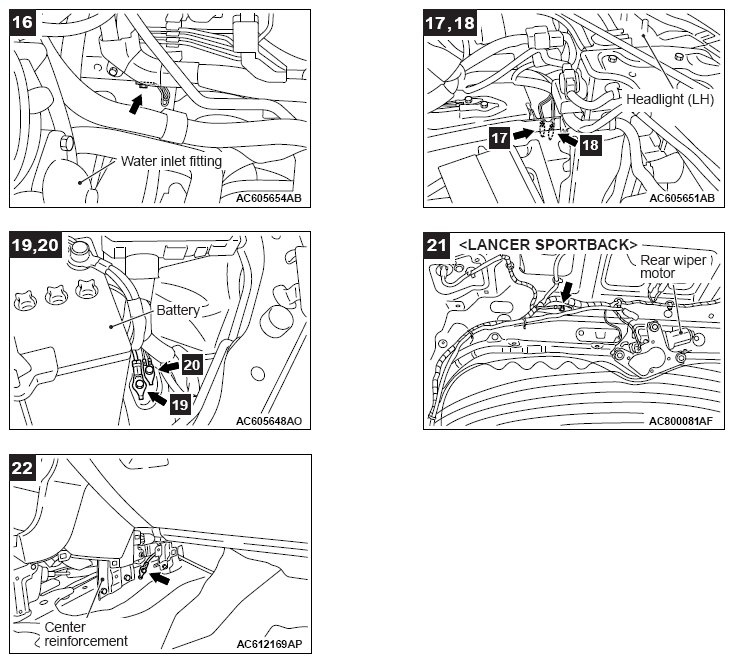

Fig 4: Grounding Cable Locations Of Vehicle (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
