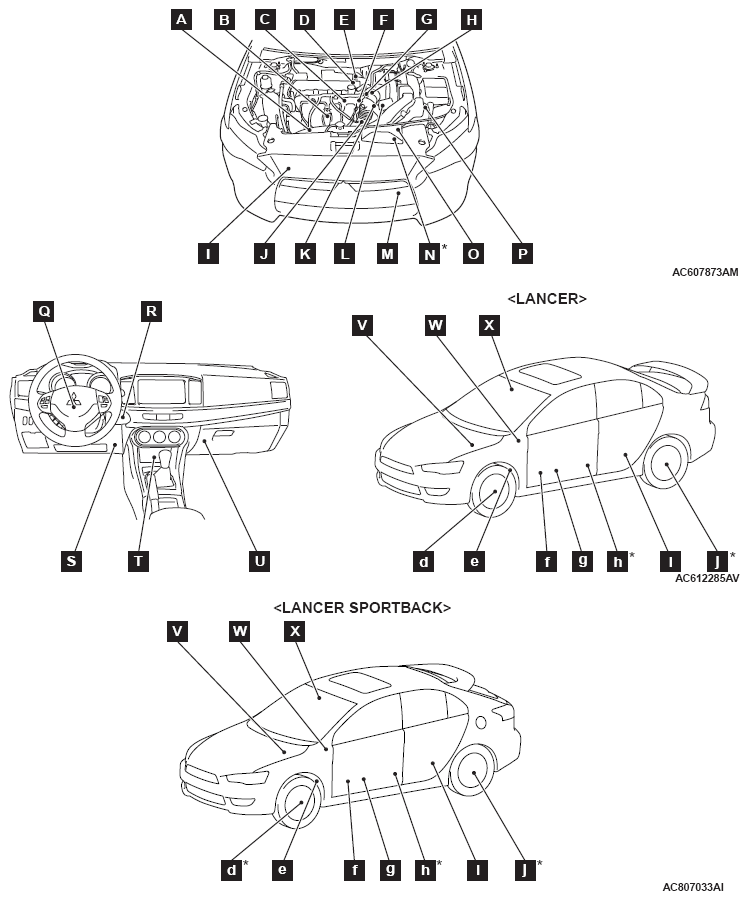

Component Locations: Sensor
| Name | Symbol |
|---|---|
| A/C pressure sensor | I |
| Accelerator pedal position sensor | S |
| Air thermo sensor | U |
| Ambient air temperature sensor | M |

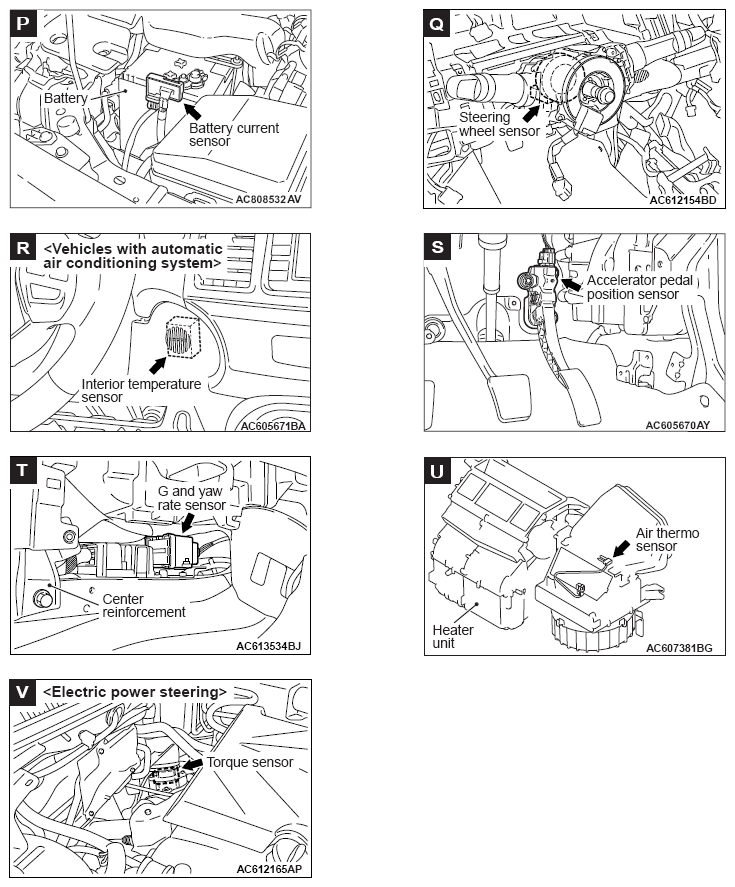

| Battery current sensor | P |
| Crankshaft position sensor | C |
| Engine coolant temperature sensor | G |
| Exhaust camshaft position sensor | D |
| Front impact sensor | N |
| Front light sensor <Vehicles with automatic anti-dazzling mirror> | Y |
| Front wheel speed sensor | d |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | i |
| Fuel tank differential pressure sensor | i |
| G and yaw rate sensor | T |

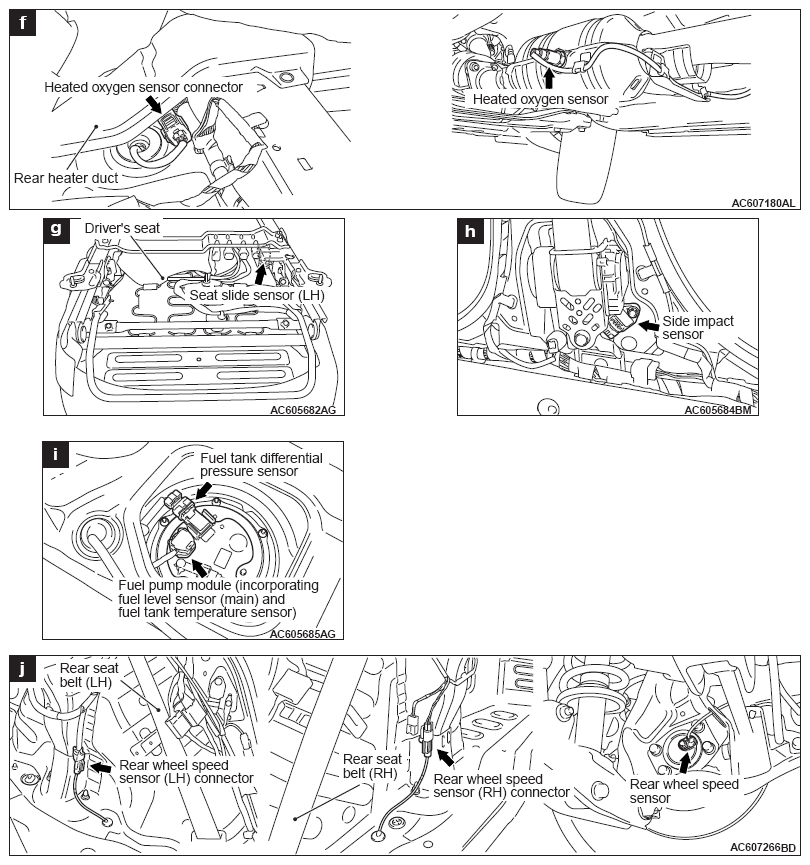

| Heated oxygen sensor | f |
| Heated oxygen sensor <Vehicles for California emission regulation> | e |
| Intake camshaft position sensor | F |
| Interior temperature sensor <Vehicles with automatic air conditioning system> | R |
| Knock sensor | B |
| Lighting control sensor <Vehicles with automatic light> | X |
| Linear air-fuel ratio sensor <Except vehicles for California emission regulation> | e |
| Linear air-fuel ratio sensor <Vehicles for California emission regulation> | E |

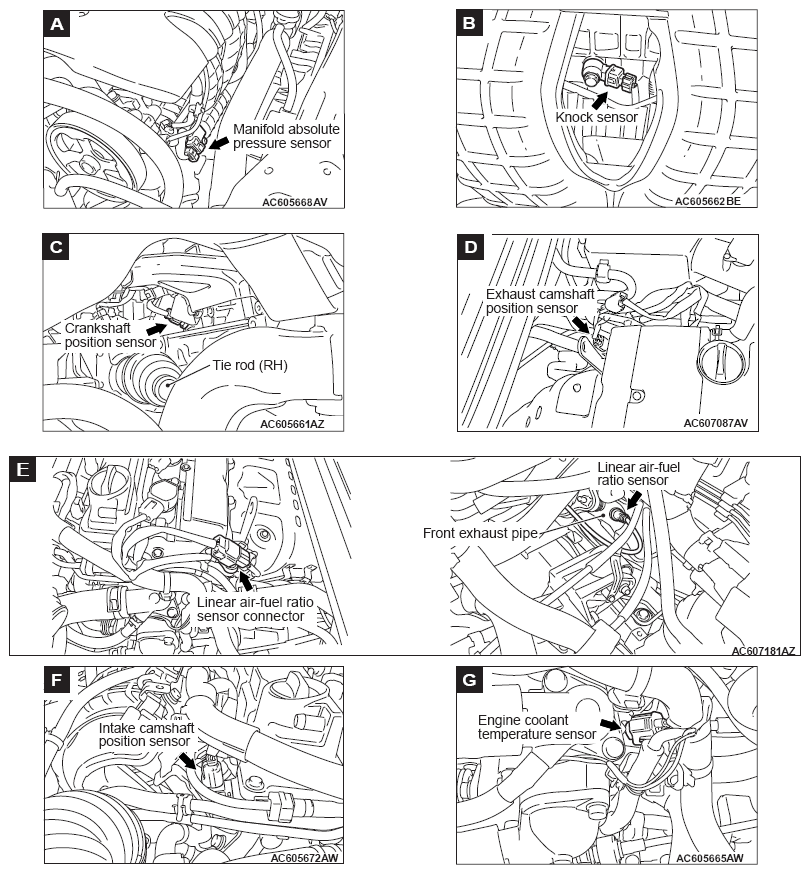

| Manifold absolute pressure sensor | A |

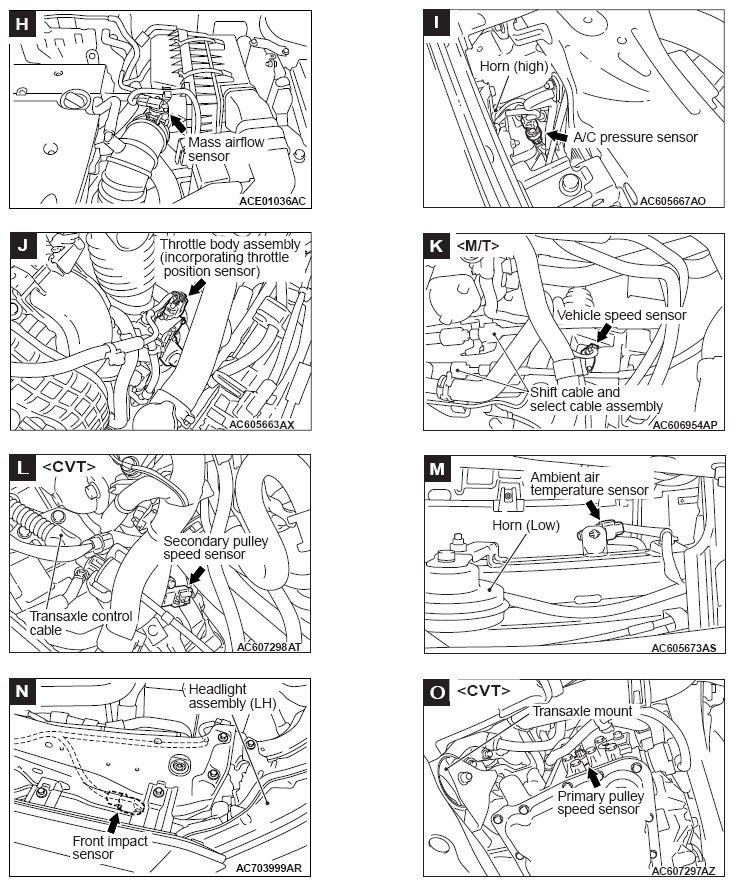

| Mass airflow sensor | H |
| Primary pulley speed sensor <CVT> | O |
| Rear light sensor <Vehicles with automatic anti-dazzling mirror> | X |
| Rear wheel speed sensor | j |
| Seat slide sensor (LH) | g |
| Secondary pulley speed sensor <CVT> | L |
| Side impact sensor | h |
| Steering wheel sensor | Q |
| Throttle body assembly (incorporating throttle position sensor) | J |
| Torque sensor <Electric power steering> | V |
| Vehicle speed sensor <M/T> | K |

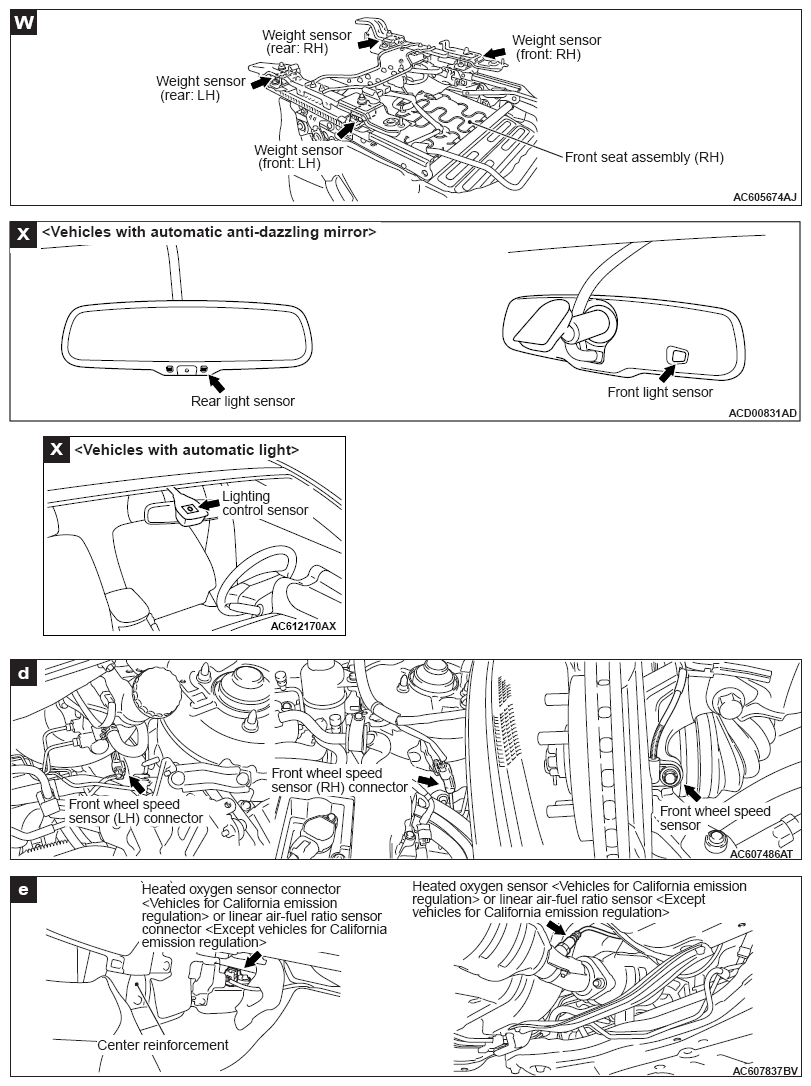

| Weight sensor | W |
NOTE:
The * symbols indicate equipped at the right side.
