Removal And Installation: Notes
Pre-removal and Post-installation Operation
Rear wiper blade and arm assembly removal and installation (Refer to
REAR WIPER AND WASHER
.)
Liftgate trim removal and installation (Refer to
LIFTGATE TRIM
.)

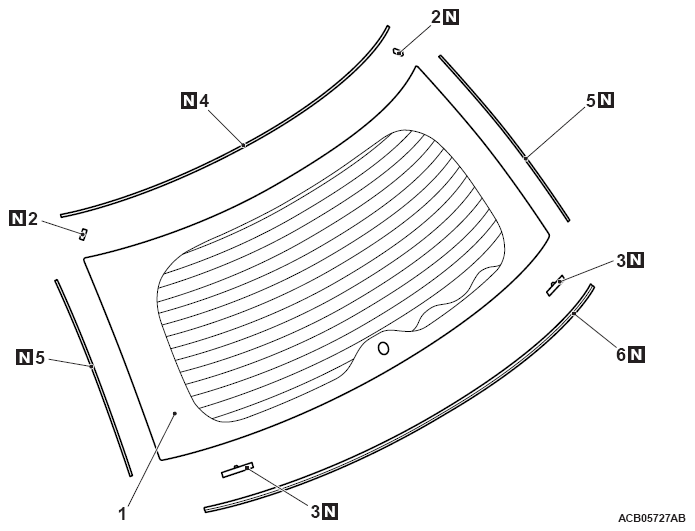

Fig 1: Removing/Installing Liftgate Window Glass Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

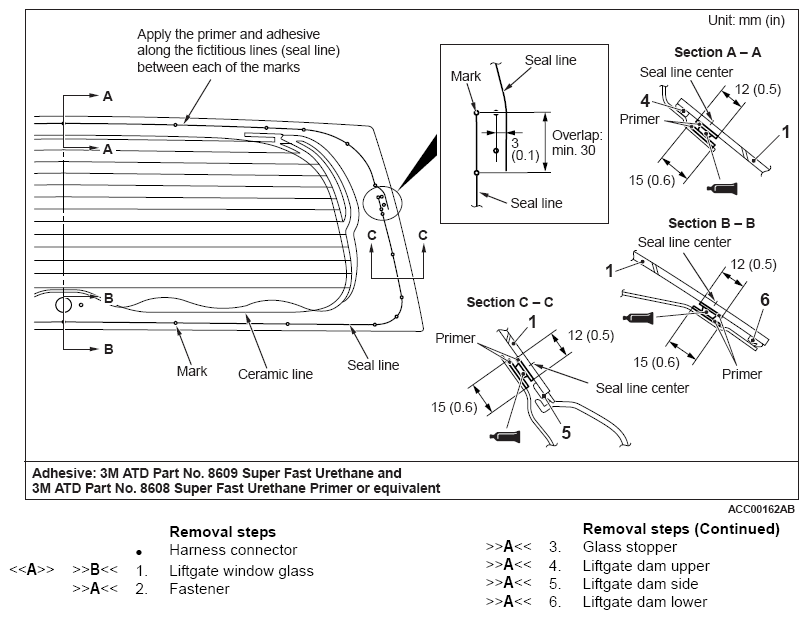

Fig 2: Identifying Window Glass Adhesive Applying Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
