Removal And Installation: Notes

Pre-removal and Post-installation Operation
  • Quarter trim upper removal and installation (Refer to INTERIOR TRIM .

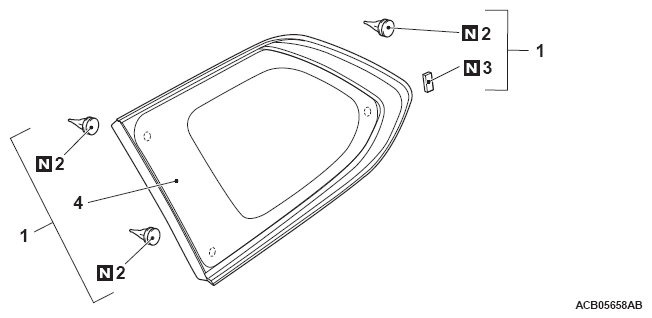

Fig 1: Removing/Installing Quarter Window Glass Components With Torque Specification (1 Of 2)
G10224648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

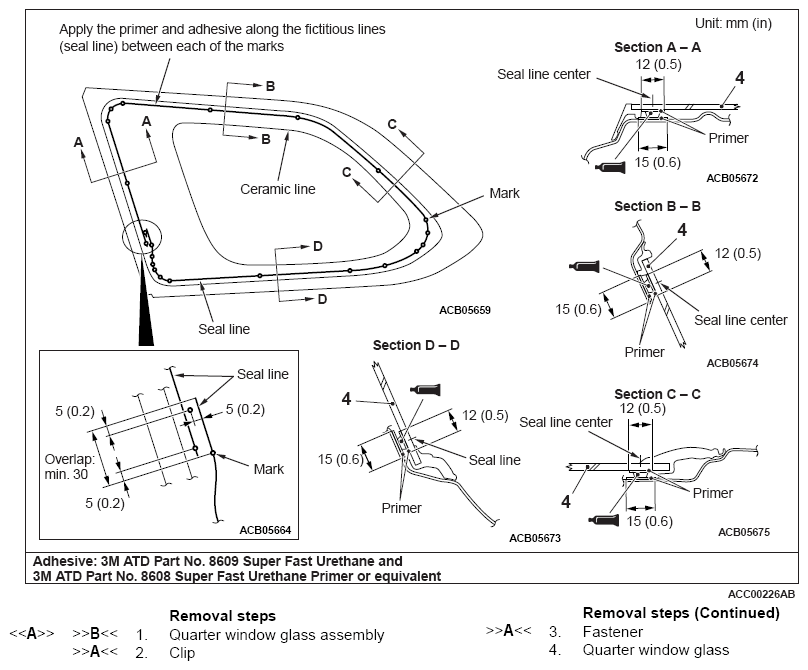

Fig 2: Removing/Installing Quarter Window Glass Components With Torque Specification (2 Of 2)
G10224649Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
