Removal And Installation (Front): Notes

CAUTION: The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

Pre-removal and post-installation operation

Air cleaner body assembly removal and installation < Refer to AIR CLEANER (2.4L ENGINE) or (3.0L ENGINE) > < FRONT WHEEL SPEED SENSOR (LH) >.

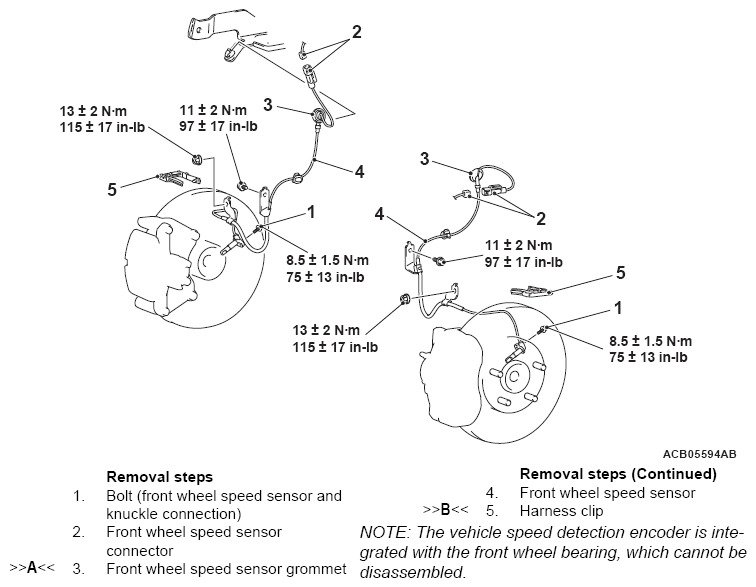

Fig 1: Removing/Installing Wheel Speed Sensor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The vehicle speed detection encoder is integrated with the front wheel bearing, which cannot be disassembled.
