Disassembly And Reassembly: Notes

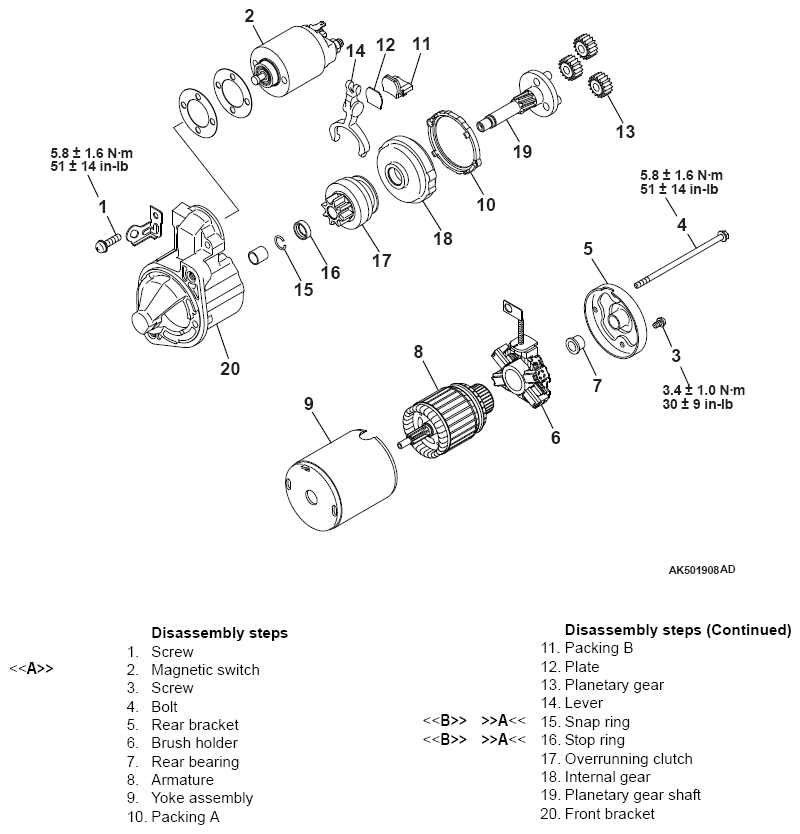

Fig 1: Disassembling/Reassembling Starting System Components With Torque Specifications
G10224366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
