Disassembly And Reassembly

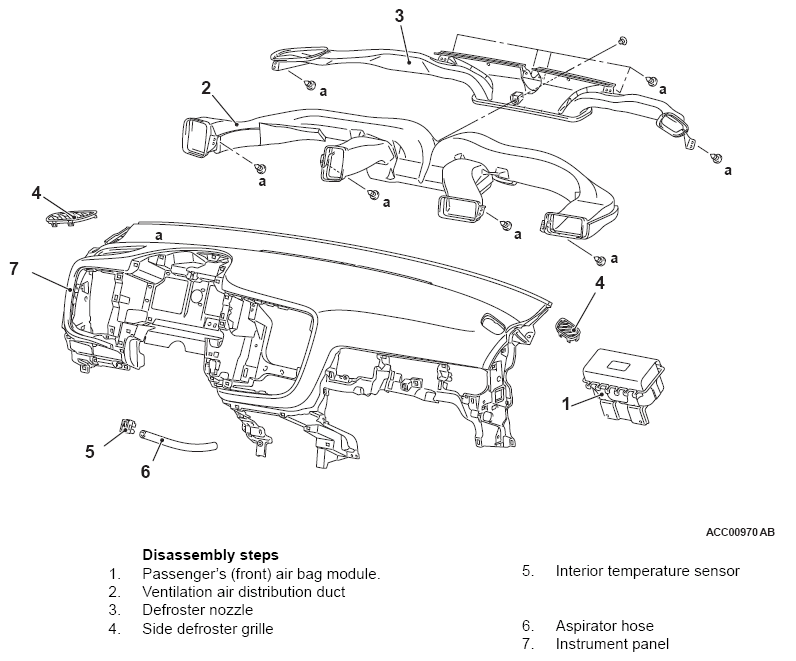

Fig 1: Disassembling/Assembling Instrument Panel Assembly Components
G12127324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
