>> A << Regulator Assembly Installation

After installing the regulator assembly, insert a piece of wire through the hole in the rear bracket while pressing the brush to keep the brush against movement.

NOTE: Unless inserting the wire to fix the brush, the rotor installation is difficult.

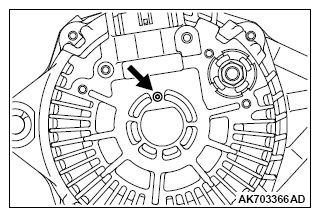

Fig 1: Locating Hole In Rear Bracket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

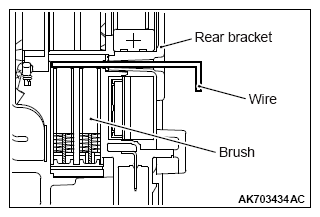

Fig 2: Inserting Piece Of Wire Through Hole In Rear Bracket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
