(Fuel Pump Module)

NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT  in On-vehicle Service (refer to .)

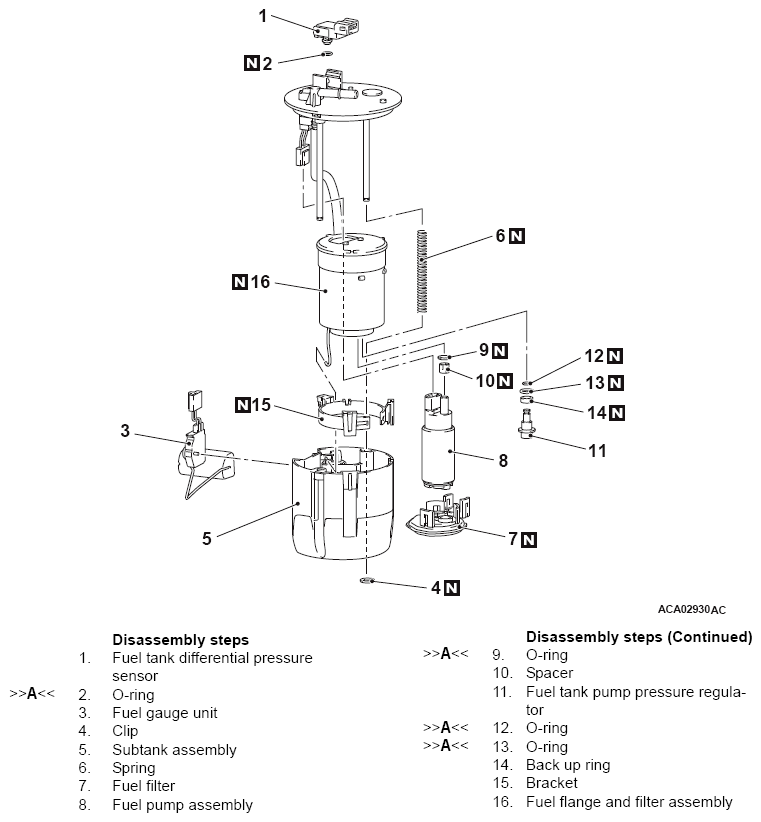

Fig 1: Disassembling/Assembling Fuel Pump Module Components
G10228748Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
