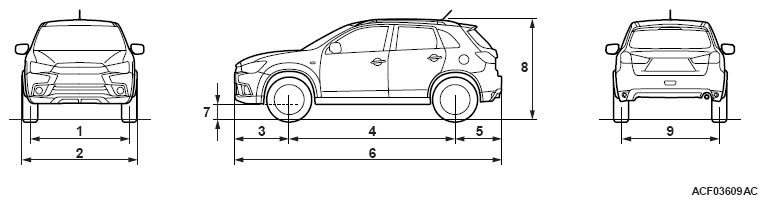

| Vehicle dimension mm (in) |
Front track |
1 |
1, 525 (60.0) 1, 540 (60.6) |
1, 525 (60.0) 1, 540 (60.6) |
| Overall width |
2 |
1, 810 (71.3) |
1, 810 (71.3) |
| Front overhang |
3 |
930 (36.6) |
930 (36.6) |
| Wheel base |
4 |
2, 670 (105.1) |
2, 670 (105.1) |
| Rear overhang |
5 |
755 (29.7) |
755 (29.7) |
| Overall length |
6 |
4, 355 (171.5) |
4, 355 (171.5) |
| Ground clearance (unladen) |
7 |
215 (8.5) |
215 (8.5) |
| Overall height (unladen) |
Without roof rail |
8 |
1, 630 (64.2) |
1, 630 (64.2) |
| With roof rail |
1, 640 (64.6) |
1, 640 (64.6) |
| Rear track |
9 |
1, 525 (60.0) 1, 540 (60.6) |
1, 525 (60.0) 1, 540 (60.6) |
| Vehicle weight kg (lb) |
Kerb weight |
Without optional parts |
1, 410 (3, 109) |
1, 425 (3, 142) |
| With optional parts |
1, 434 (3, 161) |
1, 479 (3, 261) |
| Max. gross vehicle weight |
1, 970 (4, 343) |
1, 970 (4, 343) |
| Max. axle weight rating-front |
1, 030 (2, 271) |
1, 030 (2, 271) |
| Max. axle weight rating-rear |
1, 000 (2, 205) |
1, 000 (2, 205) |
| Seating capacity |
5 |
5 |
| Engine |
Model code |
4B11 |
4B11 |
| Type |
DOHC MIVEC |
DOHC MIVEC |
| Piston displacement cm3
(cu in) |
1, 998 (121.9) |
1, 998 (121.9) |
| Maximum output kW/r/min (HP/r/min) |
110/6, 000 (148/6, 000) |
110/6, 000 (148/6, 000) |
| Maximum torque N.m/r/min (ft-lb/r/min) |
197/4, 200 (145/4, 200) |
197/4, 200 (145/4, 200) |
| Fuel system |
Fuel supply system |
MFI |
MFI |
| Transmission |
Model code |
F1CJC |
F1CJC |
| Type |
FWD, INVECS-III CVT with sport mode |
FWD, INVECS-III CVT with sport mode |
| Minimum turning radius m (ft) |
Body |
5.7 (18.7) |
5.7 (18.7) |
| Wheel |
5.3 (17.4) |
5.3 (17.4) |
