Disassembly And Reassembly: Notes

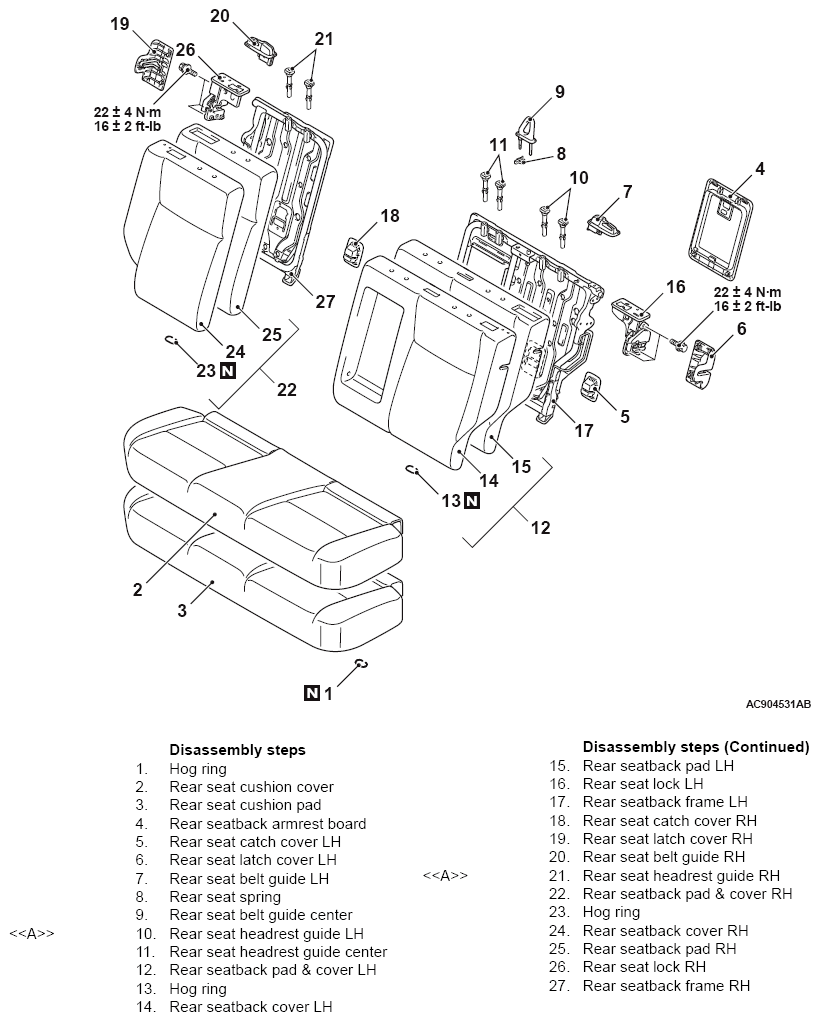

Fig 1: Disassembling/Reassembling Rear Seat Cushion Assembly Components With Torque Specification
G10231982Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
