Removal And Installation: Notes

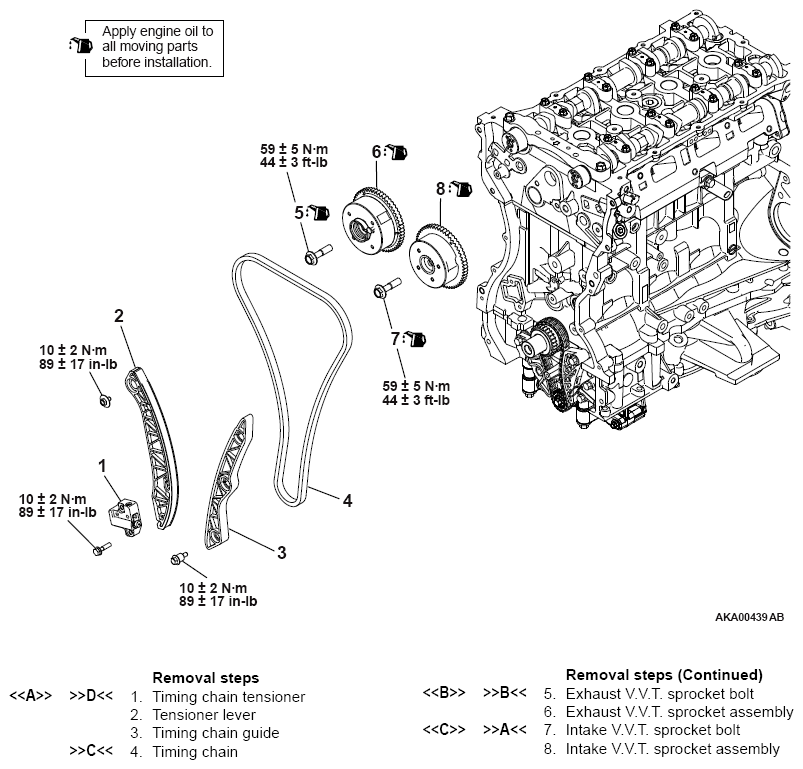

Fig 1: Identifying Timing Chain And Related Components With Torque Specifications
G10227715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
