Removal And Installation: Notes

CAUTION:

The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
When removing and installing the driveshaft assembly, make sure that the wheel speed detection magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
The parts indicated by * are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal operation	Post-installation operation
Engine Room Under Cover Rear Removal (Refer to REMOVAL AND INSTALLATION ). CVT fluid draining (Refer to TRANSMISSION FLUID CHANGE ).	CVT fluid refilling (Refer to TRANSMISSION FLUID CHANGE ). Engine Room Under Cover Rear Installation (Refer to REMOVAL AND INSTALLATION ). Using your fingers, press the ball joint dust cover to check for a crack or damage.

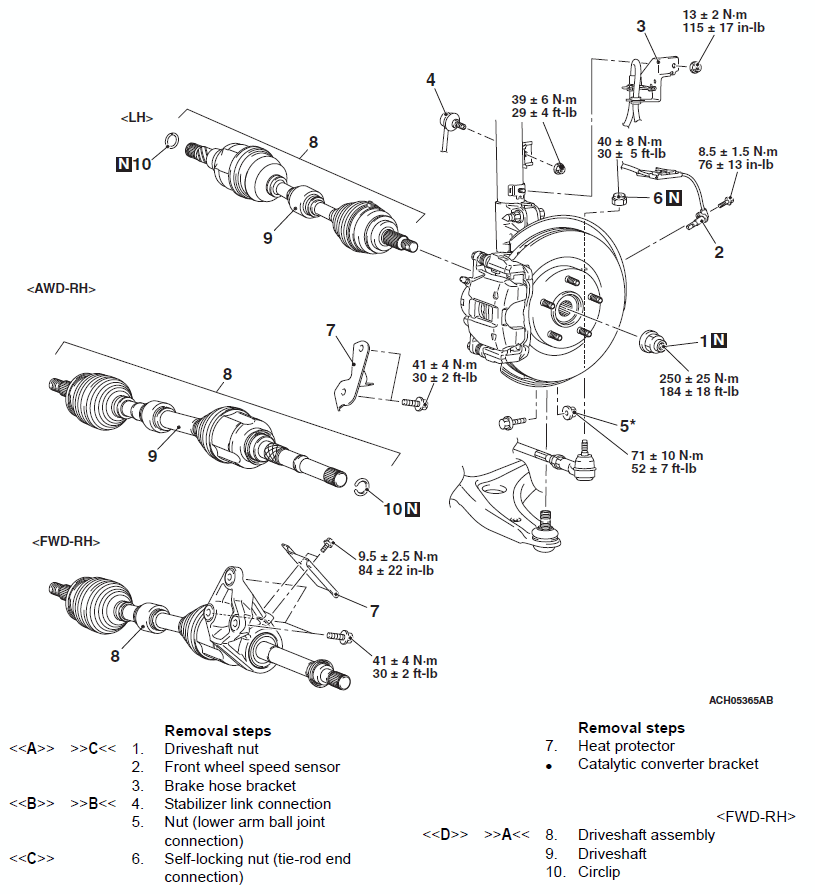

Fig 1: Removing/Installing Driveshaft Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
