Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal operation

Removal of Steering wheel assembly (Refer to STEERING WHEEL .)
Removal of Steering column lower cover and steering column upper cover (Refer to STEERING SHAFT .)
Removal of Column switch body (Refer to COLUMN SWITCH .)
Removal of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .)

Post-installation operation

Installation of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .)
Removal of Column switch body (Refer to COLUMN SWITCH .)
Installation of Steering column lower cover and steering column upper cover (Refer to STEERING SHAFT .)
Removal of Steering wheel assembly (Refer to STEERING WHEEL .)

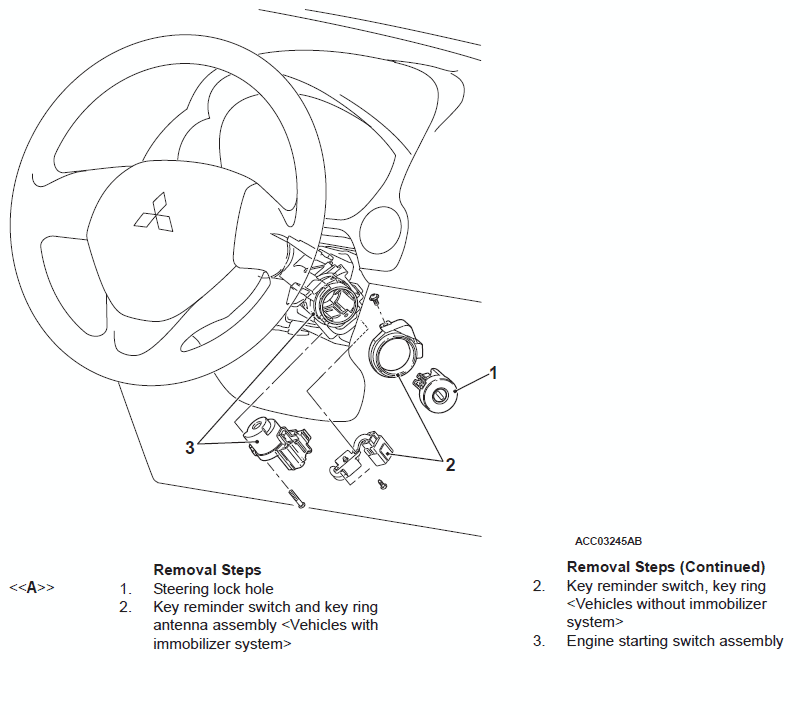

Fig 1: Ignition Key Reminder Tone Alarm Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
