Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal operation

Liftgate Spoiler Assembly Removal <Vehicles with Liftgate Spoiler> (Refer to LIFTGATE SPOILER ).
Liftgate Trim Removal (Refer to LIFTGATE TRIM ).
Rear Washer Hose Removal (Refer to REAR WIPER AND WASHER ).

Post-installation operation

Liftgate Alignment (Refer to ON-VEHICLE SERVICE ).
Adjustment of Liftgate Height (Refer to ADJUSTMENT OF LIFTGATE HEIGHT ).
Rear Washer Hose Installation (Refer to REAR WIPER AND WASHER ).
Liftgate Trim Installation (Refer to LIFTGATE TRIM ).
Liftgate Spoiler Assembly Installation <Vehicles with liftgate spoiler> (Refer to LIFTGATE SPOILER ).

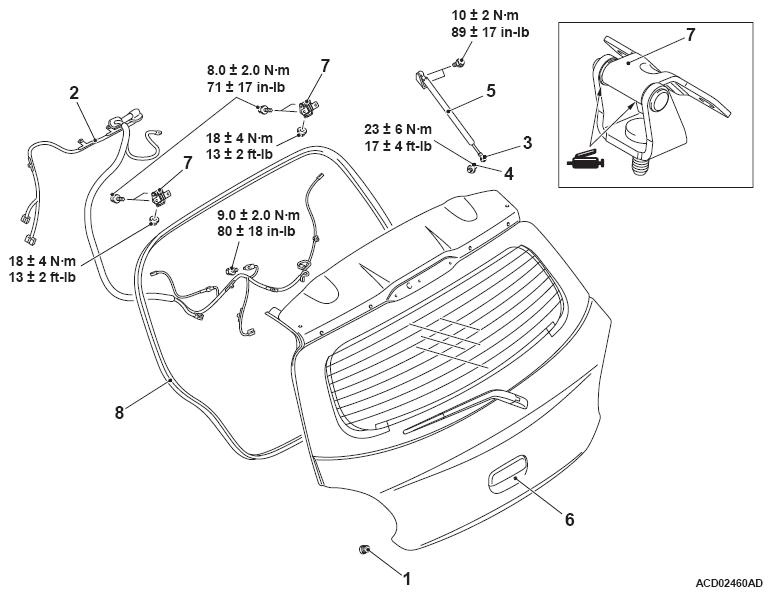

Fig 1: Liftgate Components With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

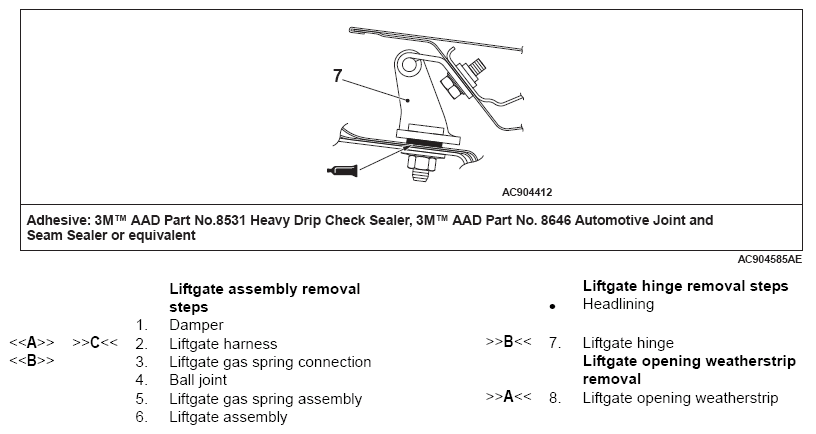

Fig 2: Liftgate Components With Torque Specifications (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
