Disassembly And Reassembly <3.0 L Engine>: Notes

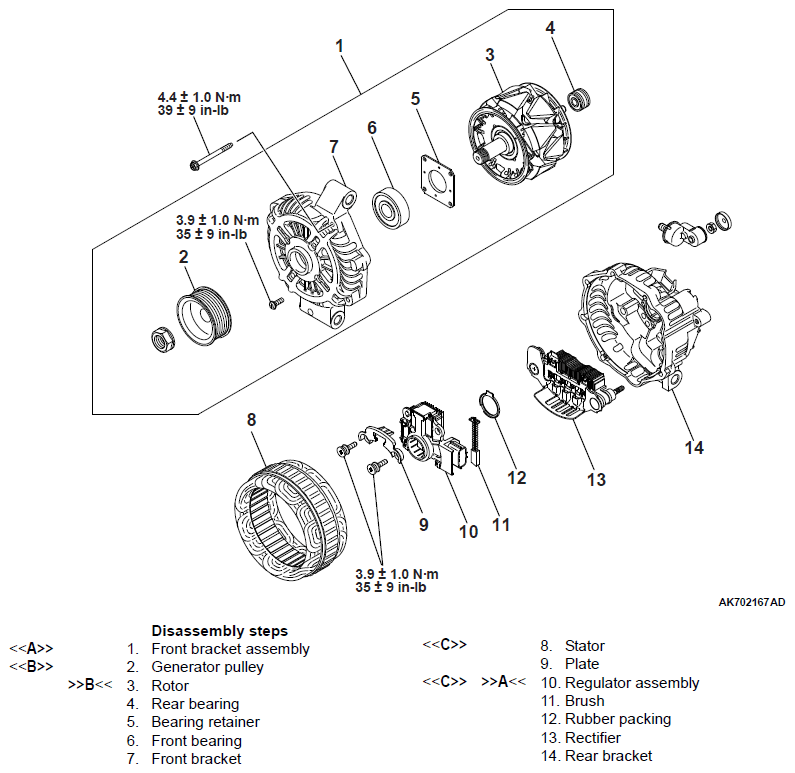

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specification - 3.0L Engine
G12365708Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
