REMOVAL AND INSTALLATION <3.0L Engine>

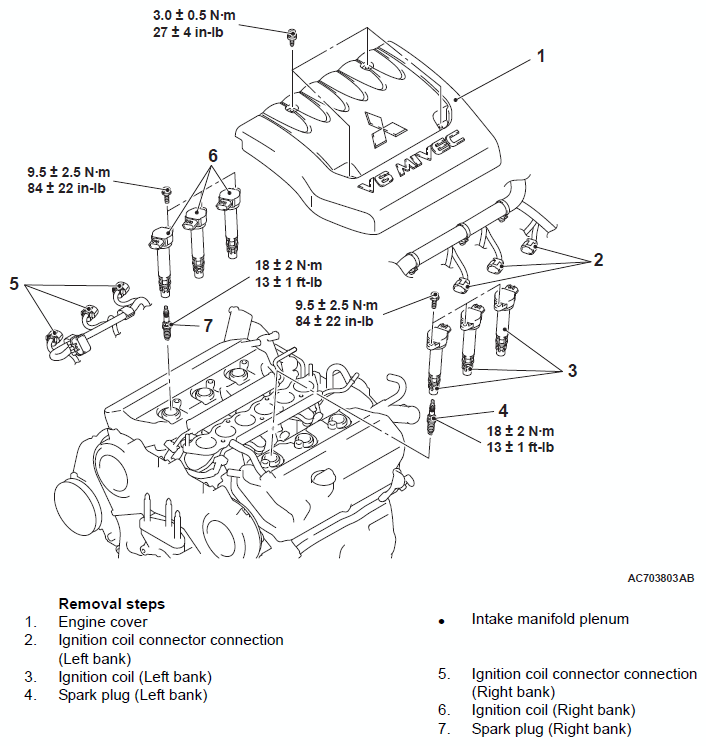

Fig 1: Removing/Installing Ignition Coil Components With Torque Specification - 3.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Pre-removal operation
Engine Room Side Cover (RH) Removal (Refer to
REMOVAL AND INSTALLATION
).
Driveshaft Assembly (RH) Removal <Vehicles with S-AWC> (Refer to
DRIVESHAFT ASSEMBLY
).
Post-installation operation
Driveshaft Assembly (RH) Installation <Vehicles with S-AWC> (Refer to
DRIVESHAFT ASSEMBLY
).
Engine Room Side Cover (RH) Installation (Refer to
REMOVAL AND INSTALLATION
).

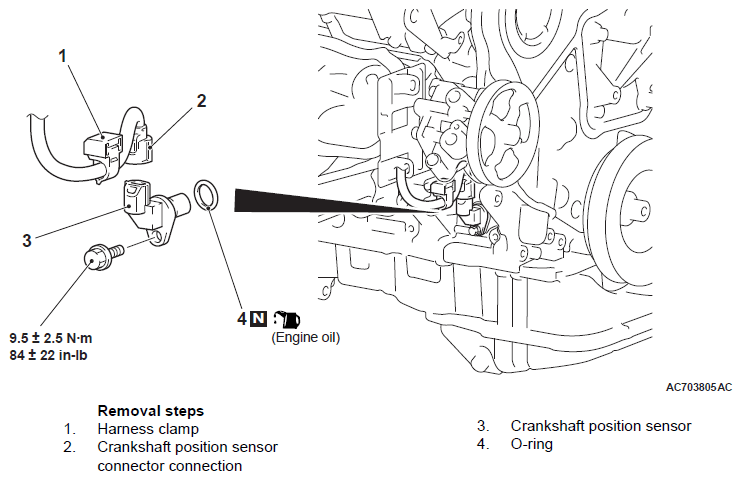

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specification - 3.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
