Component Locations: Grounding

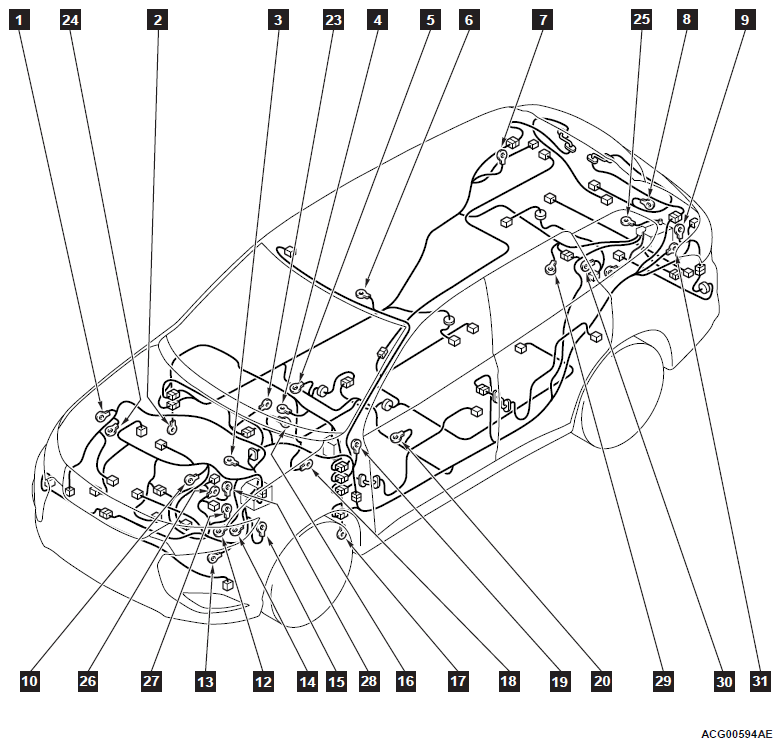

G12377272Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

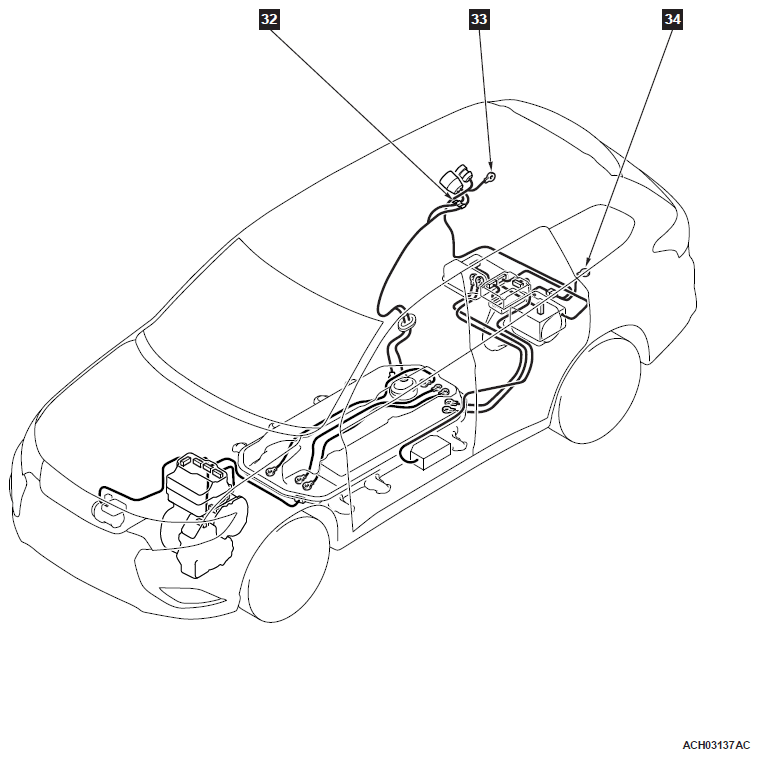

G12377273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

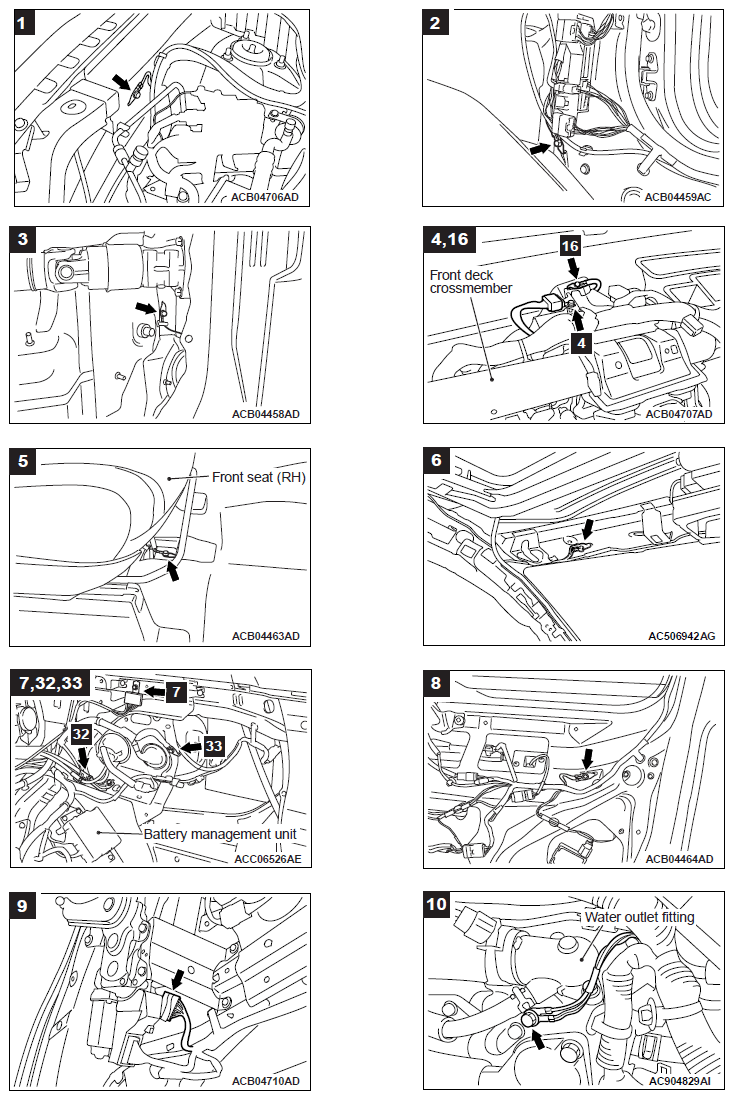

G12377274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

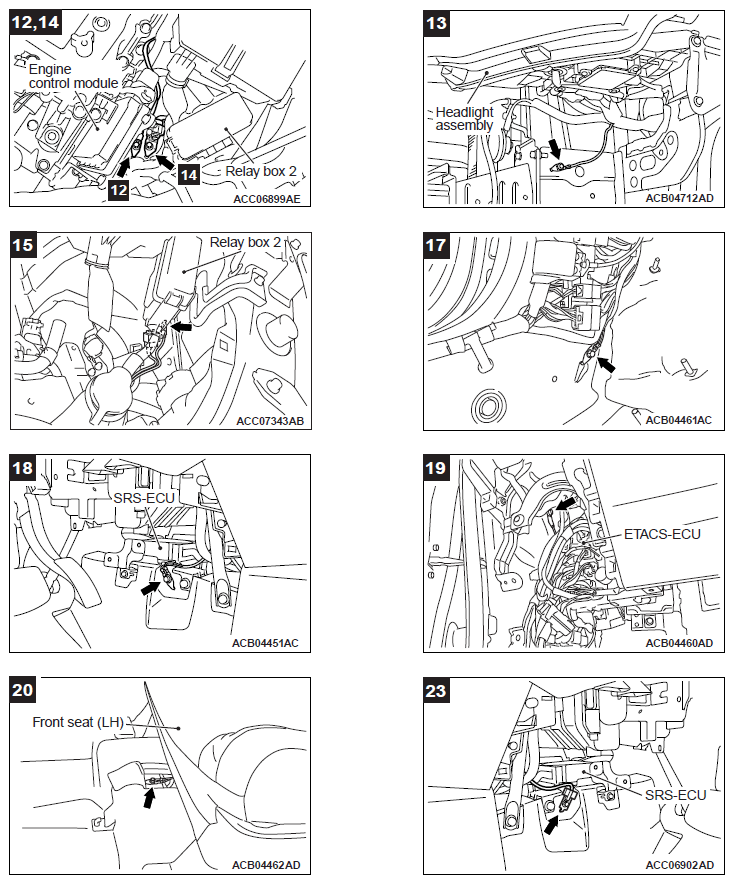

G12377275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

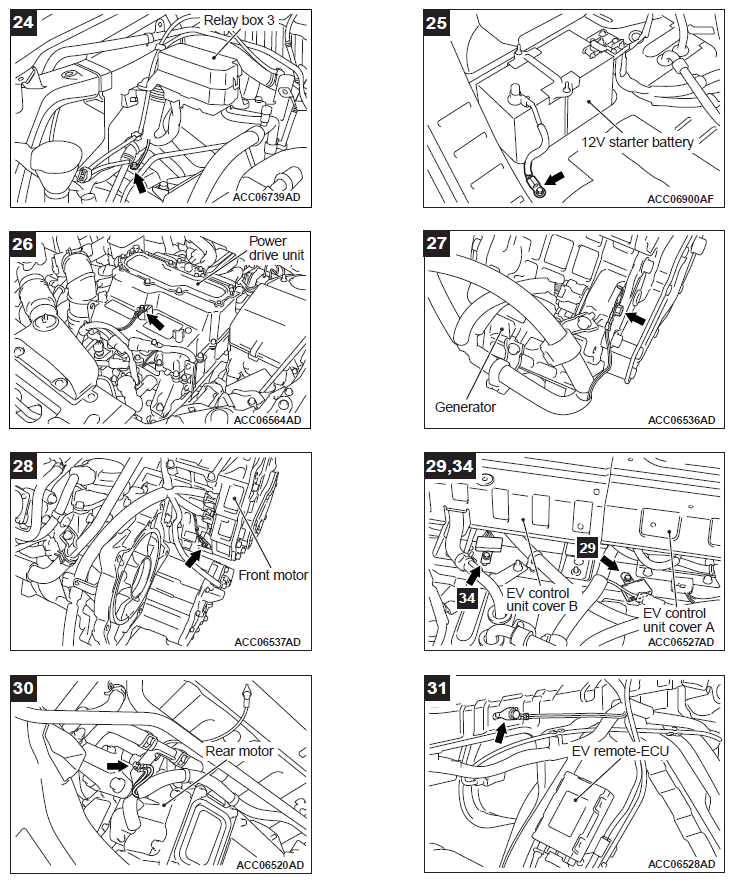

G12377276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
