The Accessory Socket Does Not Work: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

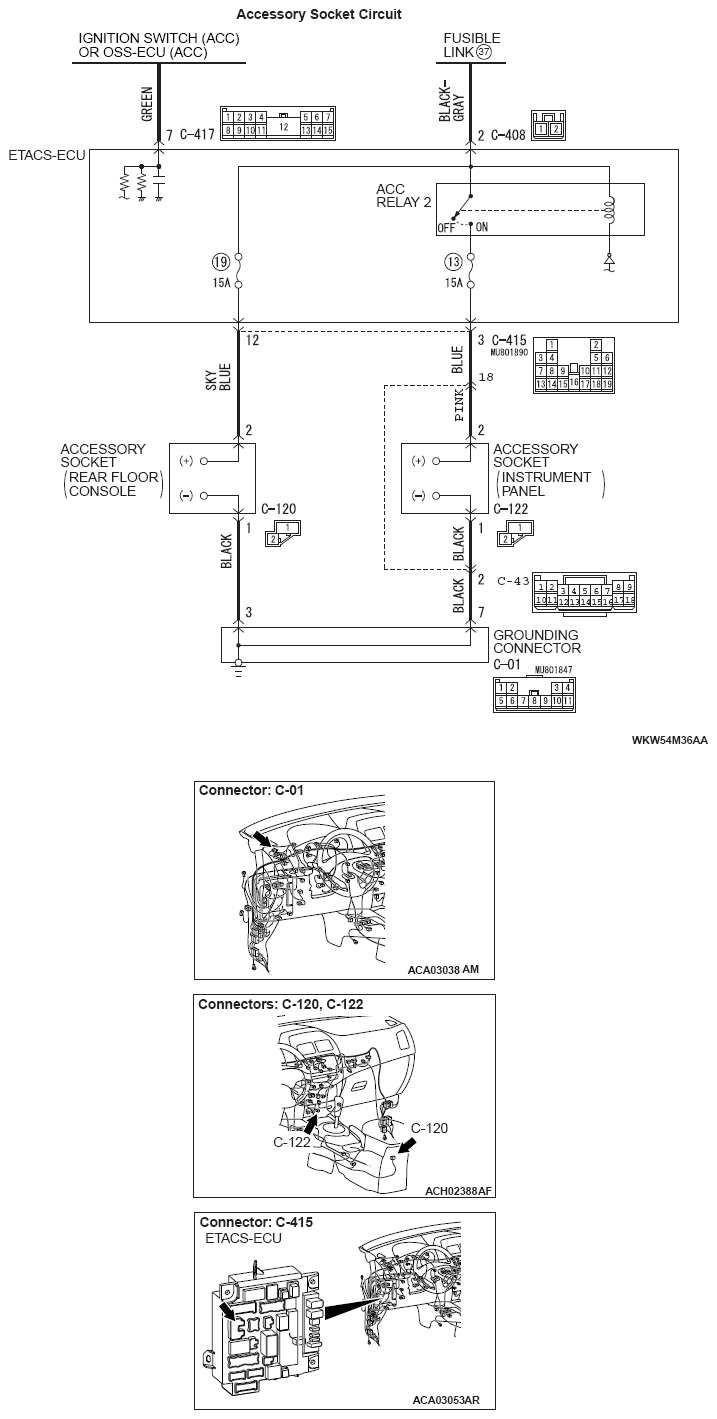

Fig 1: Accessory Socket Circuit Diagram
G12155254Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
