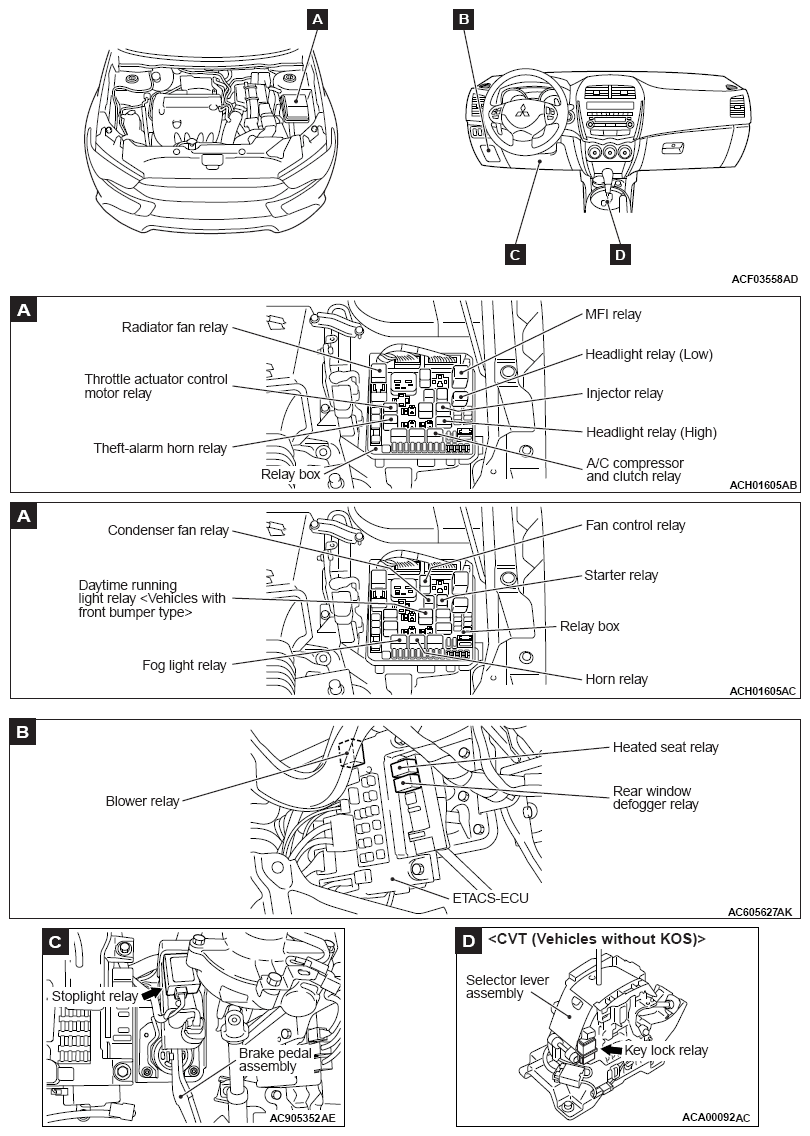

Component Locations: Relay
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C compressor and clutch relay | A | Horn relay | A |
| Blower relay | B | Injector relay | A |
| Condenser fan relay | A | Key lock relay <CVT (Vehicles without KOS)> | D |
| Daytime running light relay <Vehicles with front bumper type> | A | MFI relay | A |
| Fan control relay | A | Radiator fan relay | A |
| Fog light relay | A | Rear window defogger relay | B |
| Headlight relay (High) | A | Stoplight relay | C |
| Headlight relay (Low) | A | Theft-alarm horn relay | A |
| Heated seat relay | B | Throttle actuator control motor relay | A |
