Removal And Installation: Notes

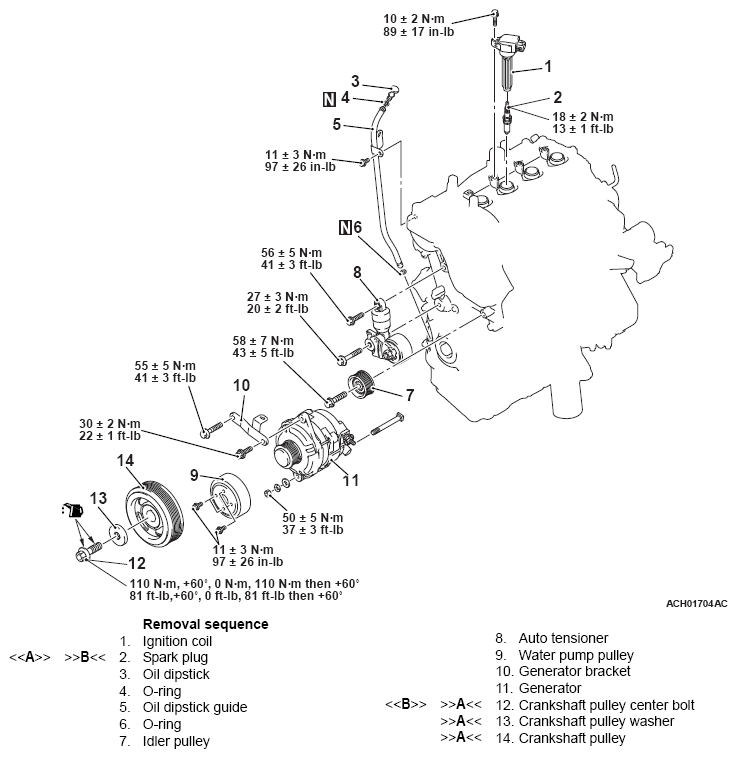

Fig 1: Removing/Installing Generator And Ignition System Components With Torque Specification
G12647835Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
