Component Locations: Grounding

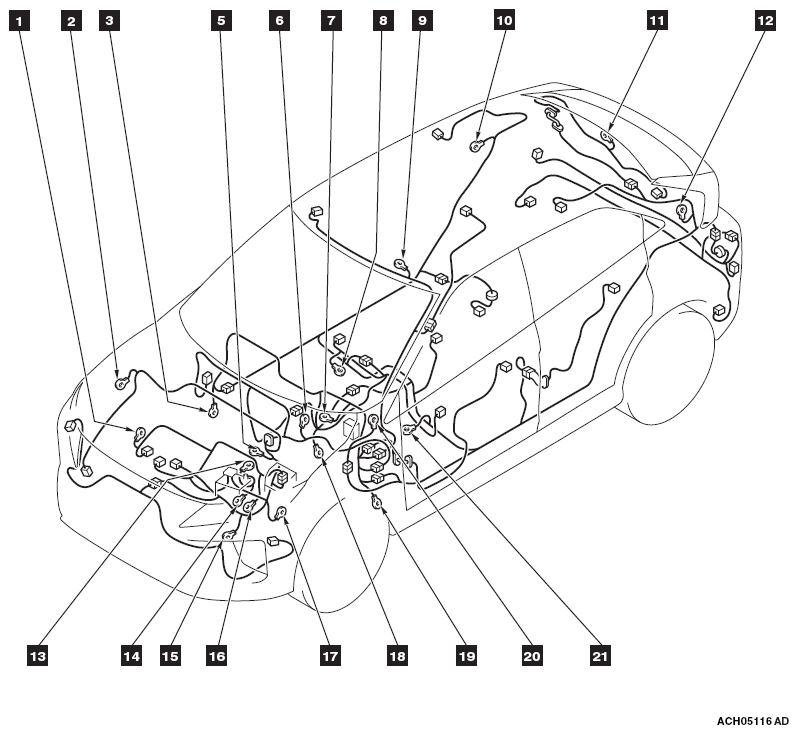

G12151548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground point numbers are used in the circuit diagram.

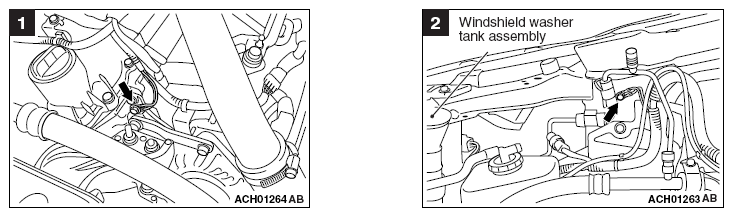

G12650941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

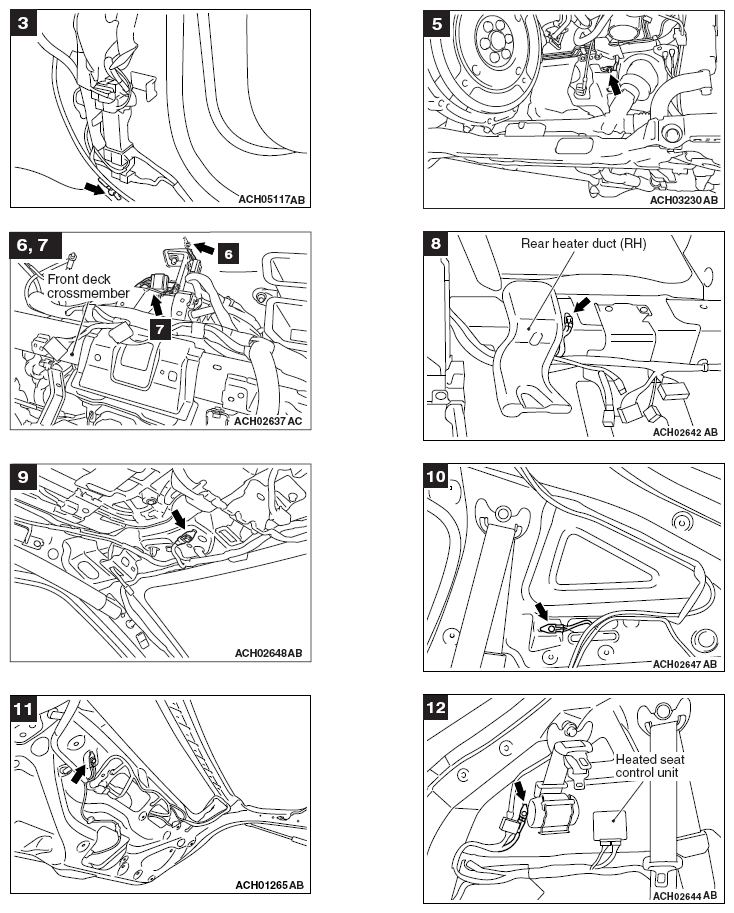

G12650942Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

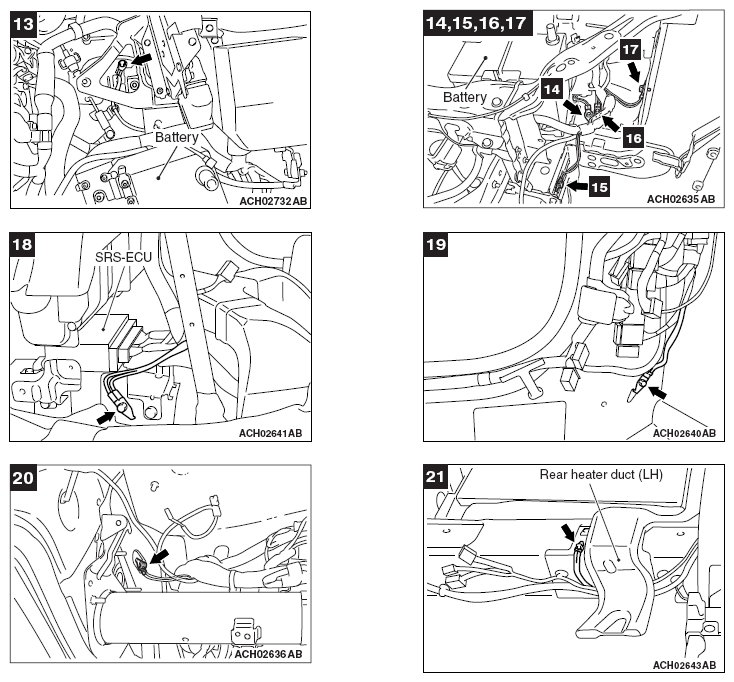

G12650943Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
