Fuel Tank Temperature Sensor Check
- Remove the rear seat assembly (Refer to REAR SEAT ASSEMBLY ), and turn up the floor carpet.
- Remove the floor inspection lid (LH).

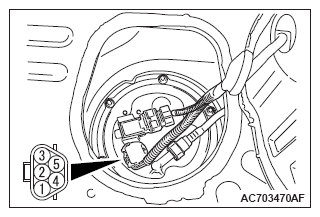

- Disconnect the fuel pump module connector.
- Measure the resistance between connector terminals No. 1 and No. 3 of the fuel pump module (incorporating fuel tank temperature sensor).
Standard value: 0.43 - 12.3 kΩ
(at -10 - 70°C (14 - 158°F))
- If not within the standard value, replace the fuel level sensor and fuel tank temperature sensor (Refer to DISASSEMBLY AND ASSEMBLY ).
- Connect the fuel pump module connector.
- Install the inspection lid.
- Return the floor carpet to the original condition and install the rear seat assembly (Refer to REAR SEAT ASSEMBLY
).
