Controller Area Network (Can)

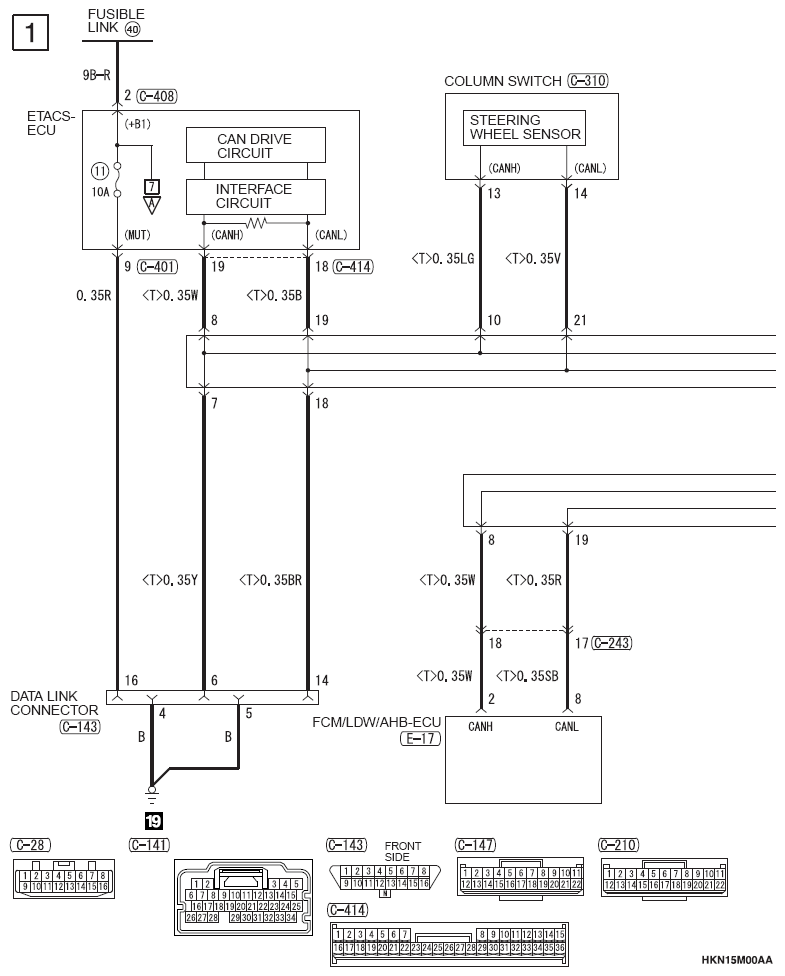

G12651739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

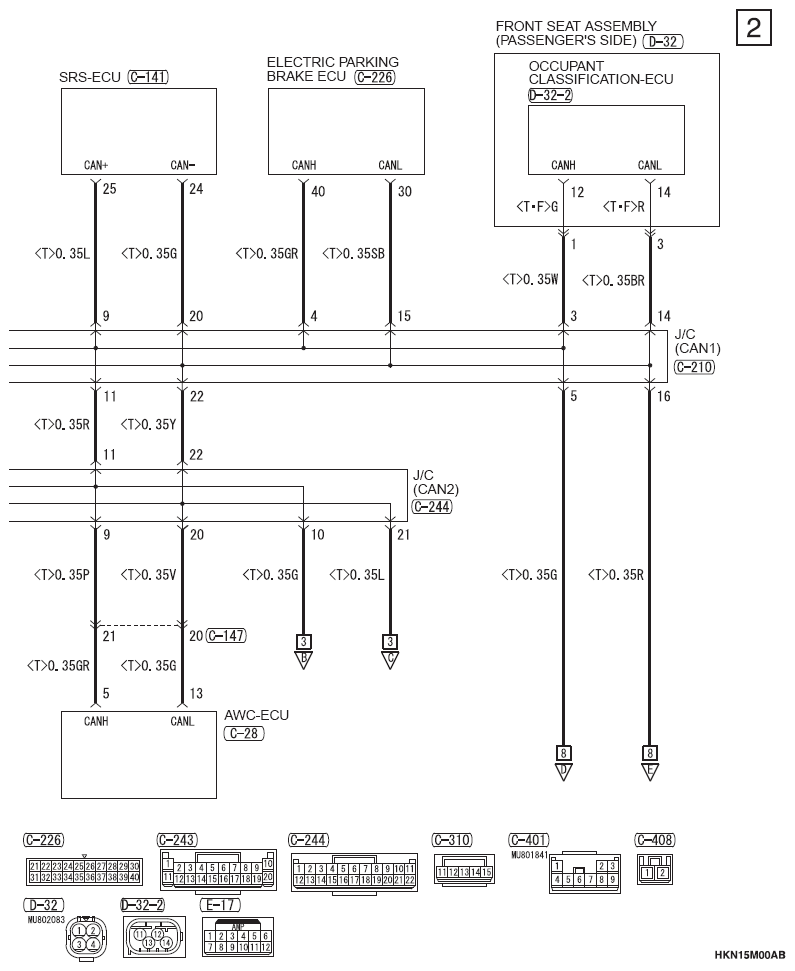

G12651740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

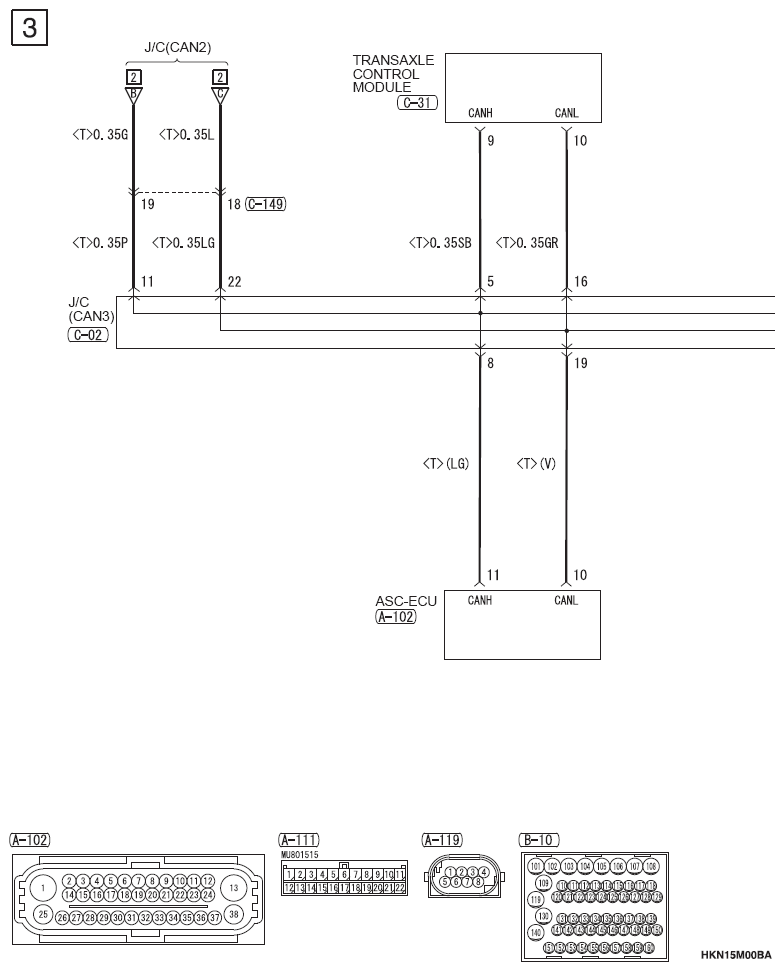

G12651741Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

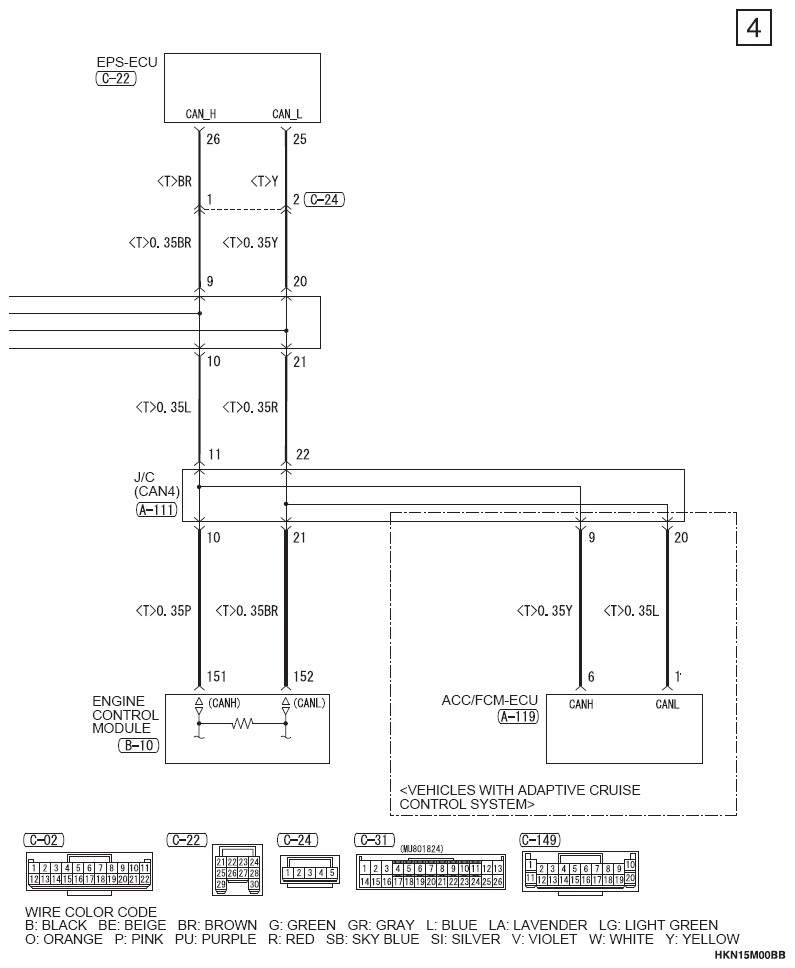

G12651742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

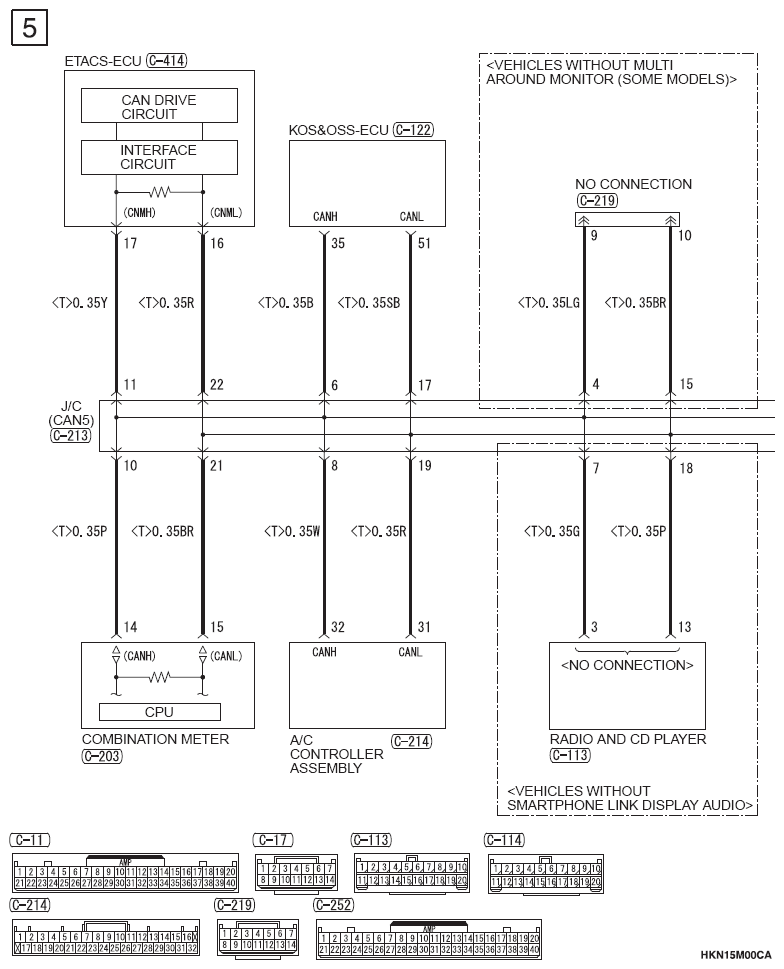

G12651743Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

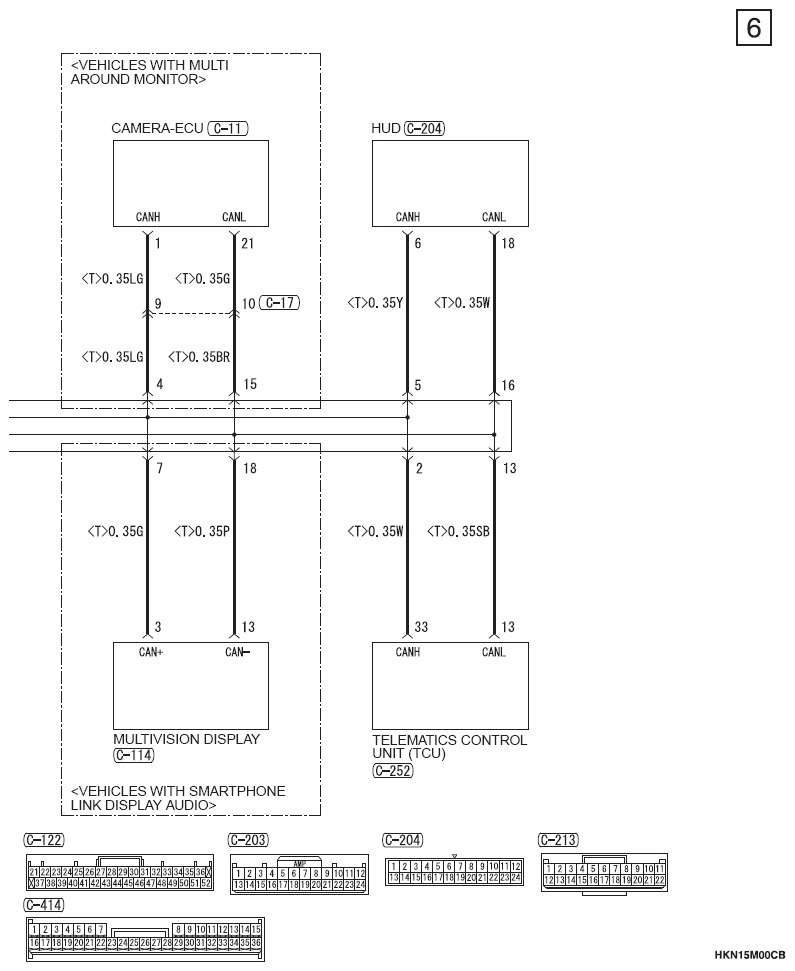

G12651744Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

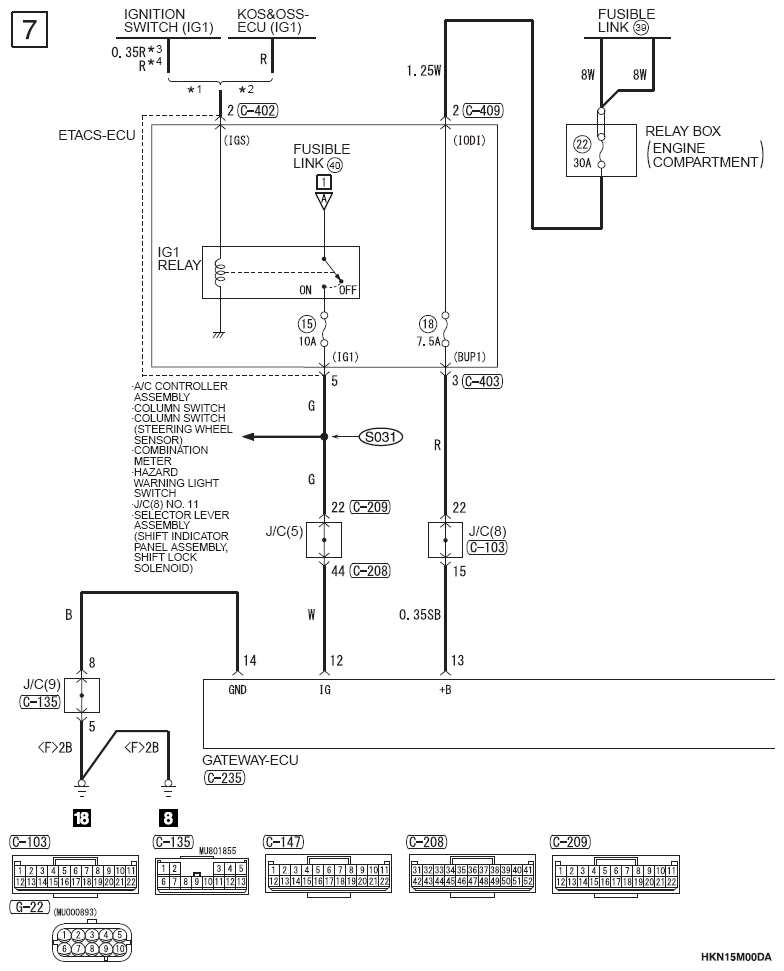

G12651745Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

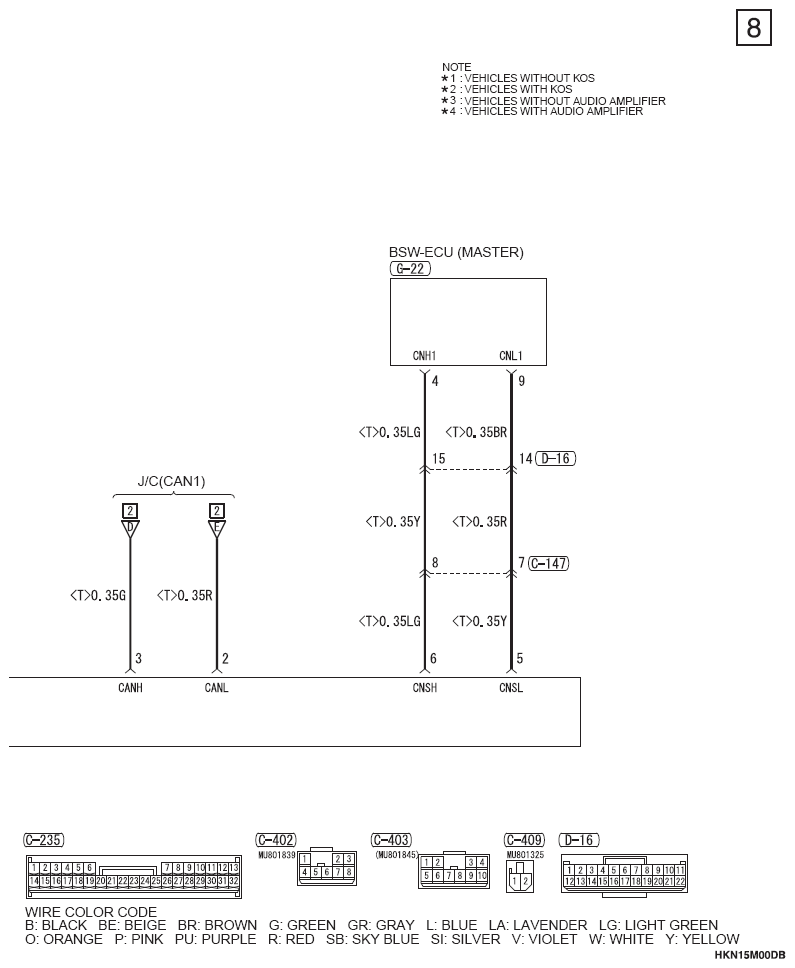

G12651746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
