Cruise Control System

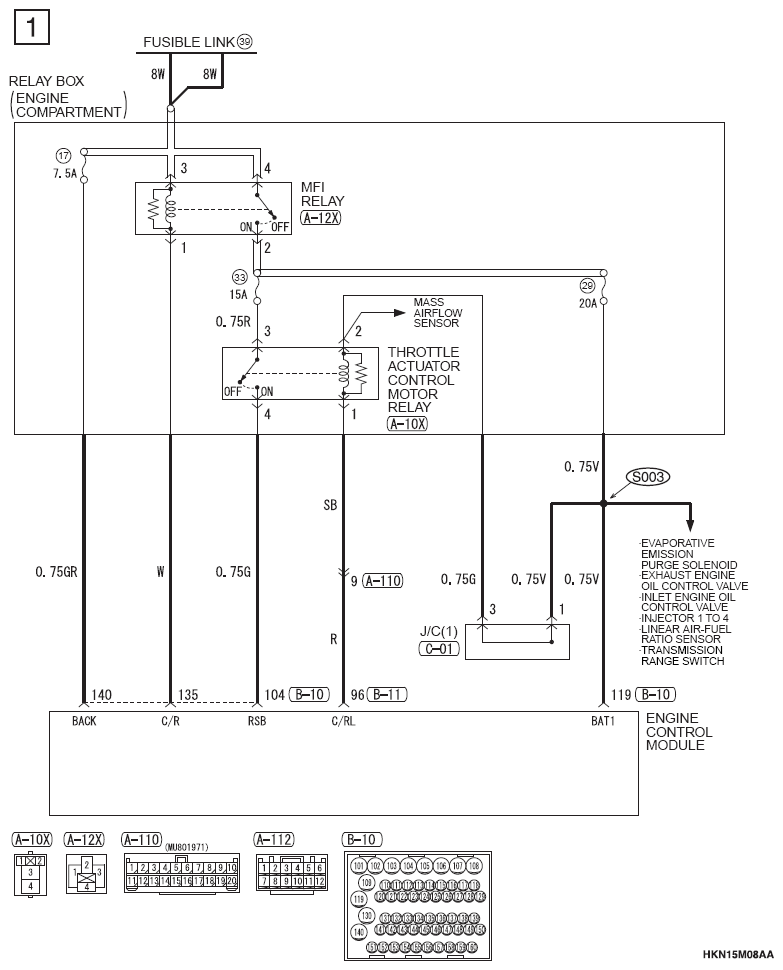

G12651628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

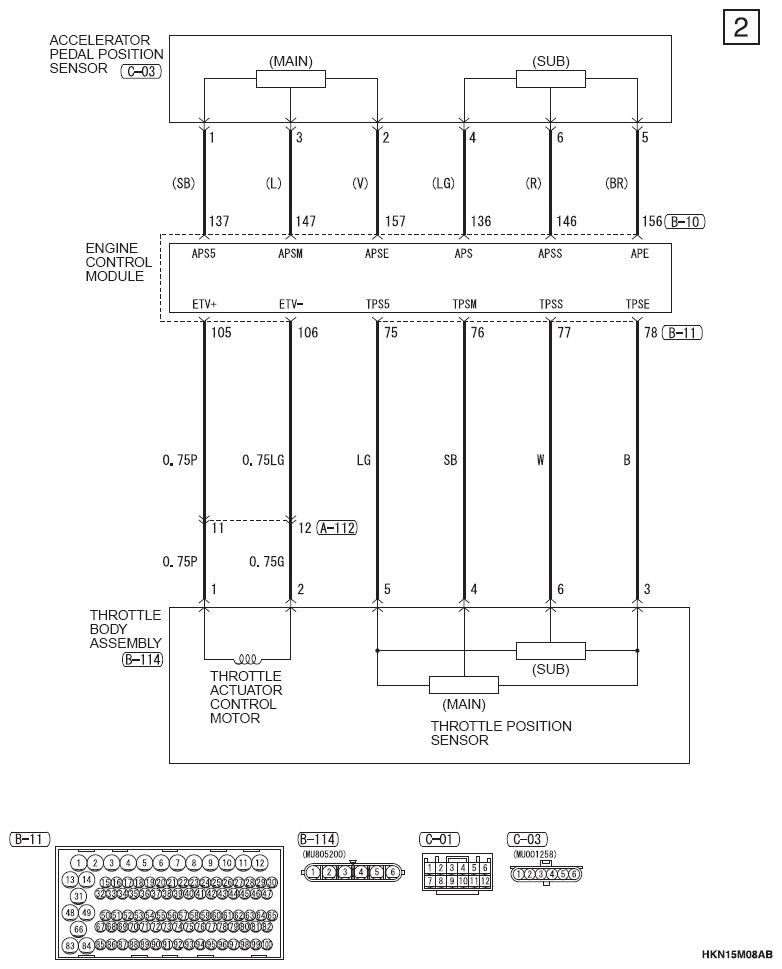

G12651629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

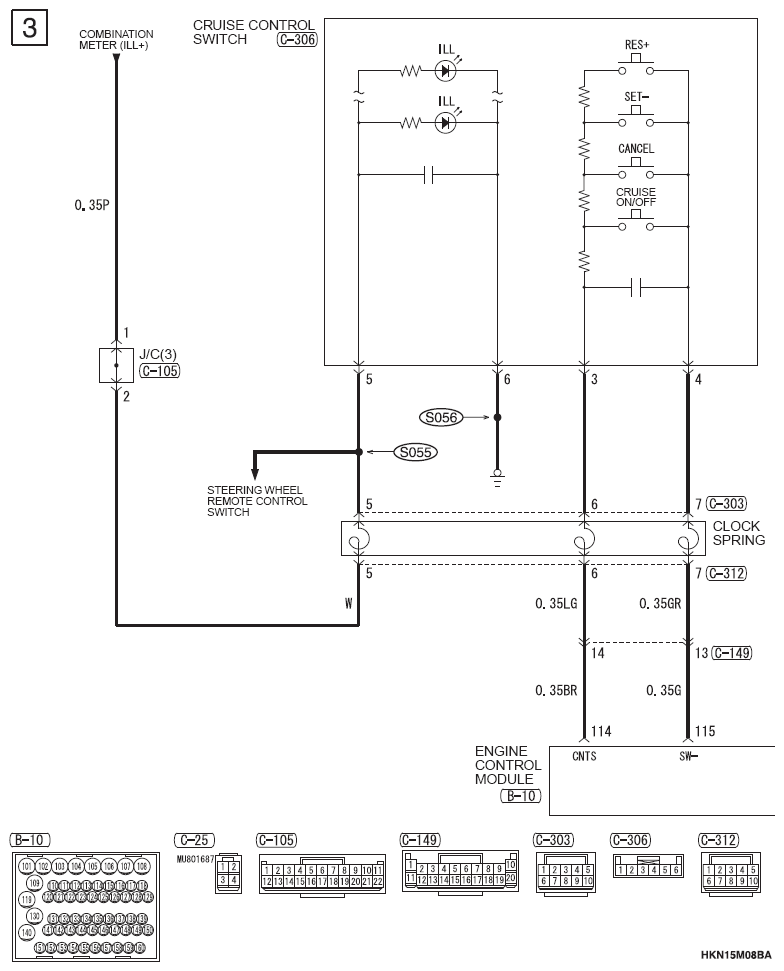

G12651630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

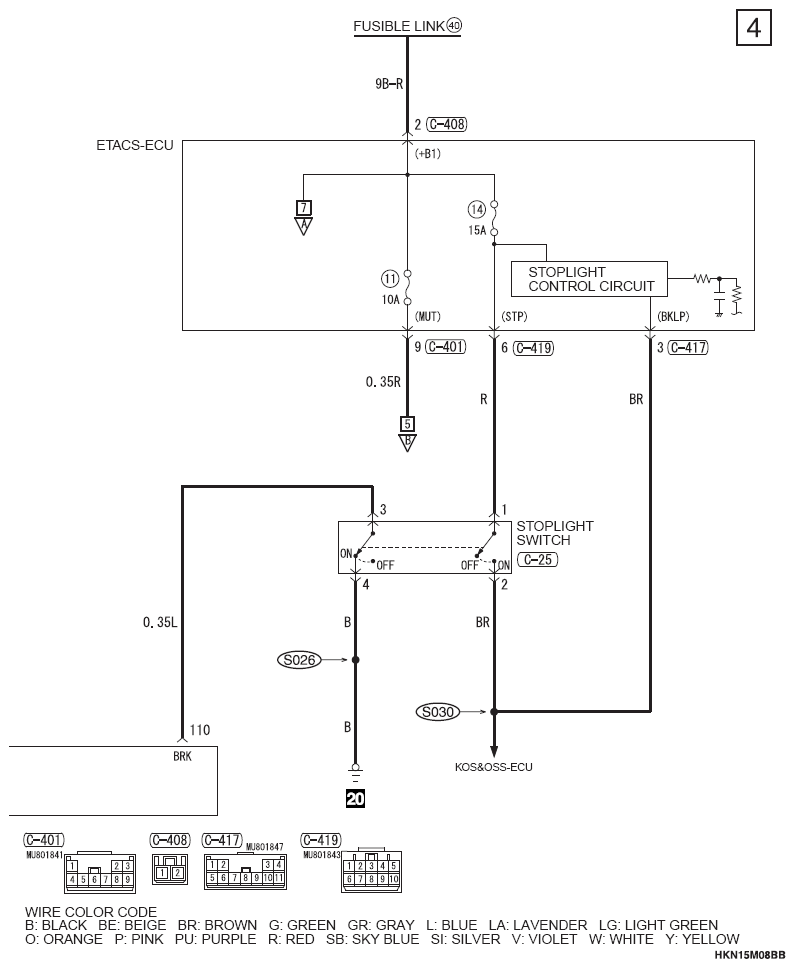

G12651631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

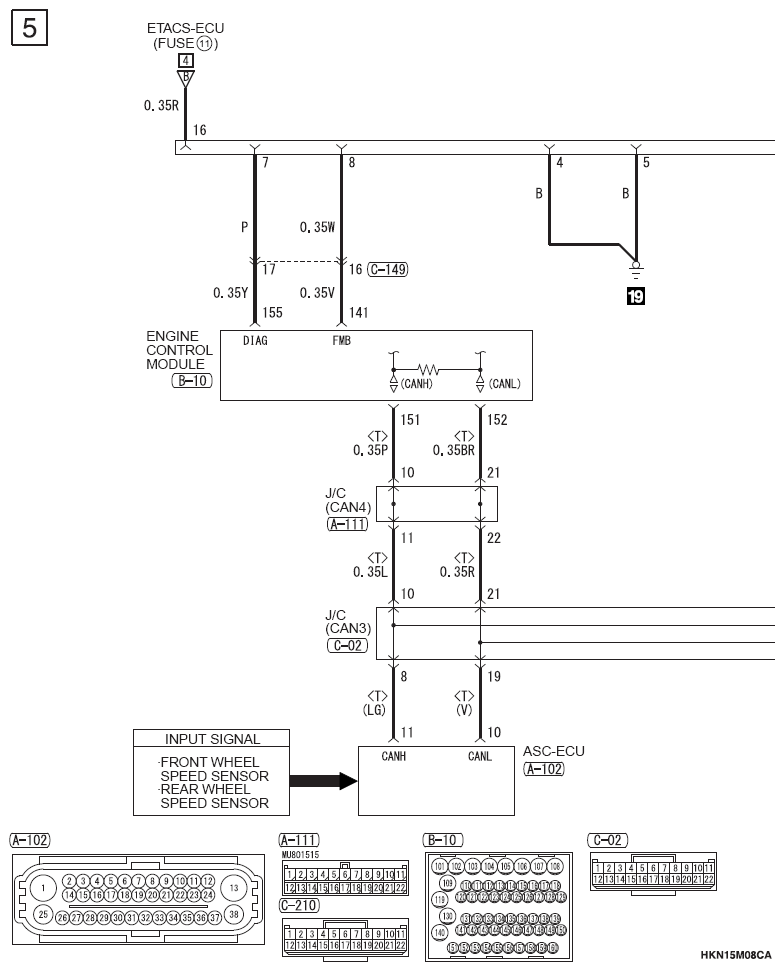

G12651632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

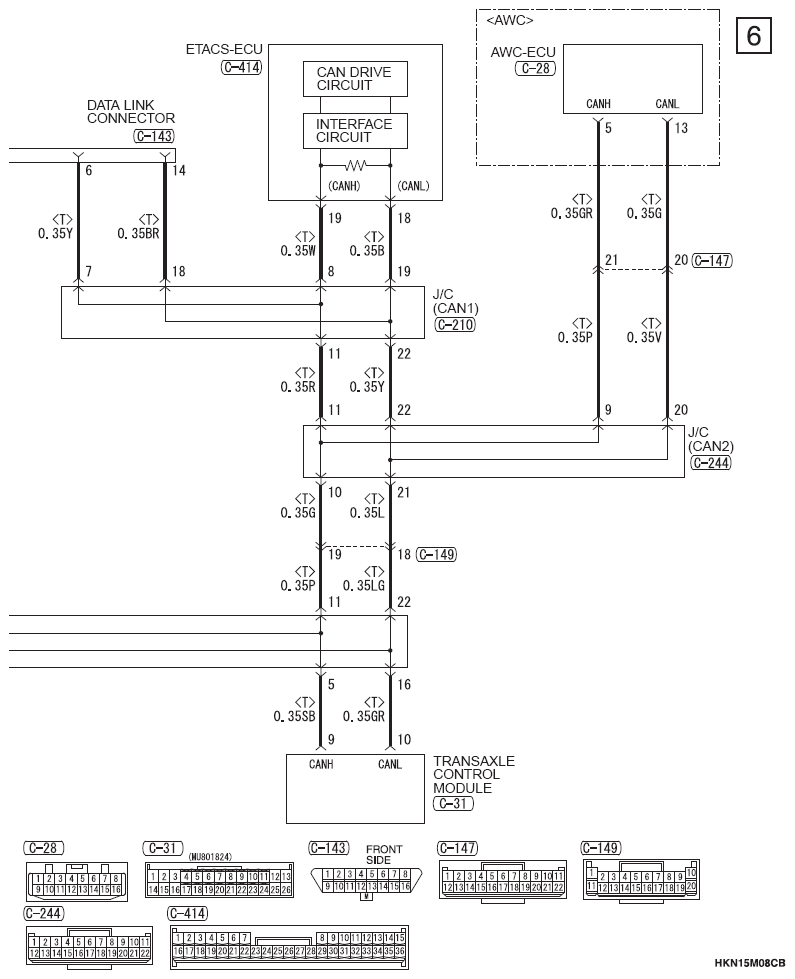

G12651633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

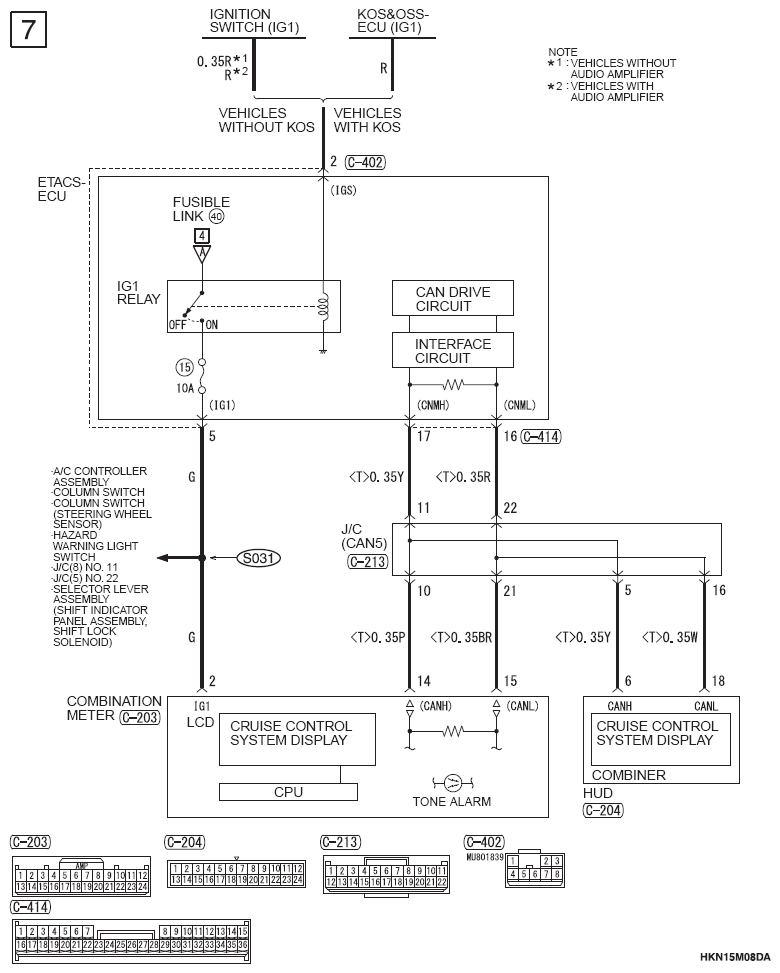

G12651634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
