Headlight Manual Leveling System

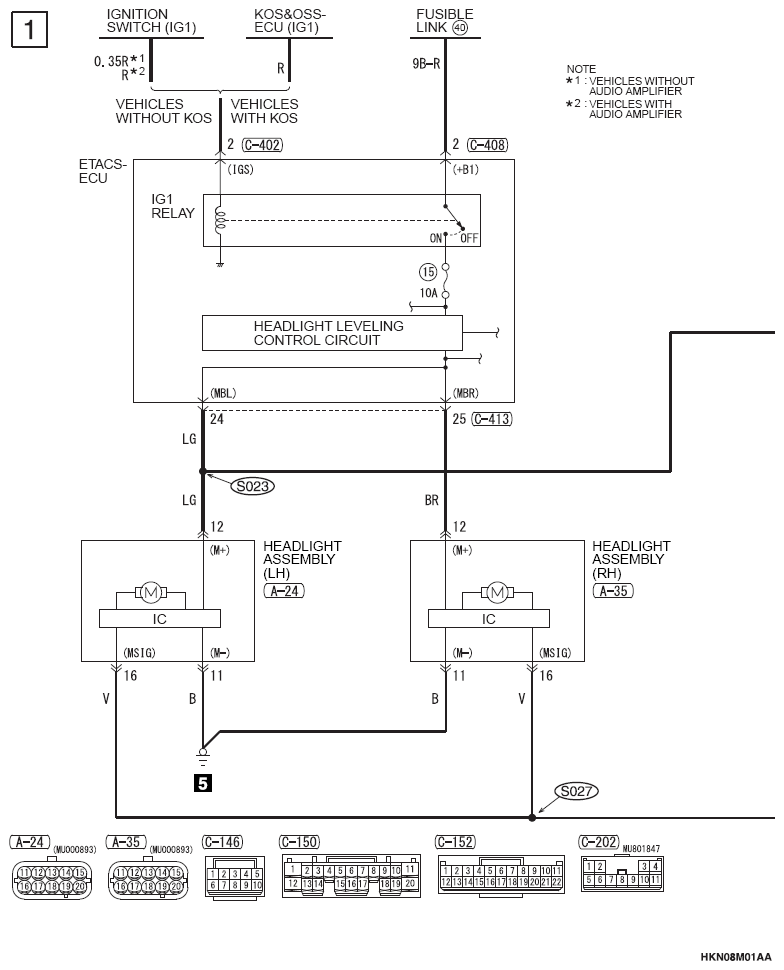

G12651443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

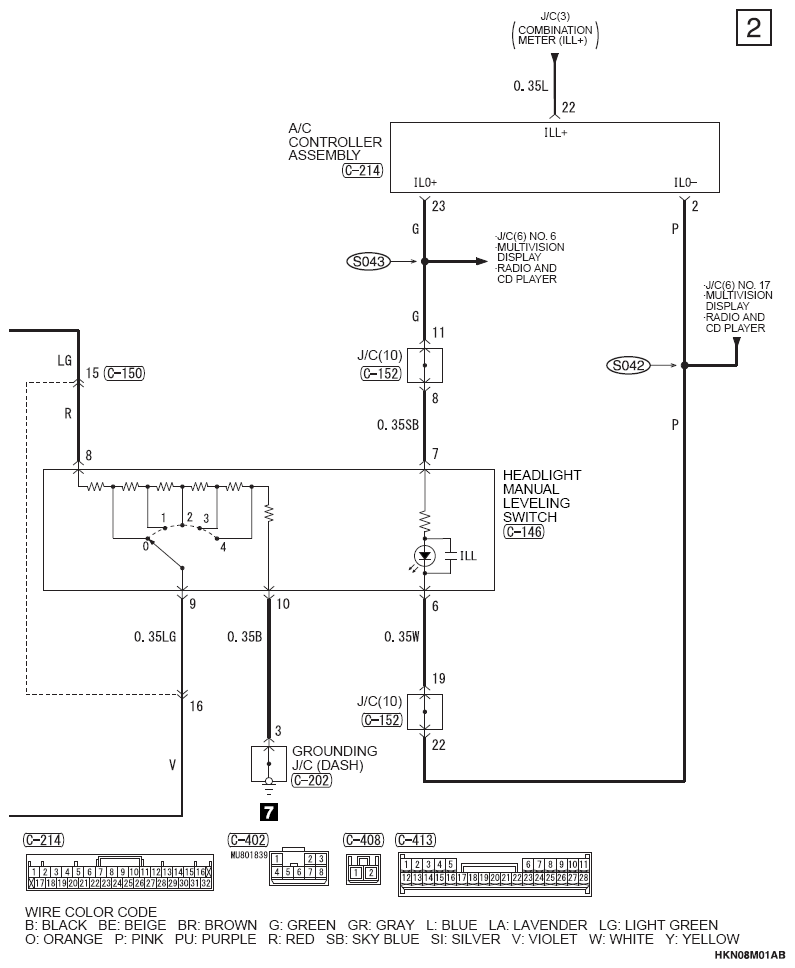

G12651444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
