Ignition System

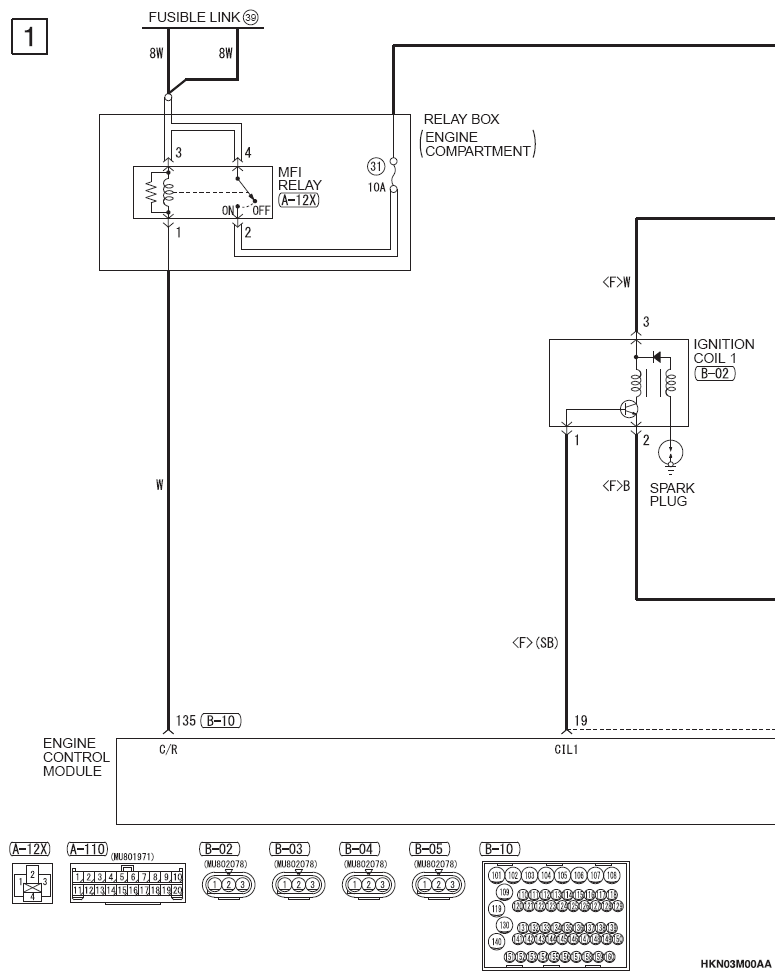

G12651386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

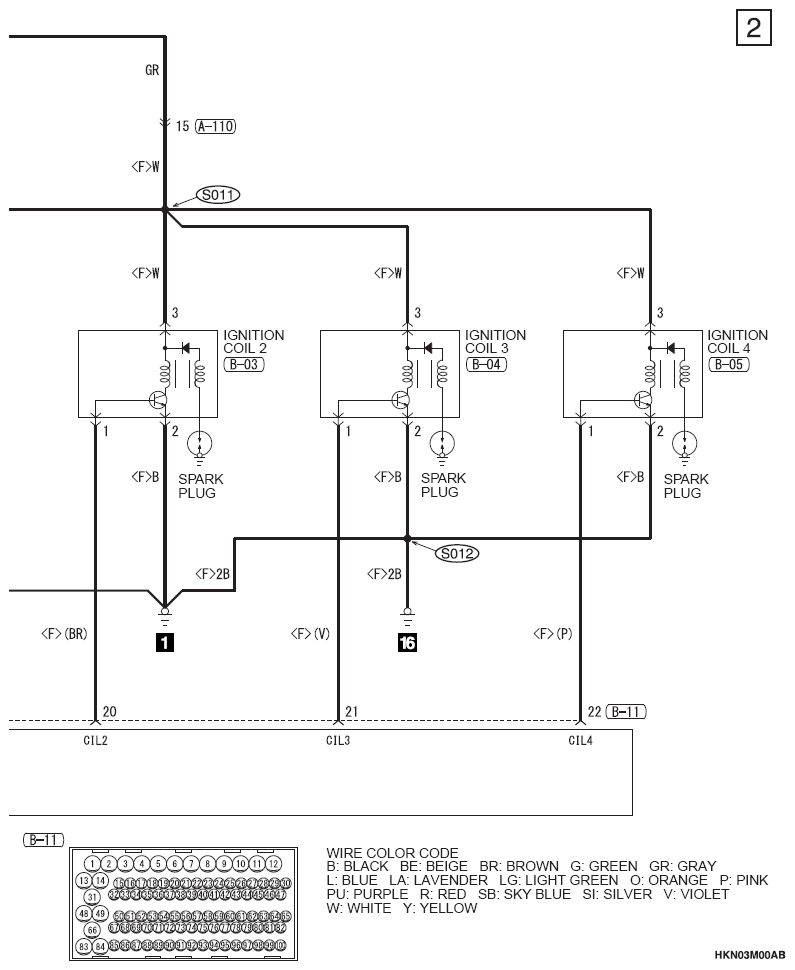

G12651387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

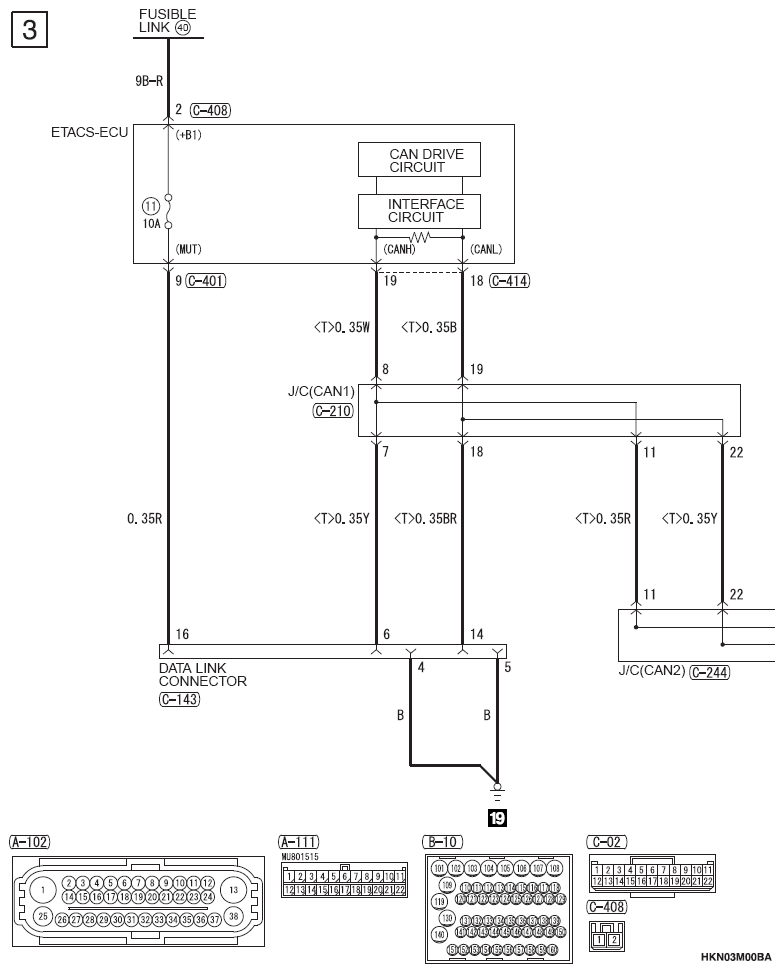

G12651388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

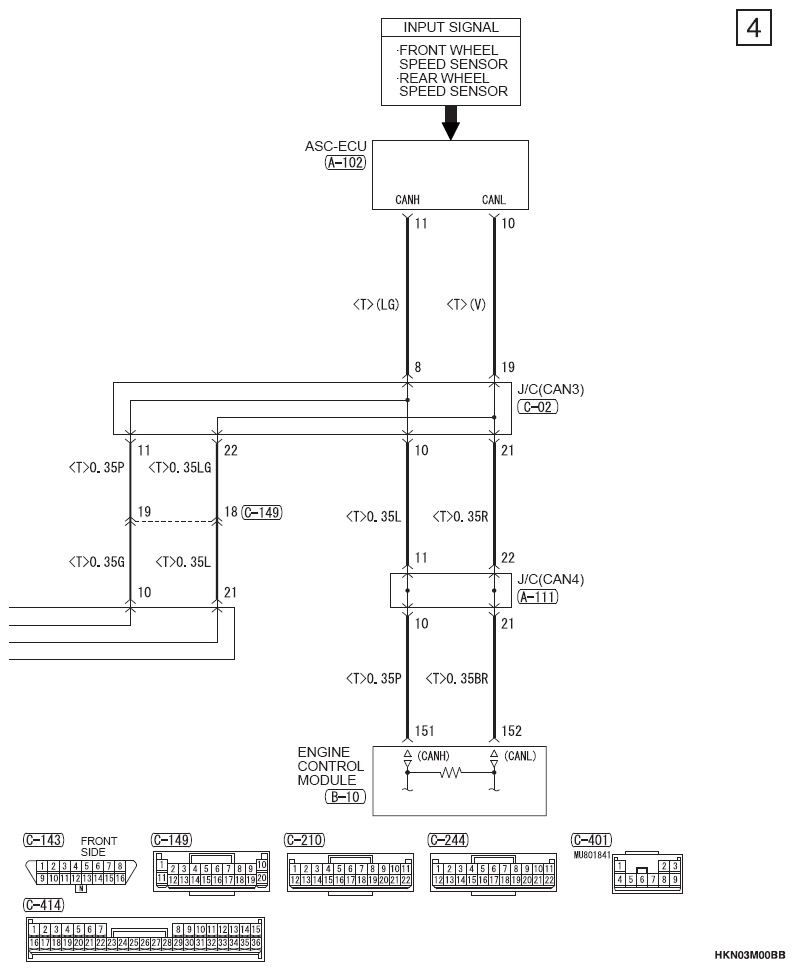

G12651389Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
