Power Windows

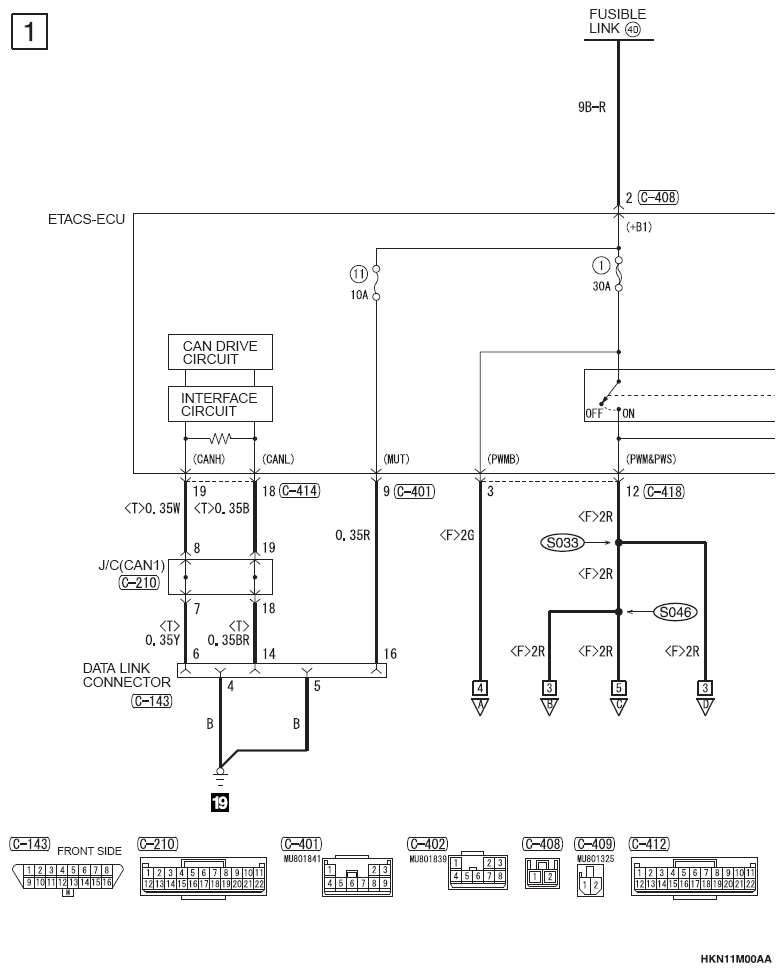

G12651487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

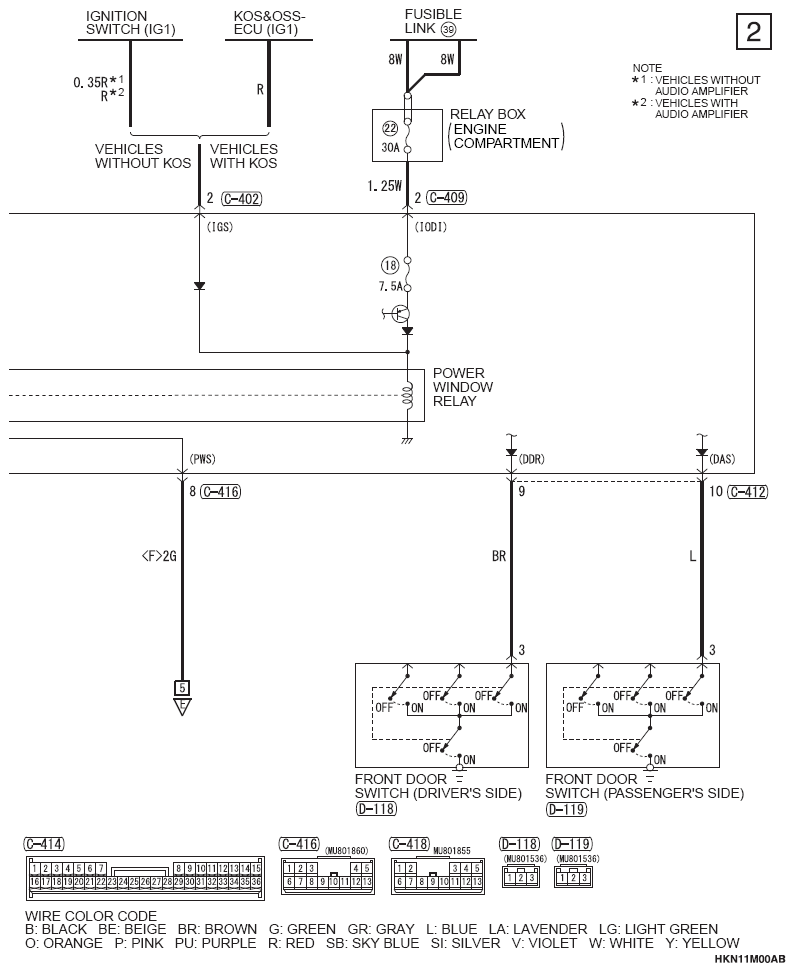

G12651488Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

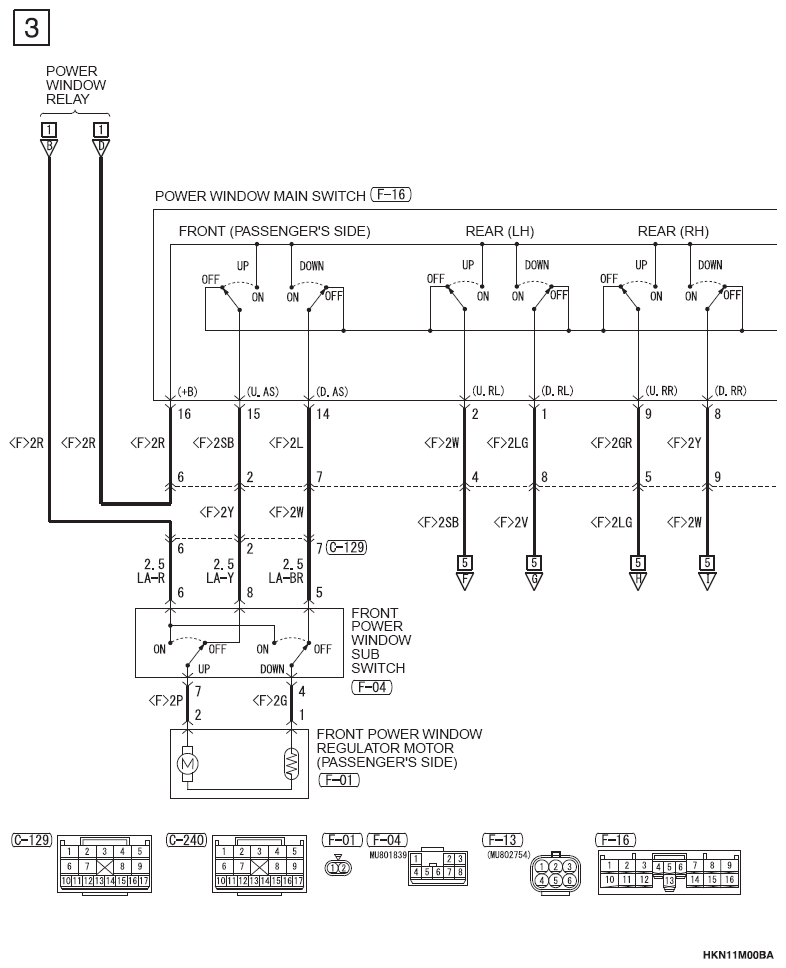

G12651489Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

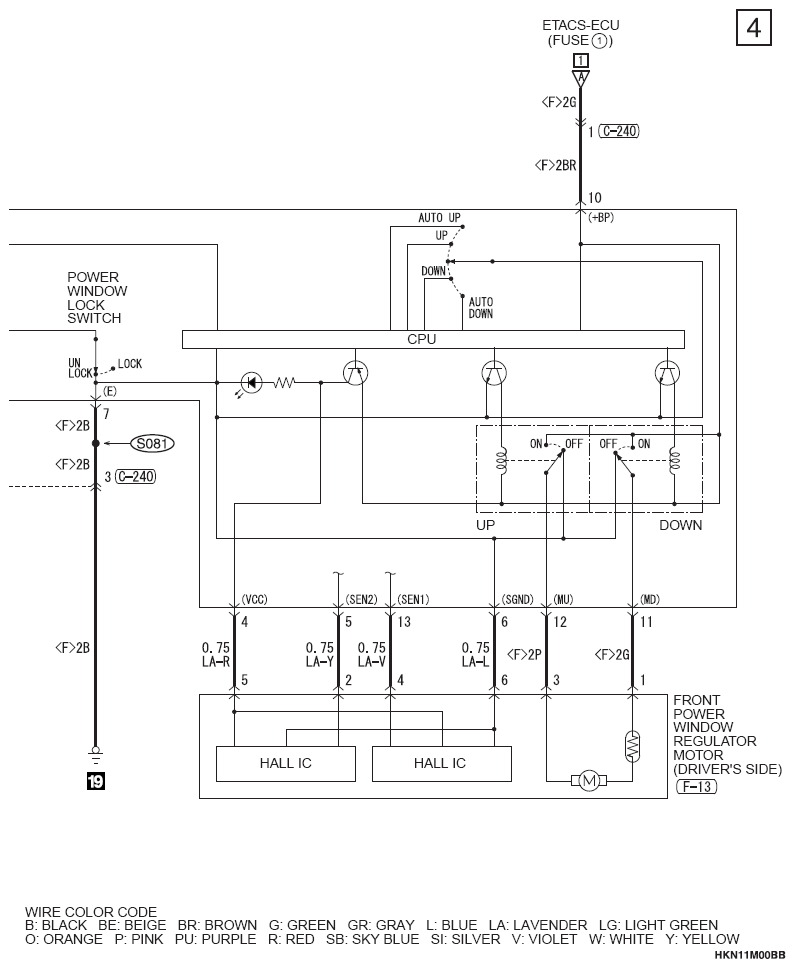

G12651490Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

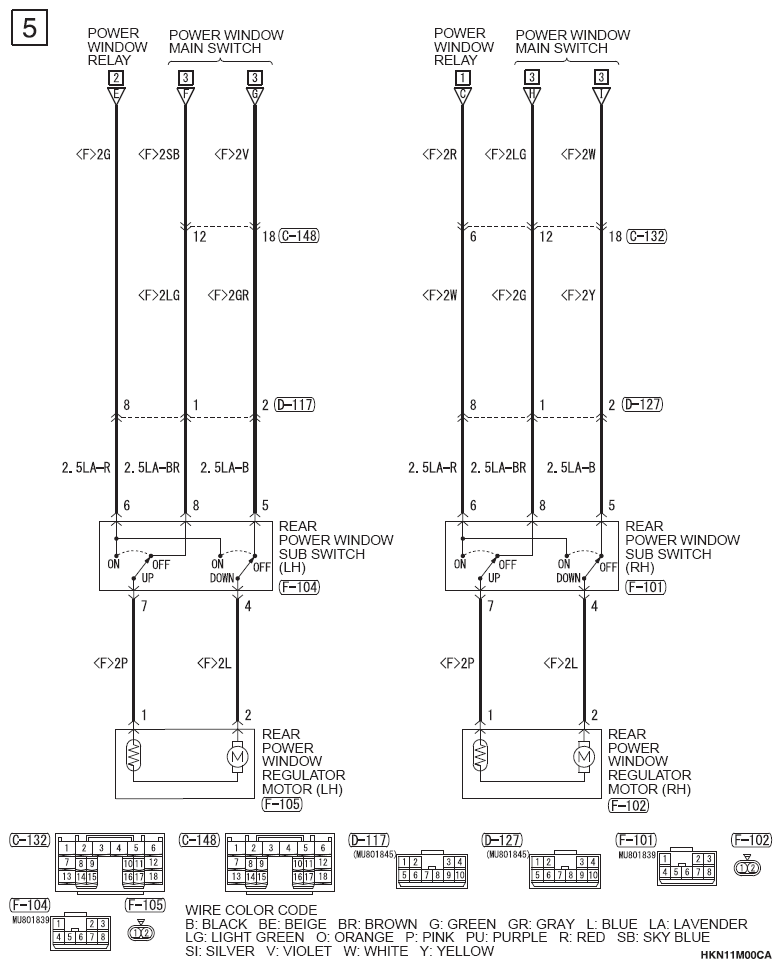

G12651491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
