Rear Window Defogger

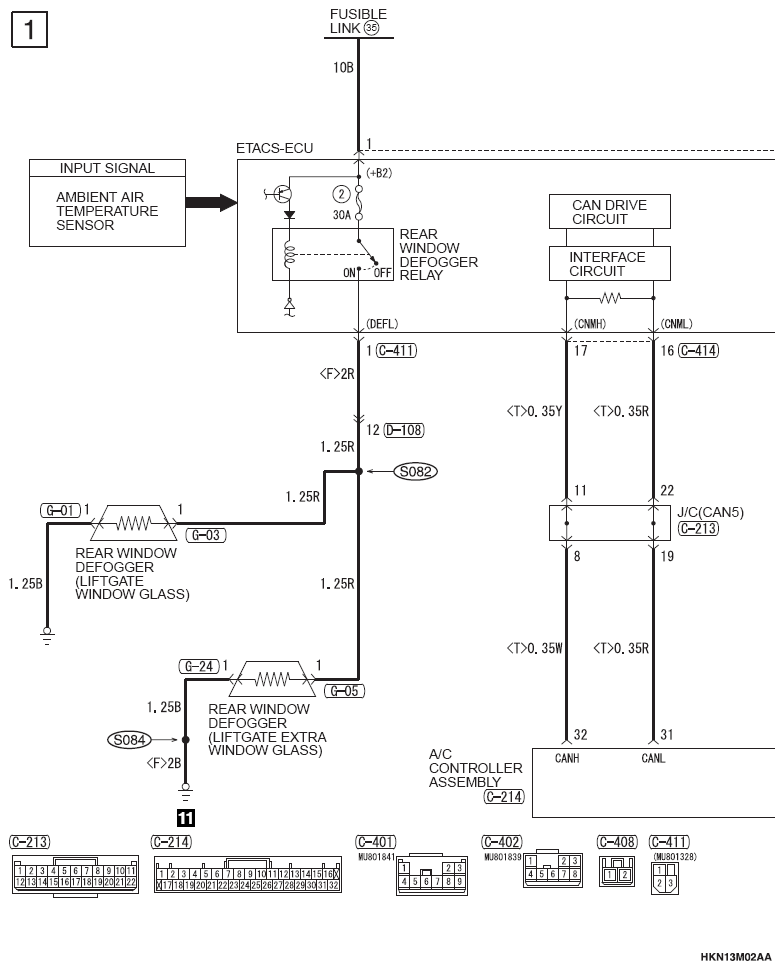

G12651538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

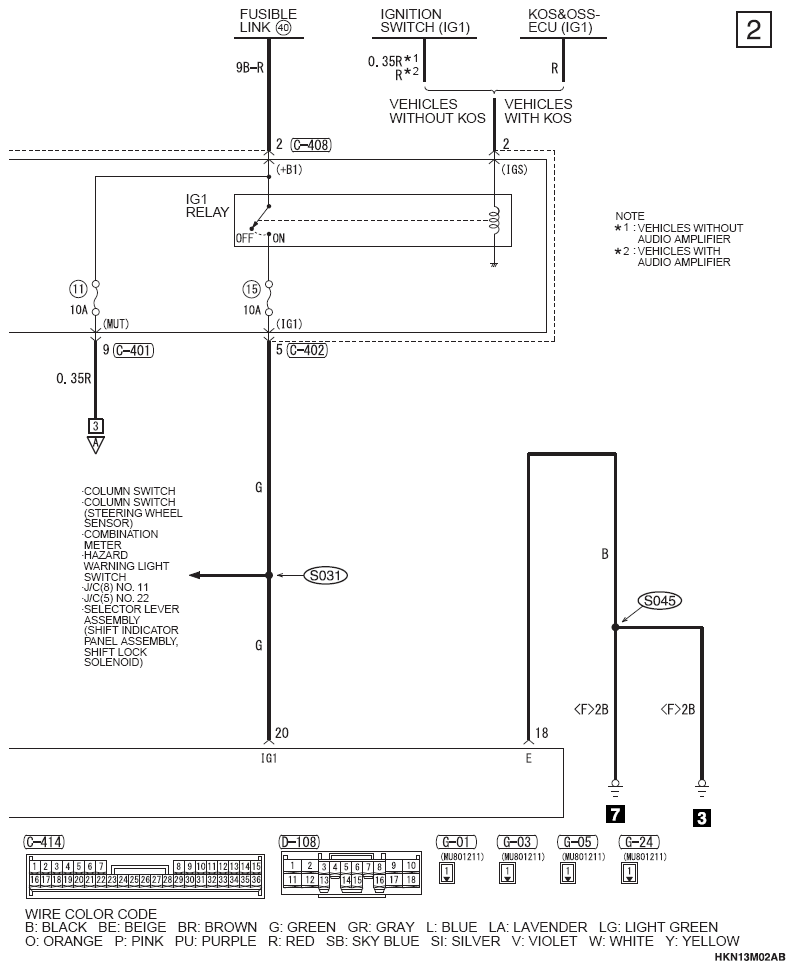

G12651539Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

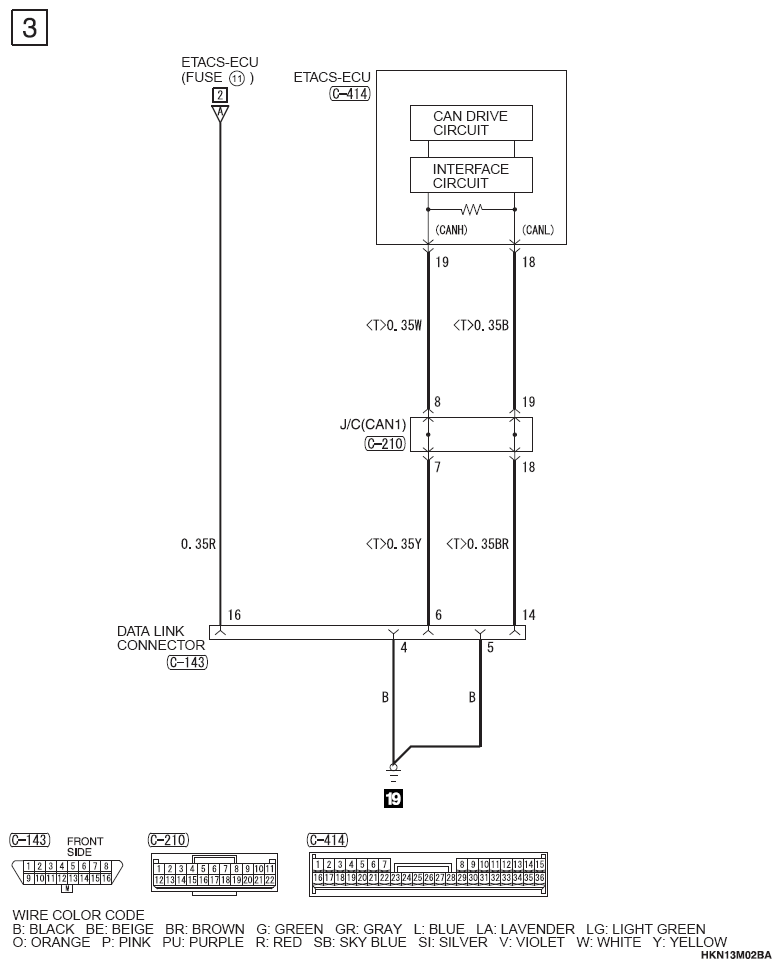

G12651540Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
