Remote Controlled Mirror

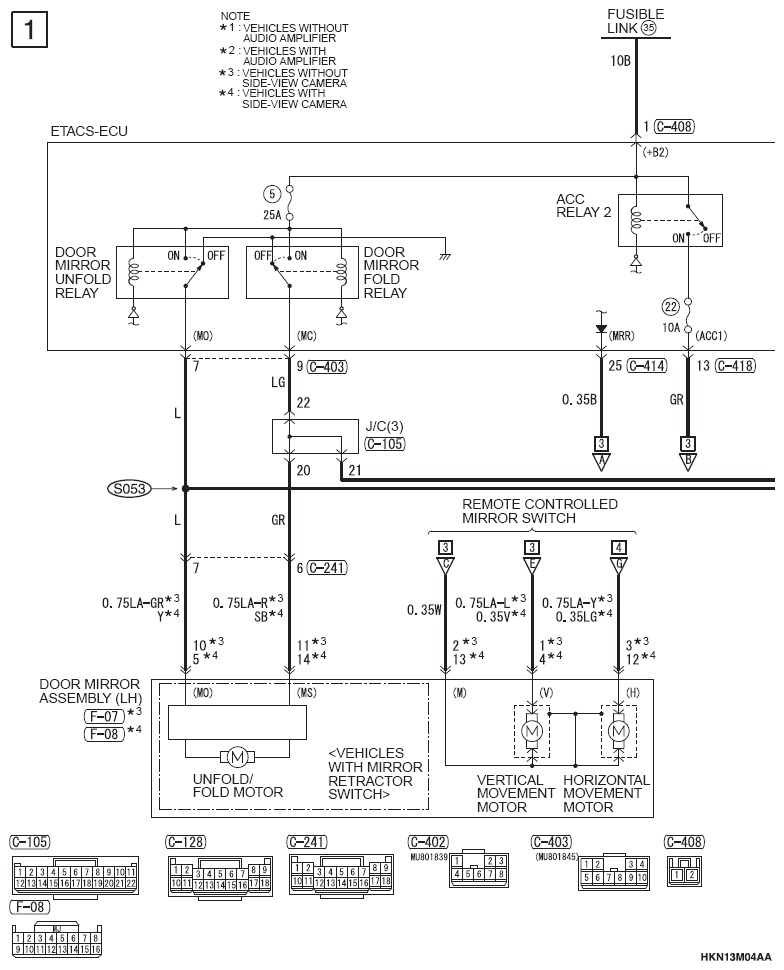

G12651545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

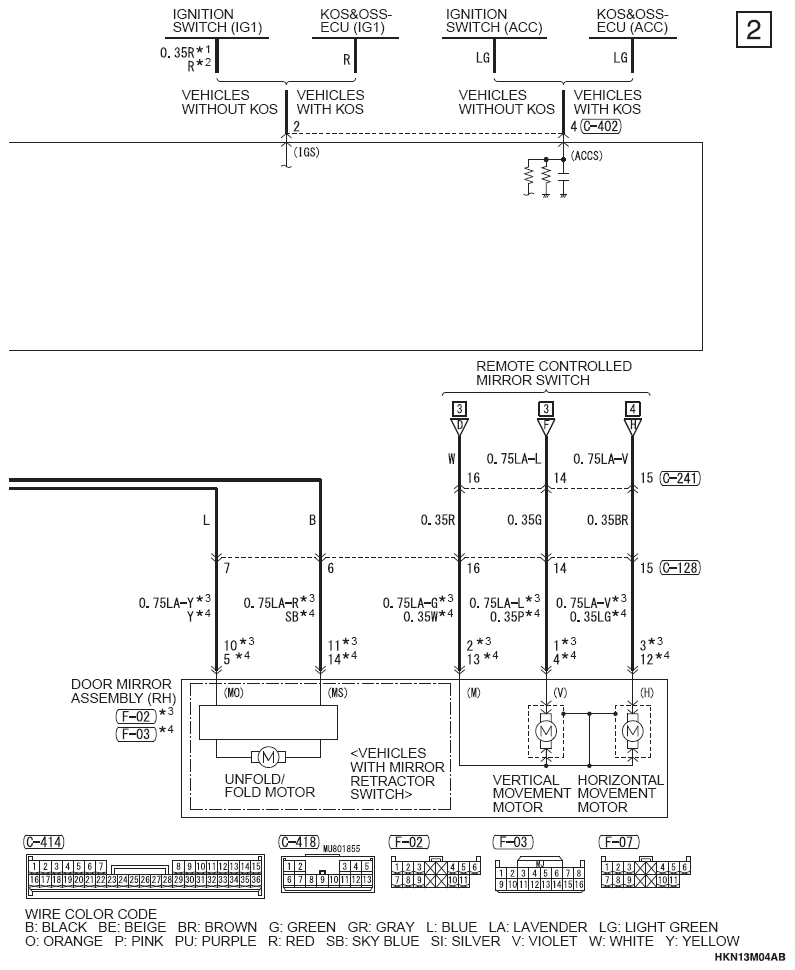

G12651546Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

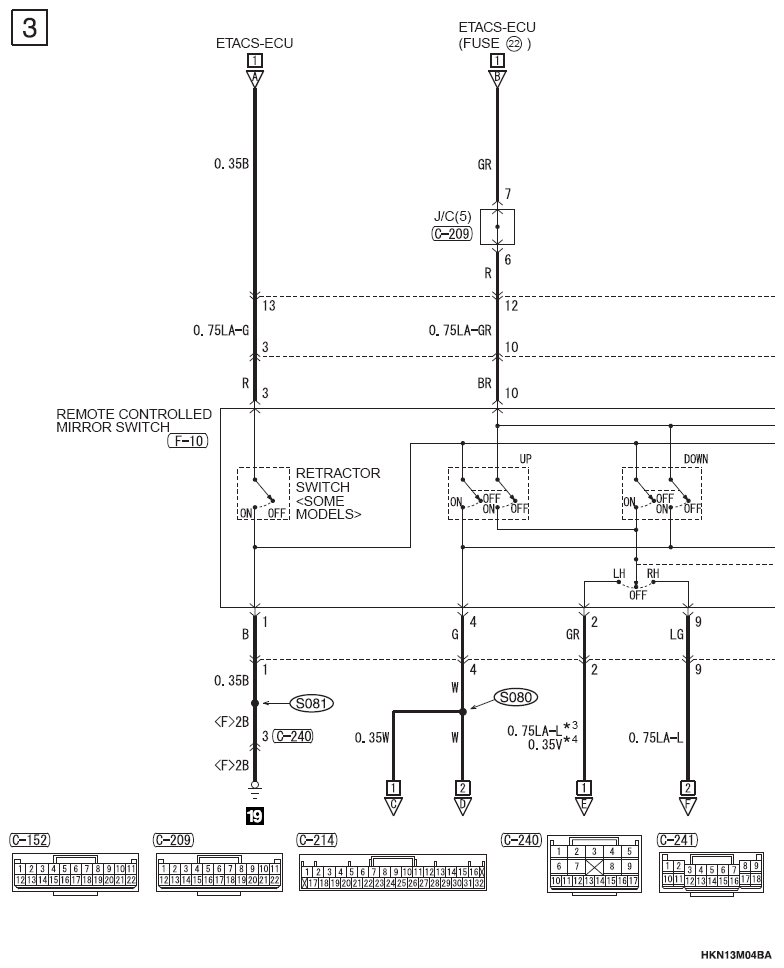

G12651547Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

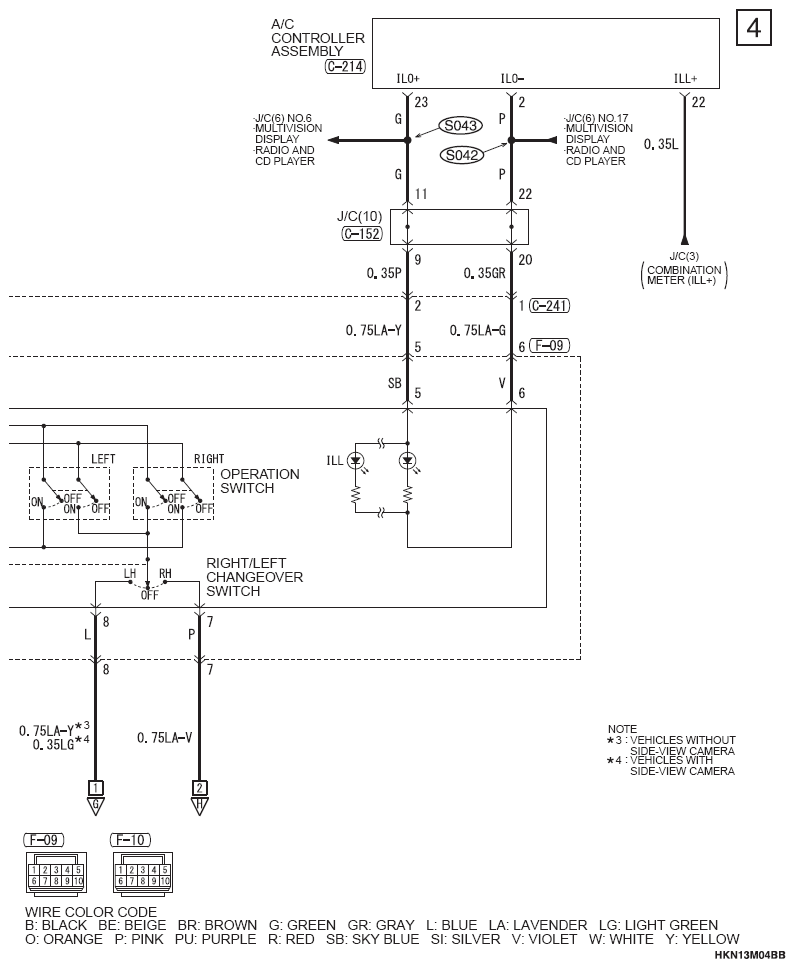

G12651548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

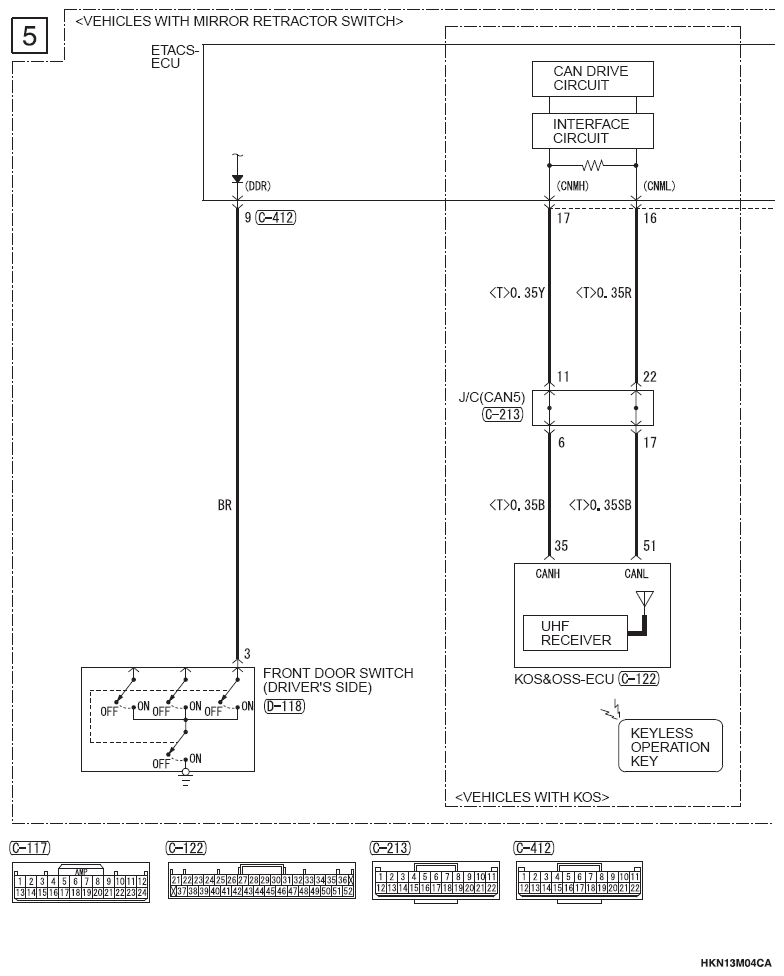

G12651549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

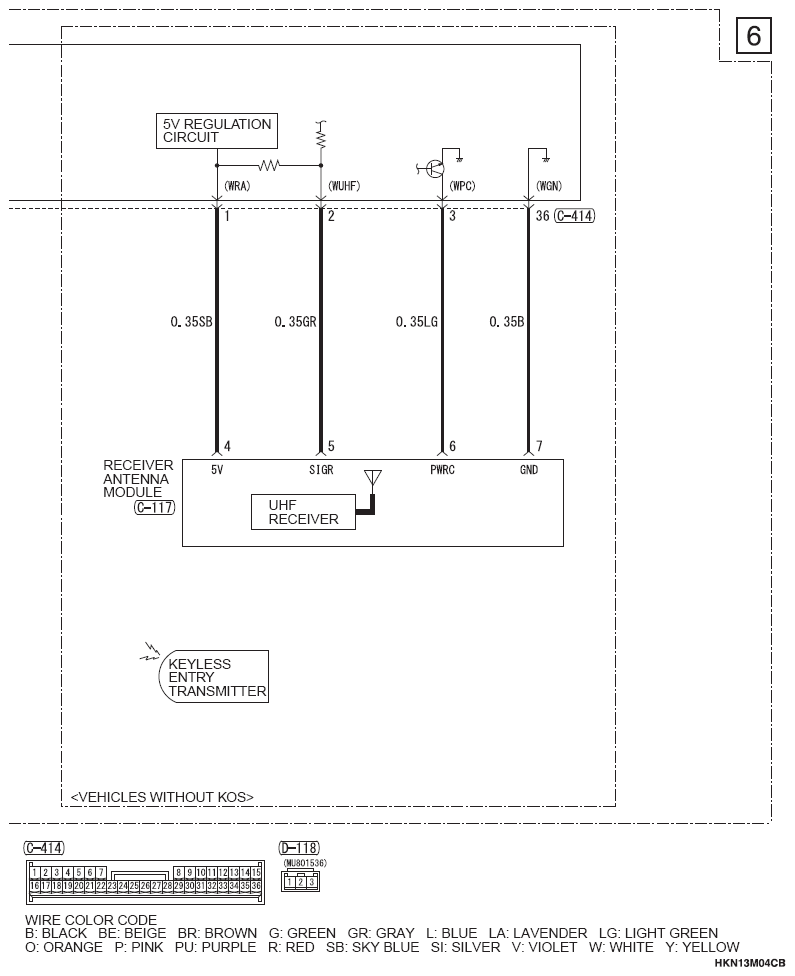

G12651550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

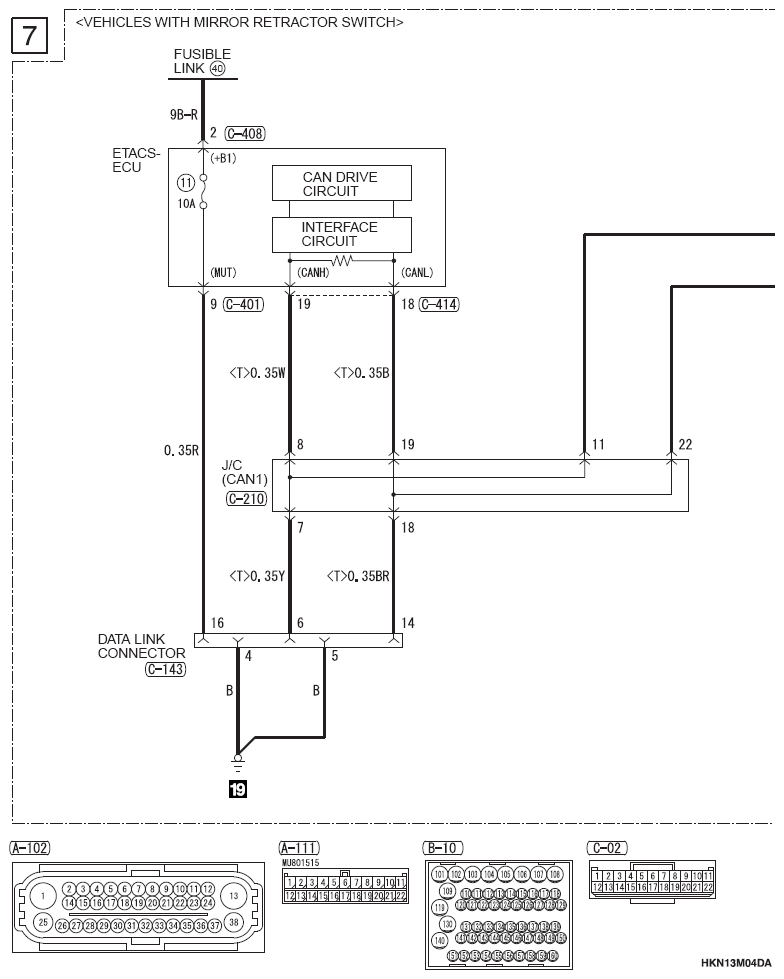

G12651551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G12651552Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
