REMOVAL AND INSTALLATION <3.0L Engine>: Notes
Pre-removal Operation
Engine Coolant Draining (Refer to On-vehicle Service -
ENGINE COOLANT CHANGE
).
Battery and Battery Tray Removal (Refer to
BATTERY
).
Post-installation Operation
Battery and Battery Tray Installation (Refer to
BATTERY
).
Engine Coolant Refilling (Refer to On-vehicle Service -
ENGINE COOLANT CHANGE
).

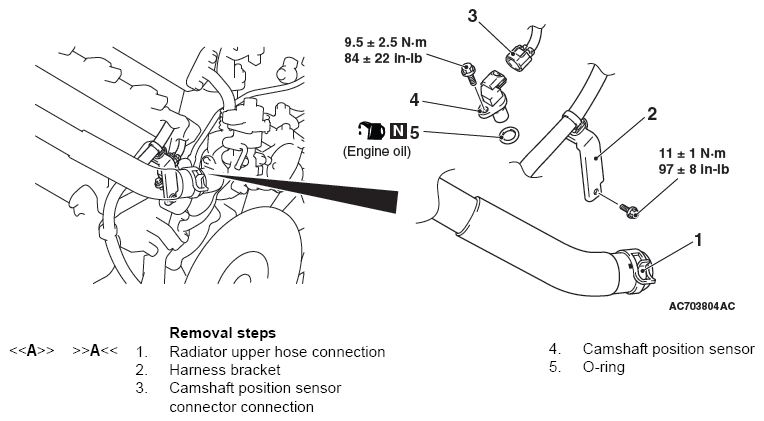

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification (3.0 L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
