Disassembly And Reassembly: Notes

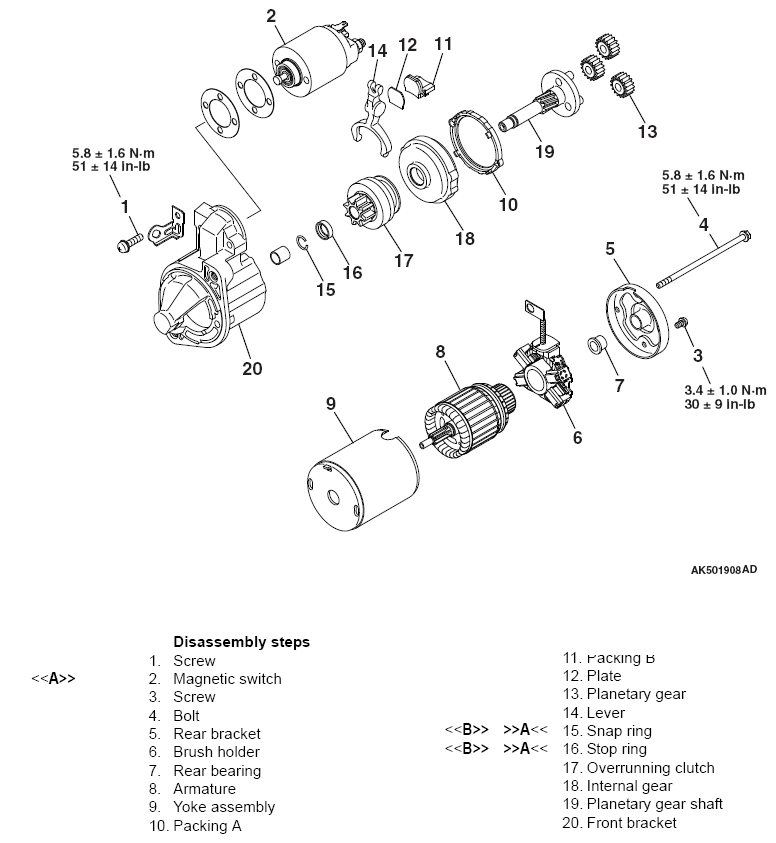

Fig 1: Disassembling/Reassembling Starter Motor Assembly Inspection Components Location With Torque Specification
G13088746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
