Removal And Installation

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.

CAUTION:

To remove and installation the SRS-ECU, refer to - SERVICE PRECAUTIONS and SRS CONTROL UNIT .

Post-installation operation

Shift lock mechanism check (Refer to SHIFT LOCK MECHANISM CHECK .)
Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK .)
Transmission range switch and control cable adjustment (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)

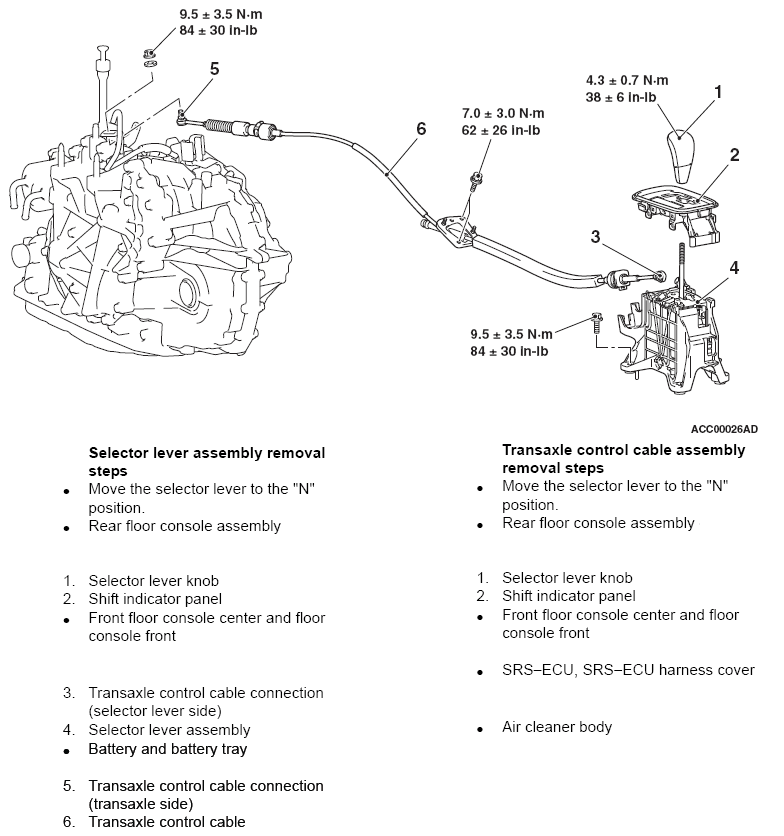

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
