Removal And Installation: Notes

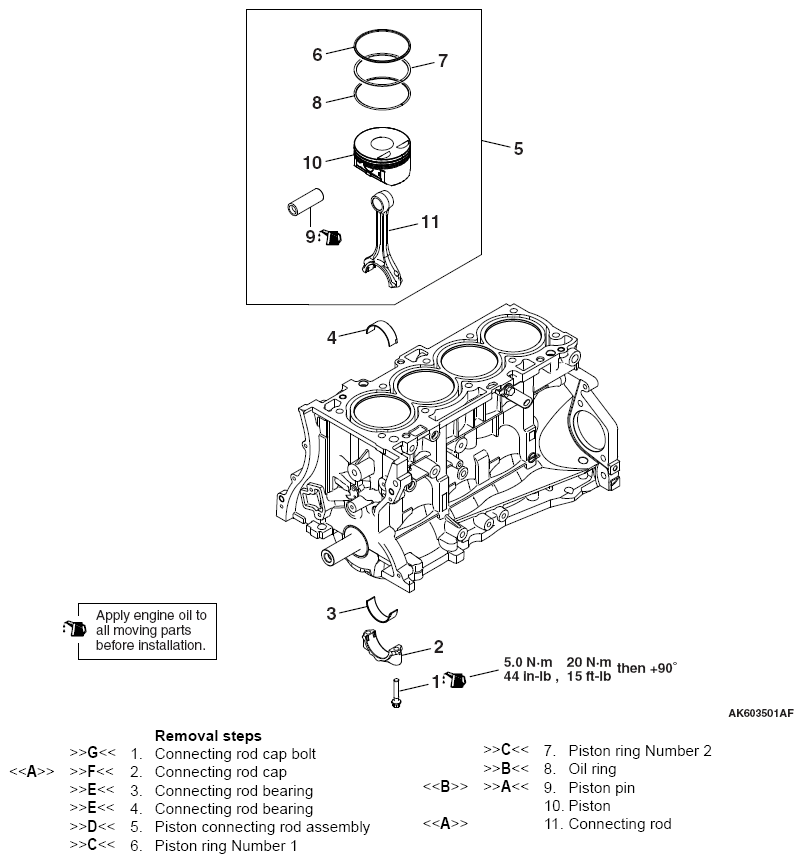

Fig 1: Piston And Connecting Rod Components With Torque Specification
G12664727Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
