Removal And Installation: Notes
Pre-removal and post-installation operation
- Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .)
- Front pillar trim removal and installation (Refer to INTERIOR TRIM .)
- Inside rear view mirror removal and installation (Refer to INSIDE REAR VIEW MIRROR )
- Lighting control sensor removal and installation <Vehicles with lighting control sensor> (Refer to HEADLIGHT .)
NOTE:

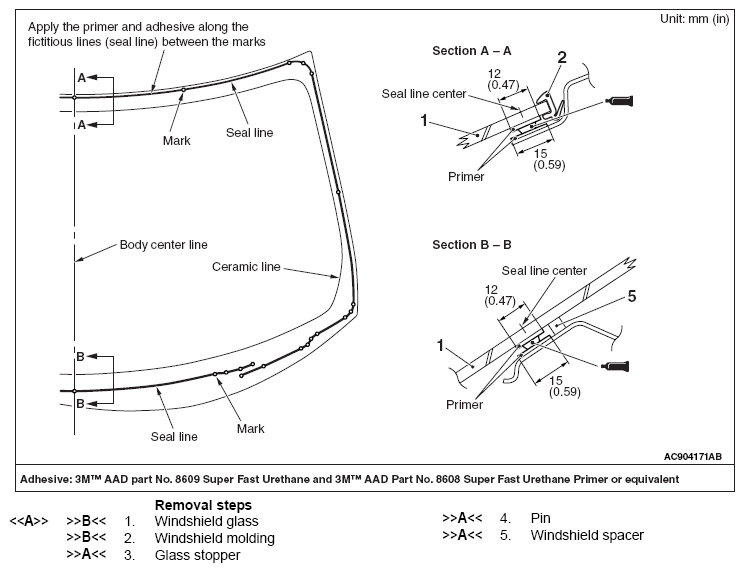

Do not apply double-sided tapes at the upper corner ends of part 2 - 15 mm (0.59 in).
