Removal And Installation
Pre-removal Operation
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to
UNDER COVER
).
Generator and Others Belt Removal (Refer to
CRANKSHAFT PULLEY
).
Post-installation Operation
Generator and Others Belt Installation (Refer to
CRANKSHAFT PULLEY
).
Generator and Others Belt Tension Check (Refer to
GENERATOR AND OTHERS BELT TENSION CHECK
).
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to
UNDER COVER
).

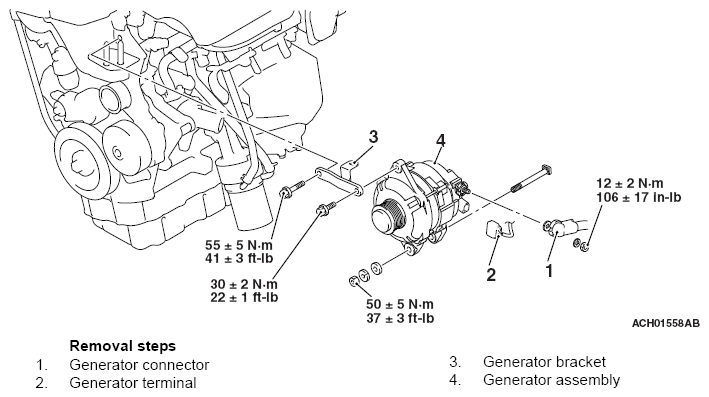

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
