Electrical Component Locations: Grounding

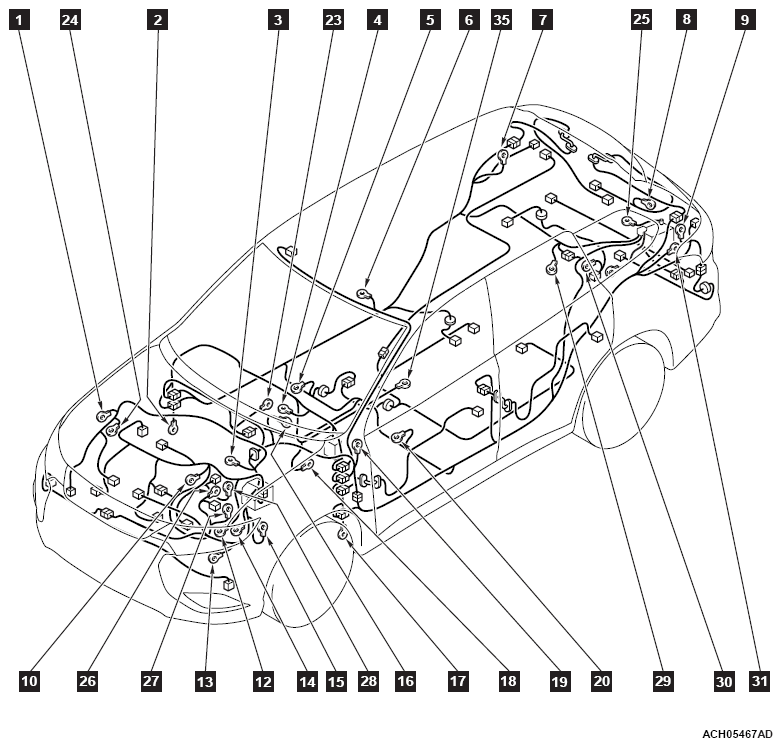

G13504259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

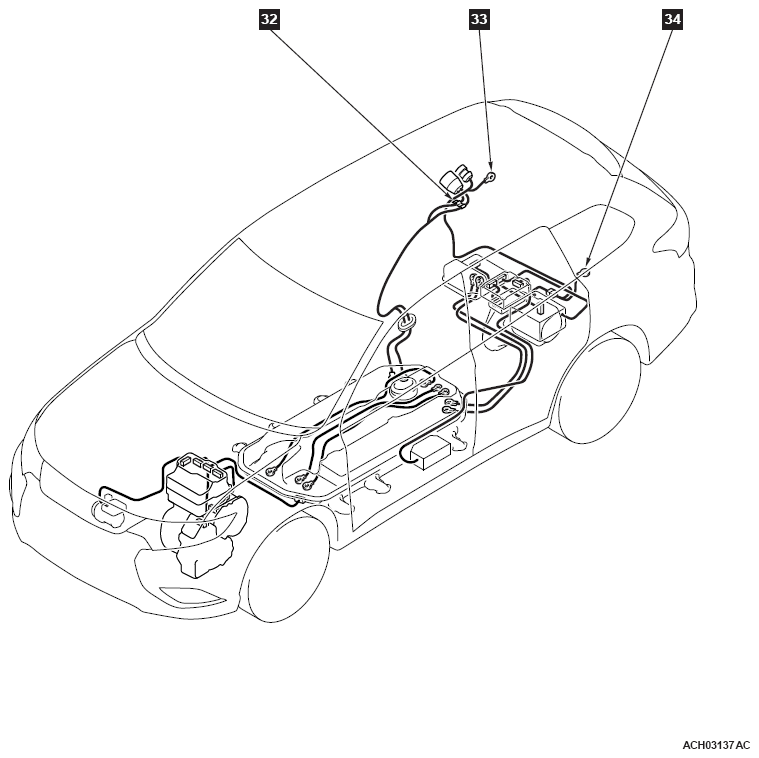

G13504260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: 1 to 34 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

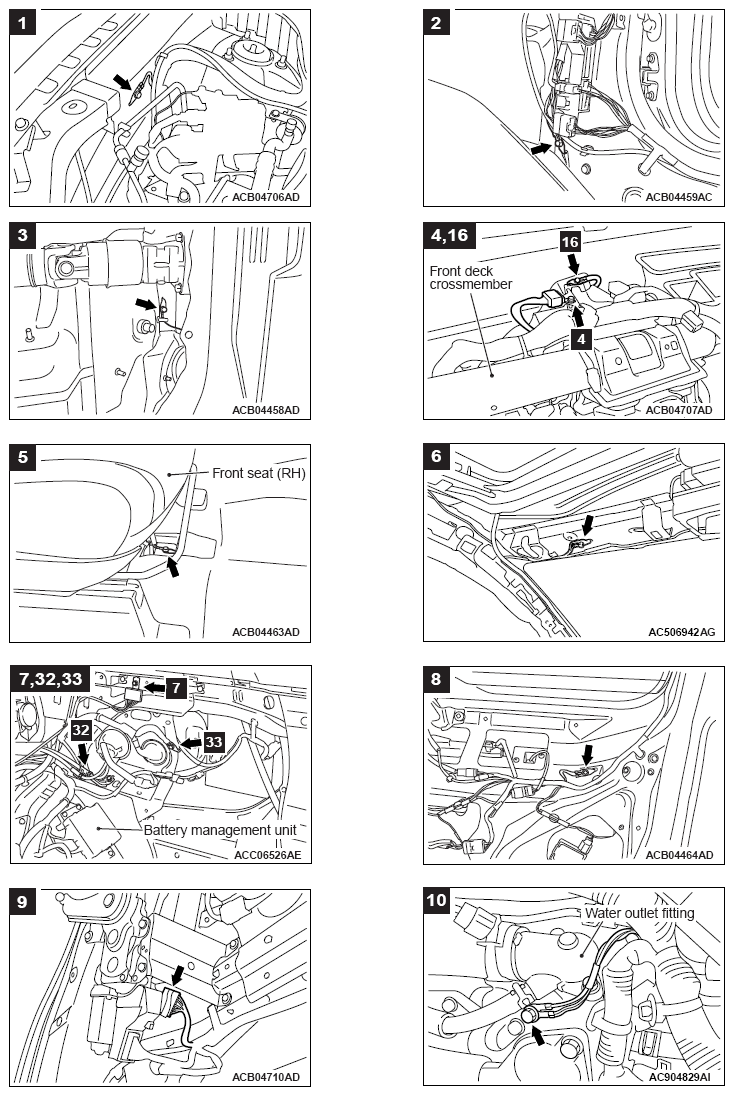

G13504261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

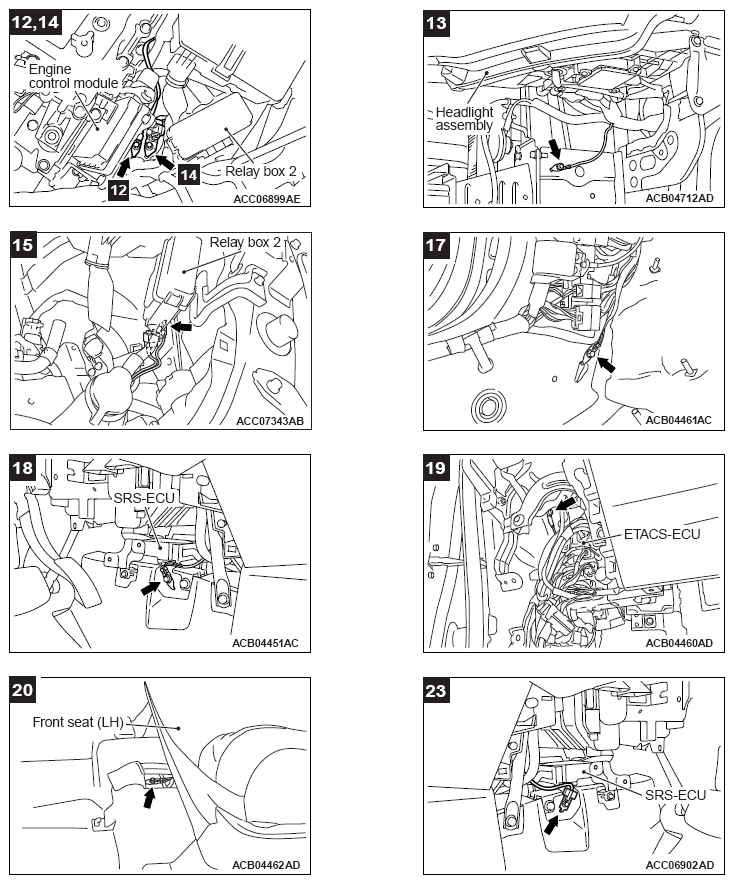

G13504262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

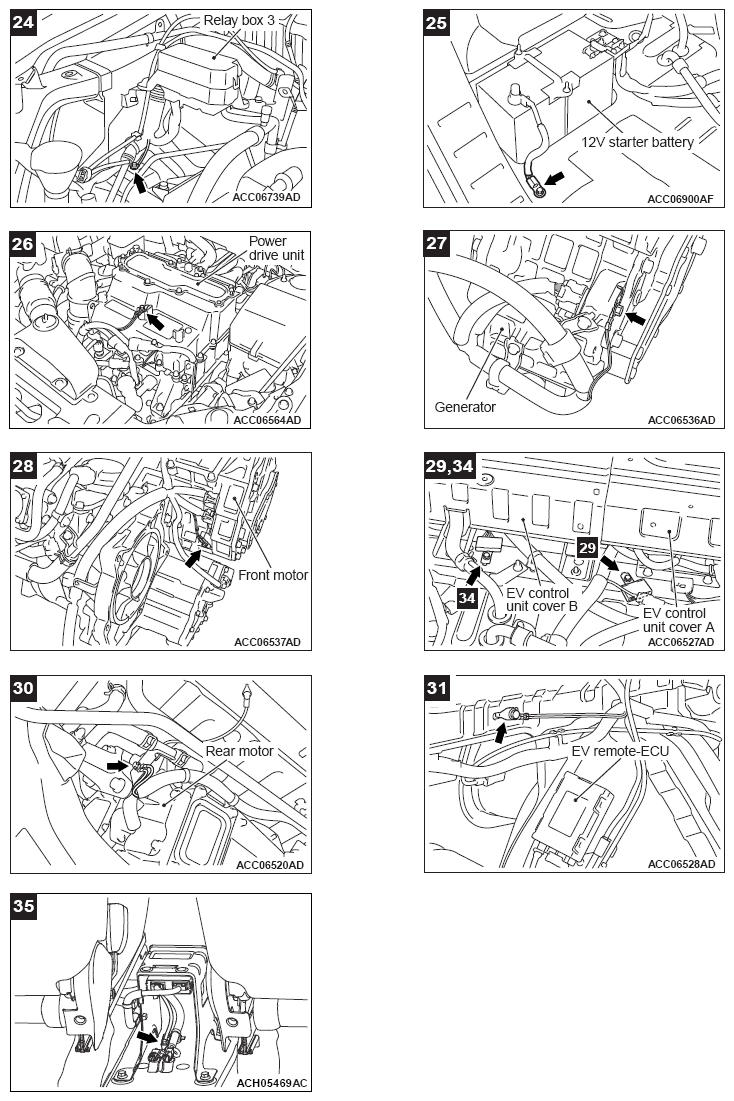

G13504263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
